CipherLab 9700 Reference Manual

159
Chapte
r
5 More Applications

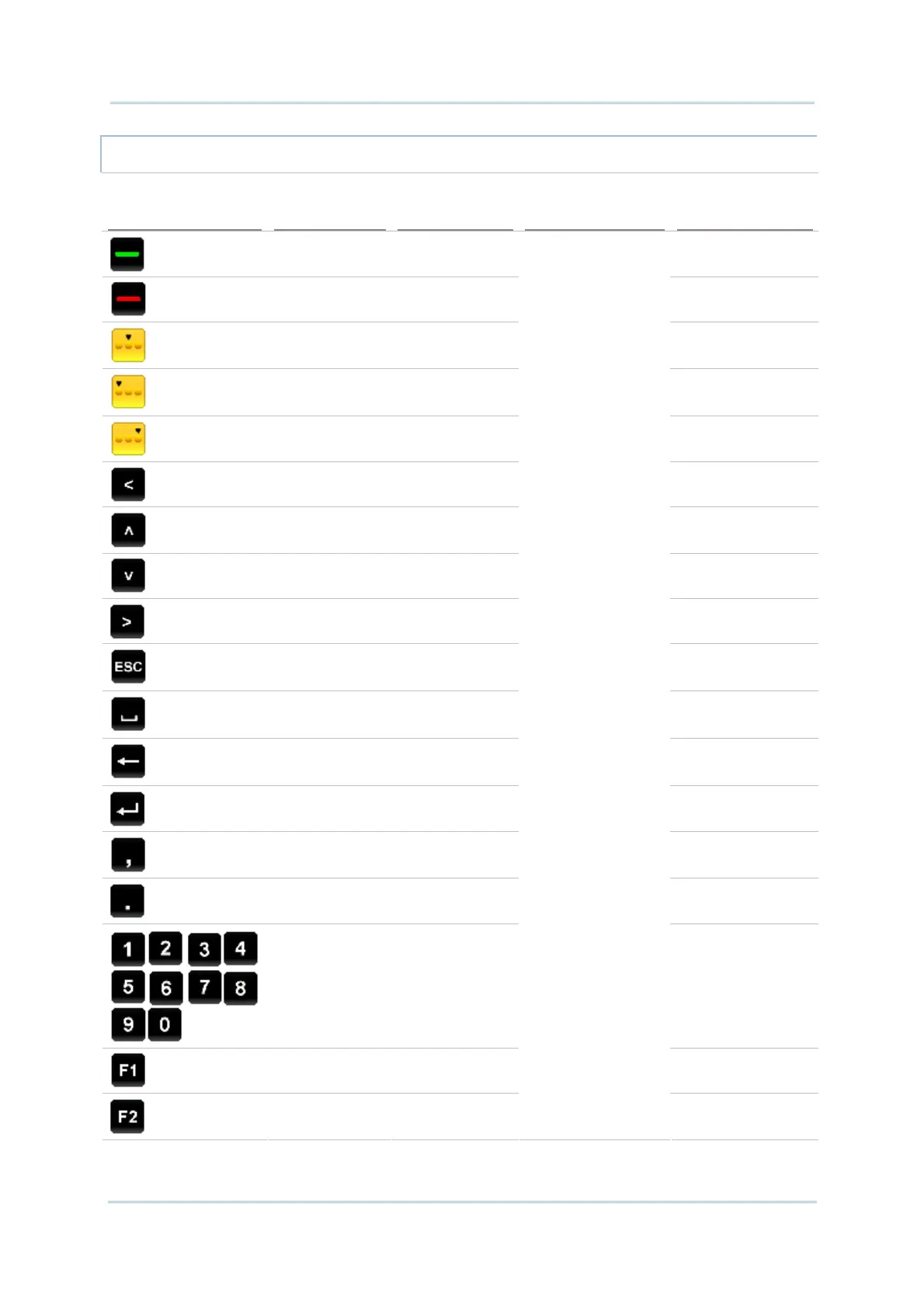

38-KEY KEYPAD
Button Normal mode Function mode Key Options
Special Options
(Normal mode)
F14 F14
F15 F15
Scan N/A Push to Talk
Left Scan N/A Push to Talk
Right Scan N/A Push to Talk
Left Home
Up Page Up
Down Page Down
Right End
Esc Esc
Space Start
Backspace Keypad Lock
Enter Enter
[,] Comma key
[.] Period key N/A
Keys 1, 2, 3
.….9, 0
--
F1 F11
F2 F12
Answer Call / Send
End (Call)
Start
OK
Home
End
Left
Right
Up
Down
Page Up
Page Down
Volume Down
Volume Up
Increase Backlight
Brightness
Decrease Backlight
Brightness
Backspace
Enter
Esc
Tab
-
.
*
#
!
@
$
%
^
&
(
)
1, 2, 3.….9, 0
F1-24
User Define

CipherLab 9700 Specifications

General

Battery voltage	3.7 V
Battery capacity	3600 mAh
Battery life (max)	13 h
Display diagonal	3.5 \
Touchscreen type	Resistive
Display resolution	640 x 480 pixels
Flash memory	4 GB
Internal memory	0.512 GB
Internal memory type	DDR
Compatible memory cards	SD, SDHC
Processor family	OMAP 3730
Processor frequency	1 GHz
Processor manufacturer	Texas Instruments
GPS (satellite)	-
Operating system installed	Windows Embedded CE 6.0 R3
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Security algorithms	WEP, WPA, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK
Built-in camera	No
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoHS, REACH, WEEE, ErP, BSMI, NCC, SRRC, CCC, ANATEL, RCM
Product color	Black, Yellow
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65

Weight and Dimensions

Depth	47 mm
Width	87 mm
Height	214 mm
Weight	447 g
