2 Data Capture
2.2. READ PRINTED BARCODES
Aside from output to destinations as per Keyboard Emulation settings, Reader Config
provides a Scan Test feature for quick viewing of decoded data.
To perform test scanning of barcodes:
1) Open Reader Config as described in
Launch Reader Config.
2) Tap Scan Test on the menu bar.
A Test Scan Form opens for displaying the scanned data.
3) Aim the scanning window at the printed barcode to read and press the scan key (or any
of the two side triggers).
The scanning light beams to read the printed barcodes.
The scanning light goes off once data is decoded, or decoding timeout is reached.

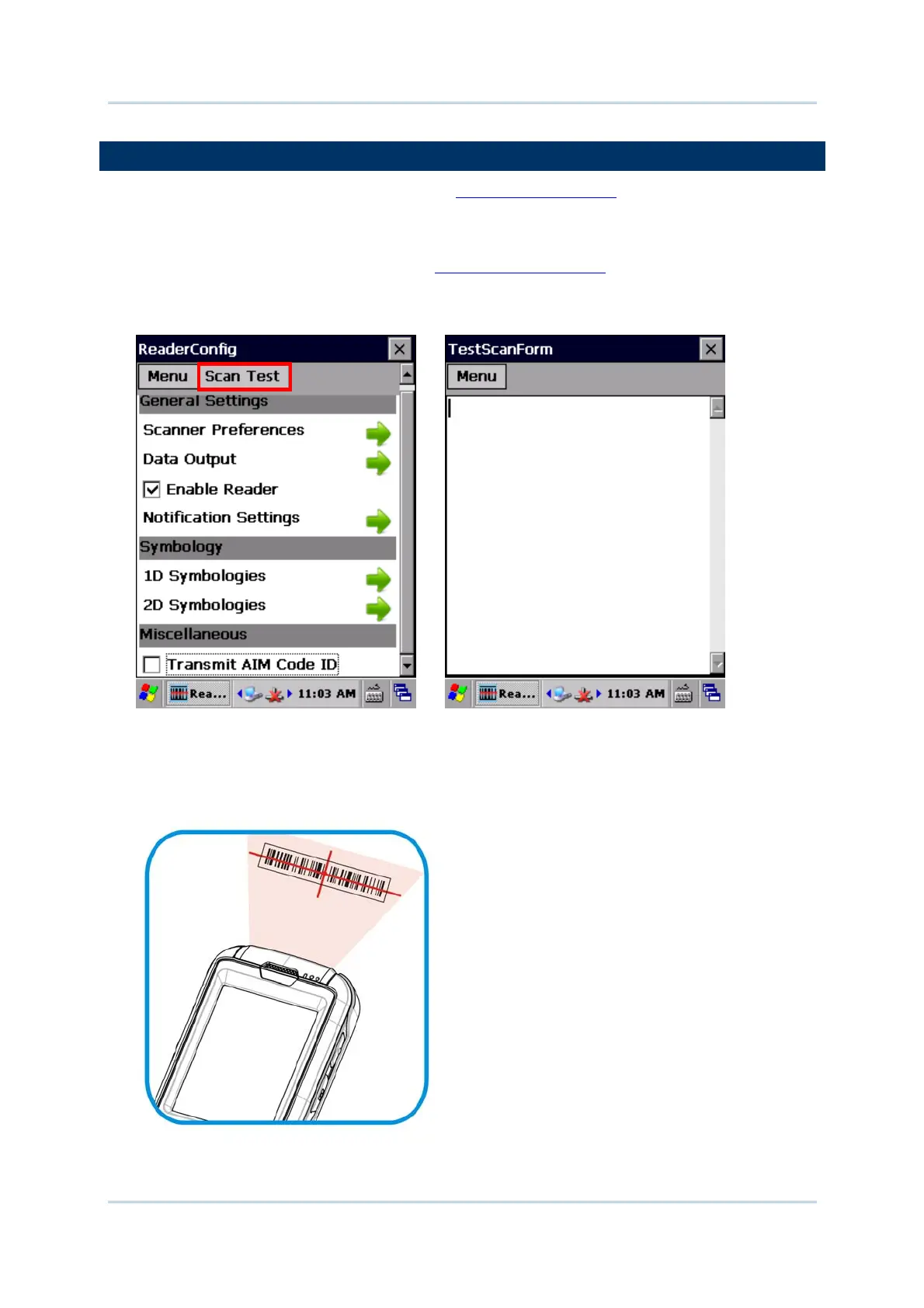

Figure 13: Read printed barcodes

CipherLab 9700 Specifications

General

Battery voltage	3.7 V
Battery capacity	3600 mAh
Battery life (max)	13 h
Display diagonal	3.5 \
Touchscreen type	Resistive
Display resolution	640 x 480 pixels
Flash memory	4 GB
Internal memory	0.512 GB
Internal memory type	DDR
Compatible memory cards	SD, SDHC
Processor family	OMAP 3730
Processor frequency	1 GHz
Processor manufacturer	Texas Instruments
GPS (satellite)	-
Operating system installed	Windows Embedded CE 6.0 R3
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Security algorithms	WEP, WPA, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK
Built-in camera	No
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoHS, REACH, WEEE, ErP, BSMI, NCC, SRRC, CCC, ANATEL, RCM
Product color	Black, Yellow
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65

Weight and Dimensions

Depth	47 mm
Width	87 mm
Height	214 mm
Weight	447 g
