CipherLab 9700 Reference Manual

15
Chapte
r
1 Use Mobile Compute
r
1.4.3. MONITOR BATTERY LEVEL
The main battery is the only source that feeds the mobile computer to work. It also supplies
the backup battery on main board to retain the data stored in DRAM. Hence when main
battery level gets low, recharge it or change it as soon as possible. Most critically, back up
the important data from time to time to protect your work.
MAIN BATTERY LEVEL
To check the main battery level:

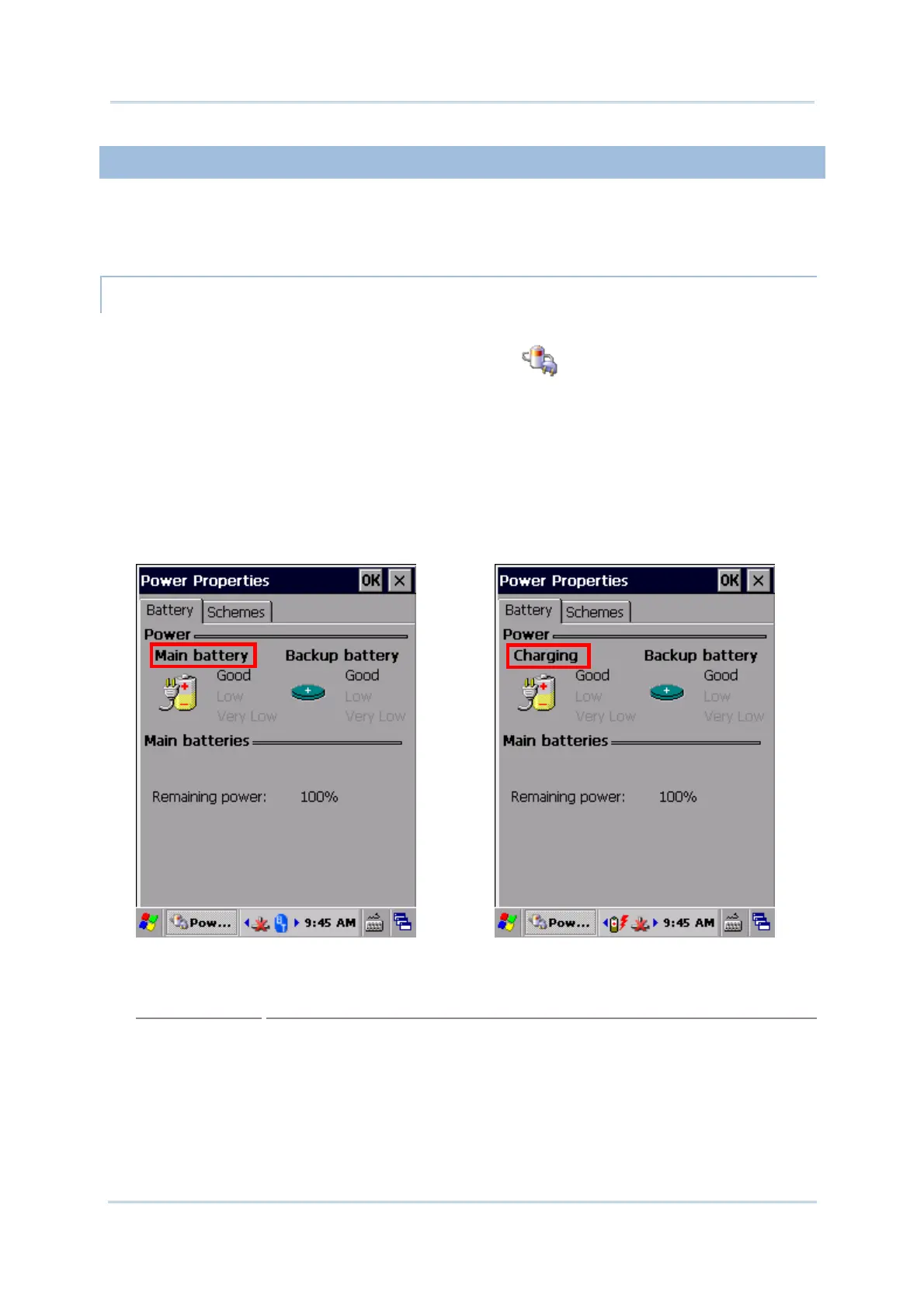

1) Tap Start | Settings | Control Panel | Power
.
Power Properties window opens showing Battery tabbed page. Main battery level is
summarized under Power label as “Good”, “Low” or “Very Low”. Precise battery level is
also shown in percentage under the Main batteries label.
Depending on whether the main battery is being charged, charging status will show
“Main battery”, meaning the mobile computer is on battery power, or “Charging”,
meaning that external power is connected.
Main battery isn’t being charged. Main battery is being charged.
Main battery level is summarized into three levels:
Description
Battery Status
Good
Main battery level is good (40~100%).
Low
Main battery level is low (20~39%). Charging is recommended.
Very Low
Main battery level is very low (<19%) and needs to be charged immediately.

CipherLab 9700 Specifications

General

Battery voltage	3.7 V
Battery capacity	3600 mAh
Battery life (max)	13 h
Display diagonal	3.5 \
Touchscreen type	Resistive
Display resolution	640 x 480 pixels
Flash memory	4 GB
Internal memory	0.512 GB
Internal memory type	DDR
Compatible memory cards	SD, SDHC
Processor family	OMAP 3730
Processor frequency	1 GHz
Processor manufacturer	Texas Instruments
GPS (satellite)	-
Operating system installed	Windows Embedded CE 6.0 R3
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Security algorithms	WEP, WPA, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK
Built-in camera	No
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoHS, REACH, WEEE, ErP, BSMI, NCC, SRRC, CCC, ANATEL, RCM
Product color	Black, Yellow
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65

Weight and Dimensions

Depth	47 mm
Width	87 mm
Height	214 mm
Weight	447 g
