CipherLab 9700 Reference Manual

57
Chapte
r
2 Data Capture

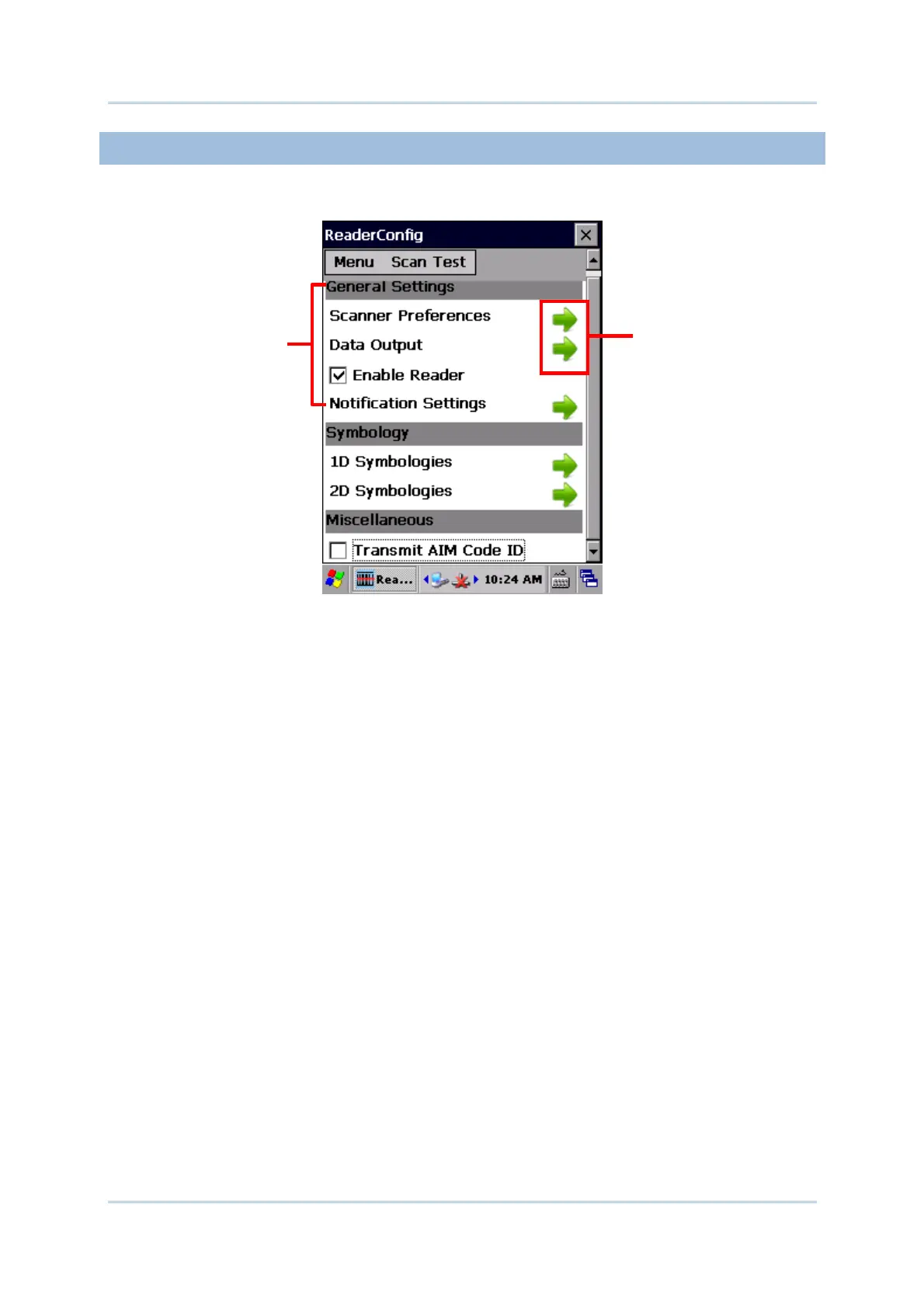

2.1.2. GENERAL SETTINGS
General Settings is where all reader settings are accessed from except for symbologies
settings. Tap the green arrow next to each item to enter the sub-menu for that given item.
The functions under General Settings include:
 Scanner Preferences
 Data Output
 Enable Reader - enabled by default
 Notification Settings
General Settings
Tap to enter each
sub-menu

CipherLab 9700 Specifications

General

Battery voltage	3.7 V
Battery capacity	3600 mAh
Battery life (max)	13 h
Display diagonal	3.5 \
Touchscreen type	Resistive
Display resolution	640 x 480 pixels
Flash memory	4 GB
Internal memory	0.512 GB
Internal memory type	DDR
Compatible memory cards	SD, SDHC
Processor family	OMAP 3730
Processor frequency	1 GHz
Processor manufacturer	Texas Instruments
GPS (satellite)	-
Operating system installed	Windows Embedded CE 6.0 R3
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Security algorithms	WEP, WPA, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK
Built-in camera	No
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoHS, REACH, WEEE, ErP, BSMI, NCC, SRRC, CCC, ANATEL, RCM
Product color	Black, Yellow
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65

Weight and Dimensions

Depth	47 mm
Width	87 mm
Height	214 mm
Weight	447 g
