5.1. BUTTON ASSIGNMENT
Button Assignment can re-define the functions of physical keys so that they trigger different
actions. Settings made to one or more keys can be saved as a profile, allowing users to
switch conveniently in between different sets of settings. Key functions under Function
Mode (triggered by pressing the
Function Key) can also be re-defined.
5.1.1. LAUNCH BUTTON ASSIGNMENT
To launch button assignment:
1) Tap Start | Settings | Control Panel | Button Assignment
.

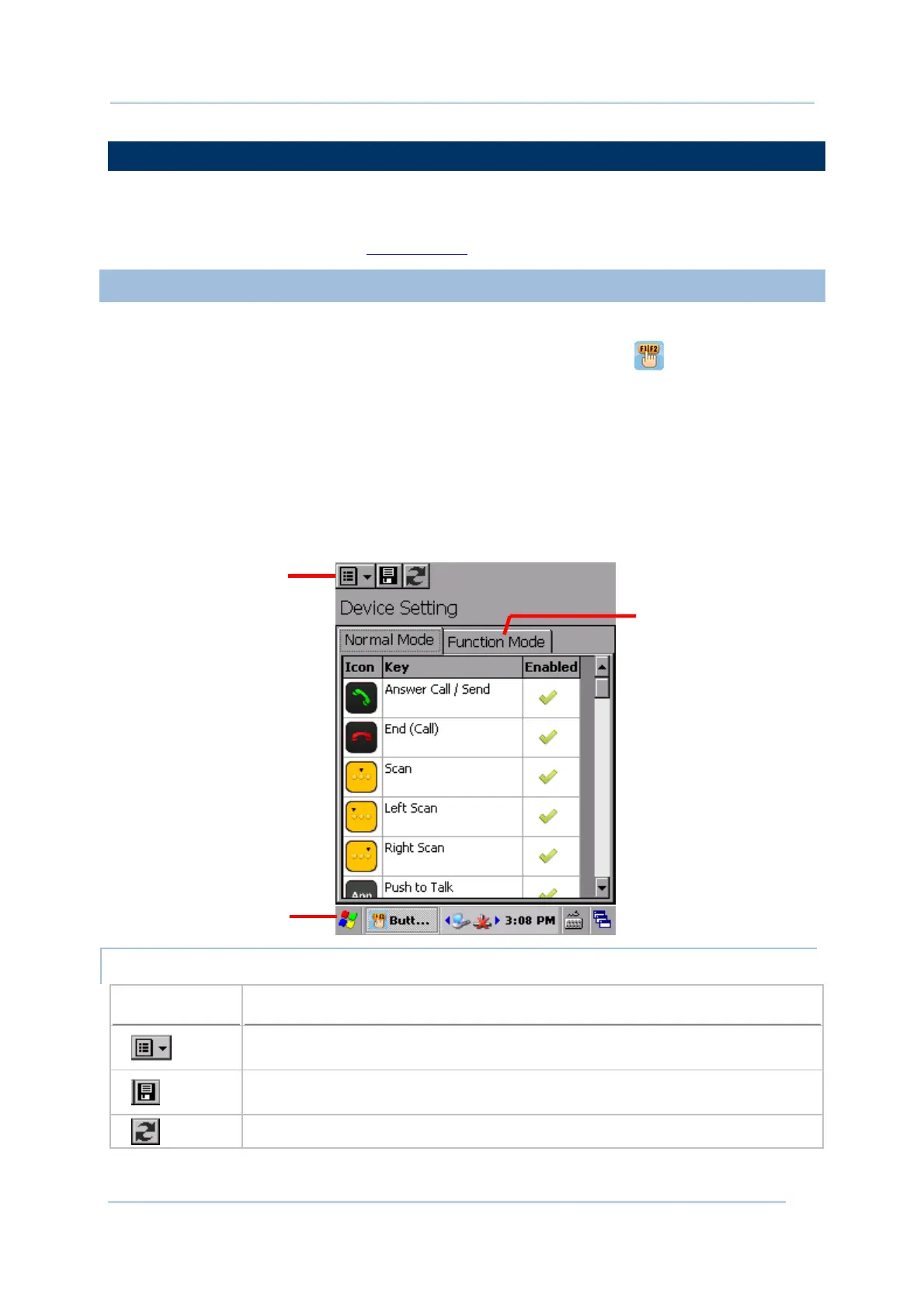

Button Assignment opens showing Normal Mode tabbed page with an additional
Function Mode tabbed page.
The Normal Mode tabbed page consists of a table listing three columns: Icon column
displaying the buttons available for reassignment, Key column showing the assigned
function of each button, and Enabled column to enable or disable the indicated buttons
in a single tap.
At the upper left of the screen is a taskbar that can be used to open additional settings,
save a profile or refresh settings to the stored profile.
TOOLBAR
Toolbar icon Description
Opens Button Assignment main menu which can be used to manage profiles, reset
settings to default, obtain version information, or exit the application.
Saves current settings as a new profile, or saves changes made to the profile
currently opened.
Refreshes the screen to profile settings as stored.
Opens Start
menu
Function Mode
tabbed page
Main menu

CipherLab 9700 Specifications

General

Battery voltage	3.7 V
Battery capacity	3600 mAh
Battery life (max)	13 h
Display diagonal	3.5 \
Touchscreen type	Resistive
Display resolution	640 x 480 pixels
Flash memory	4 GB
Internal memory	0.512 GB
Internal memory type	DDR
Compatible memory cards	SD, SDHC
Processor family	OMAP 3730
Processor frequency	1 GHz
Processor manufacturer	Texas Instruments
GPS (satellite)	-
Operating system installed	Windows Embedded CE 6.0 R3
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Security algorithms	WEP, WPA, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK
Built-in camera	No
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoHS, REACH, WEEE, ErP, BSMI, NCC, SRRC, CCC, ANATEL, RCM
Product color	Black, Yellow
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65

Weight and Dimensions

Depth	47 mm
Width	87 mm
Height	214 mm
Weight	447 g
