Appendix VI Physical Keypad Reference Table

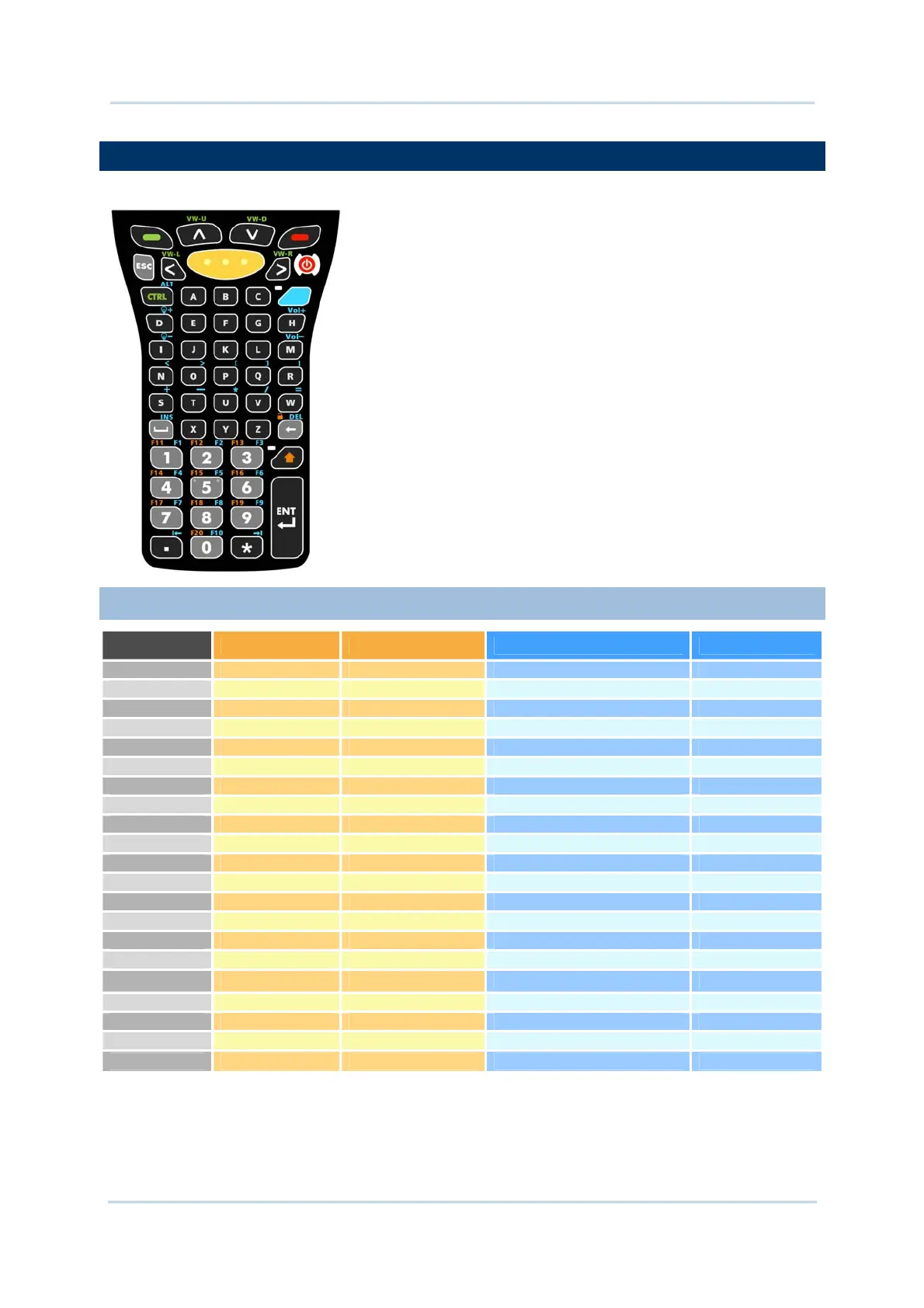

ALPHANUMERIC KEYPAD (53 KEYS)
Alphanumeric keypad layout:
USING ALPHA, SHIFT & FN KEYS
Key Normal
 Mode
[α] Mode [Ctrl] Mode
1 1 Shift+1 F1 Ctrl+1
2 2 Shift+2 F2 Ctrl+2
3 3 Shift+3 F3 Ctrl+3
4 4 Shift+4 F4 Ctrl+4
5 5 Shift+5 F5 Ctrl+5
6 6 Shift+6 F6 Ctrl+6
7 7 Shift+7 F7 Ctrl+7
8 8 Shift+8 F8 Ctrl+8
9 9 Shift+9 F9 Ctrl+9
0 0 Shift+0 F10 Ctrl+0
* * N/A Page Down (VK_NEXT) Ctrl+^ (^^)
Up Up Highlight Up VK_UP Ctrl+Up
Down Down Highlight Down VK_DOWN Ctrl+Down
Left Left Highlight Left VK_LEFT Ctrl+Left
Right Right Highlight Right VK_RIGHT Ctrl+Right
Enter Enter Enter VK_INSERT Enter
Backspace Backspace Keylock VK_END Ctrl+\ (^\)
Esc Esc Esc Esc Esc
. . . Page Up (VK_PRIOR) Ctrl+] (^])
Space Space Space VK_TAB Ctrl+_ (^_)
Ctrl Ctrl Ctrl Alt N/A

CipherLab 9700 Specifications

General

Battery voltage	3.7 V
Battery capacity	3600 mAh
Battery life (max)	13 h
Display diagonal	3.5 \
Touchscreen type	Resistive
Display resolution	640 x 480 pixels
Flash memory	4 GB
Internal memory	0.512 GB
Internal memory type	DDR
Compatible memory cards	SD, SDHC
Processor family	OMAP 3730
Processor frequency	1 GHz
Processor manufacturer	Texas Instruments
GPS (satellite)	-
Operating system installed	Windows Embedded CE 6.0 R3
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Security algorithms	WEP, WPA, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK
Built-in camera	No
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoHS, REACH, WEEE, ErP, BSMI, NCC, SRRC, CCC, ANATEL, RCM
Product color	Black, Yellow
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65

Weight and Dimensions

Depth	47 mm
Width	87 mm
Height	214 mm
Weight	447 g
