CipherLab 9700 Reference Manual

39
Chapte
r
1 Use Mobile Compute
r
1.6.4. CALIBRATION
A resistive touchscreen needs calibration to work accurately after serving for a period of
time. Calibration aligns the coordinates of the touch panel and the LCD underneath to
improve touch accuracy.

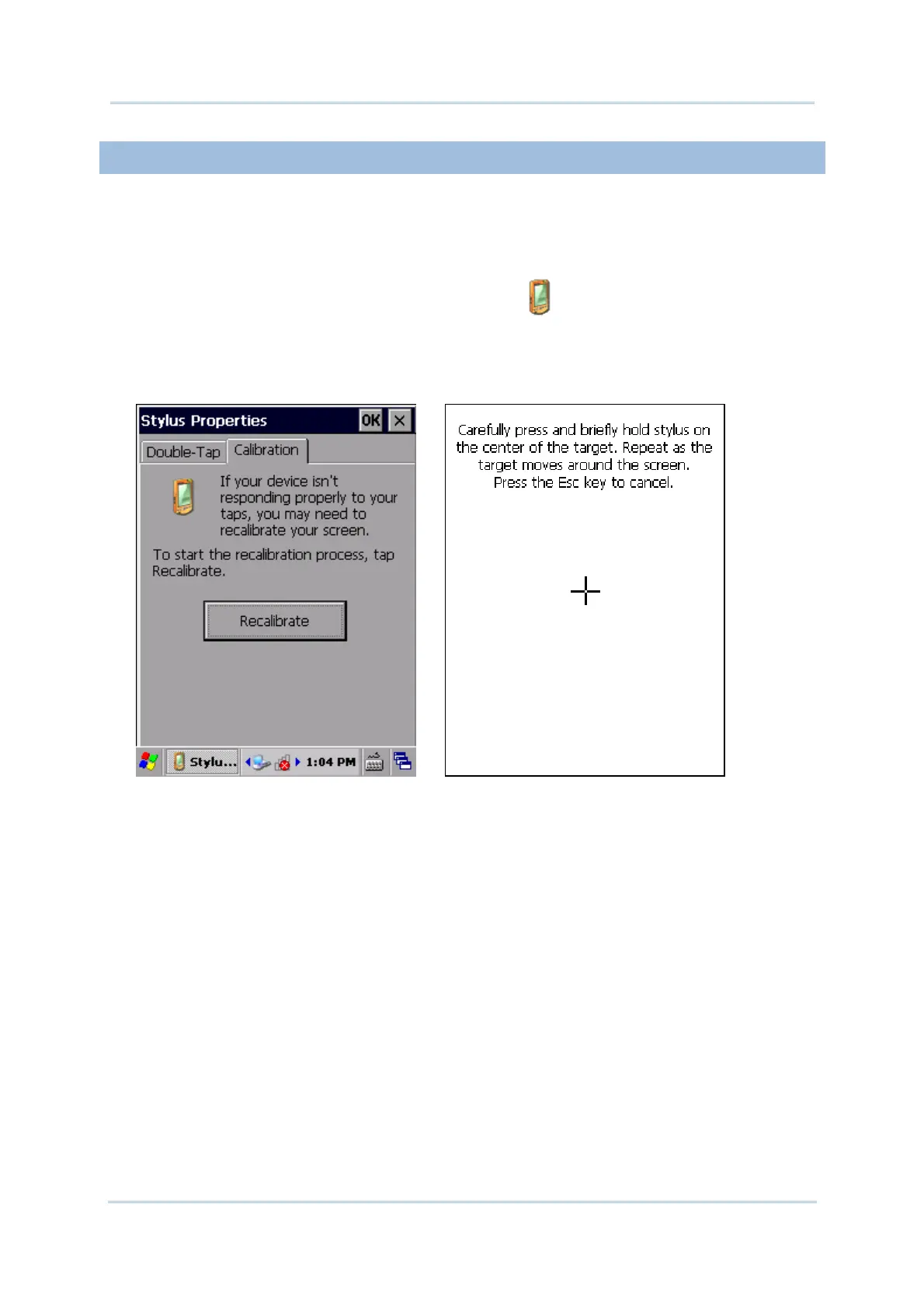

To calibrate the touchscreen:
1) Tap Start | Settings | Control Panel | Stylus
.
2) Tap Calilbration tabbed page.
Calibration tabbed page opens. Tap Recalibrate button to open the calibration
screen.
3) Using the stylus, tap firmly at the center of the cross that appears on-screen. Five
crosses will appear in sequence.
Follow the on-screen instructions to save the new calibration settings or restore the old
settings. Once completed, the screen returns to Calibration tabbed page.

CipherLab 9700 Specifications

General

Battery voltage	3.7 V
Battery capacity	3600 mAh
Battery life (max)	13 h
Display diagonal	3.5 \
Touchscreen type	Resistive
Display resolution	640 x 480 pixels
Flash memory	4 GB
Internal memory	0.512 GB
Internal memory type	DDR
Compatible memory cards	SD, SDHC
Processor family	OMAP 3730
Processor frequency	1 GHz
Processor manufacturer	Texas Instruments
GPS (satellite)	-
Operating system installed	Windows Embedded CE 6.0 R3
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Security algorithms	WEP, WPA, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK
Built-in camera	No
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoHS, REACH, WEEE, ErP, BSMI, NCC, SRRC, CCC, ANATEL, RCM
Product color	Black, Yellow
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65

Weight and Dimensions

Depth	47 mm
Width	87 mm
Height	214 mm
Weight	447 g
