Cisco 7800 Series

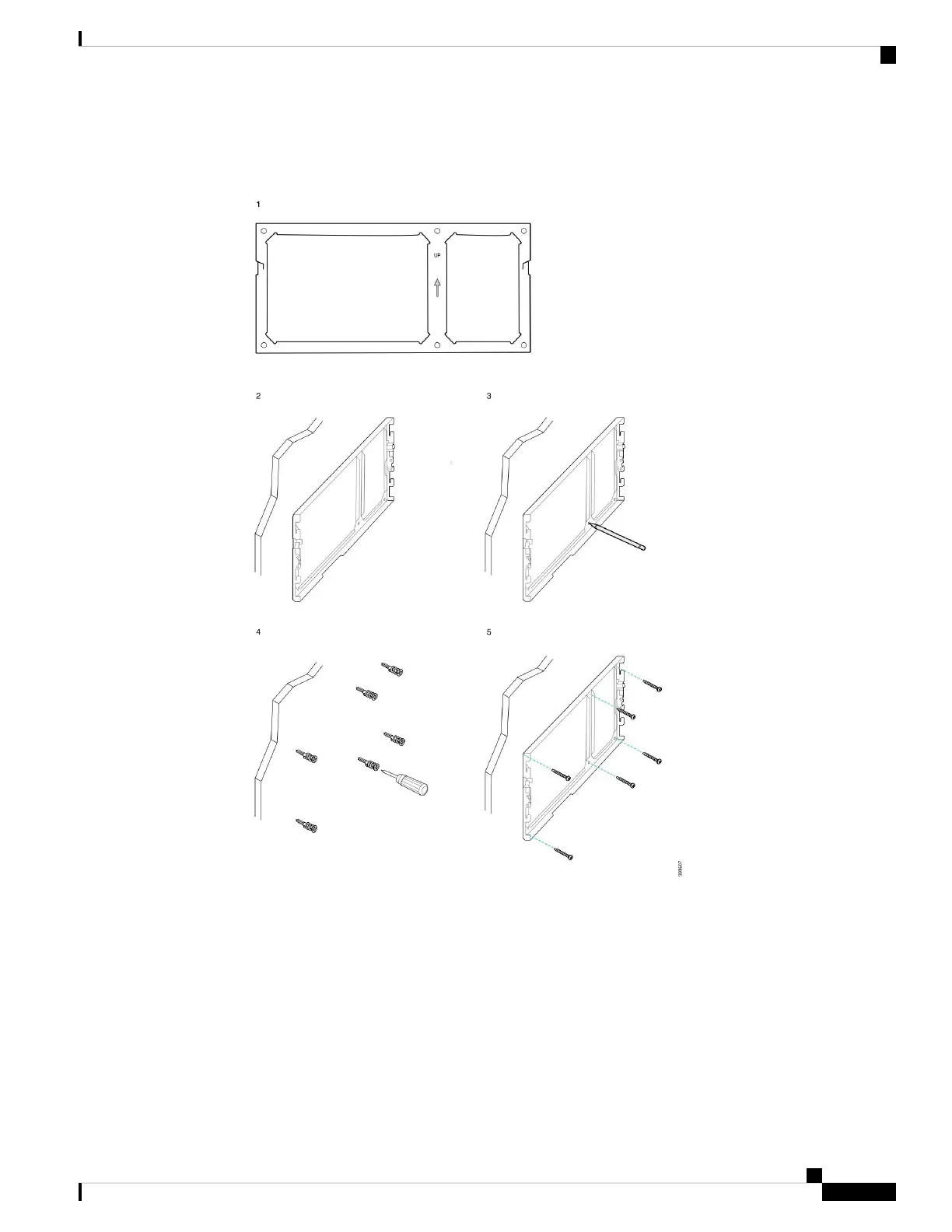

The following diagram illustrates attaching a Cisco IP Phone 8800 series wall bracket with a key
expansion module to a wall.
The following diagram illustrates step 2 to step 5 of attaching a Cisco IP Phone 8845 and 8865 series
wall bracket to a wall.
Cisco IP Phone 7800 and 8800 Series Accessories Guide for Cisco Unified Communications Manager
73
Wall Mount Kits
Attach the Wall Bracket to the Wall
