Using the Ethernet Management Port (Catalyst 2960-S Only)
For a Catalyst 2960-S standalone switch, connect the Ethernet management port to the PC as shown in
Figure 12-2.

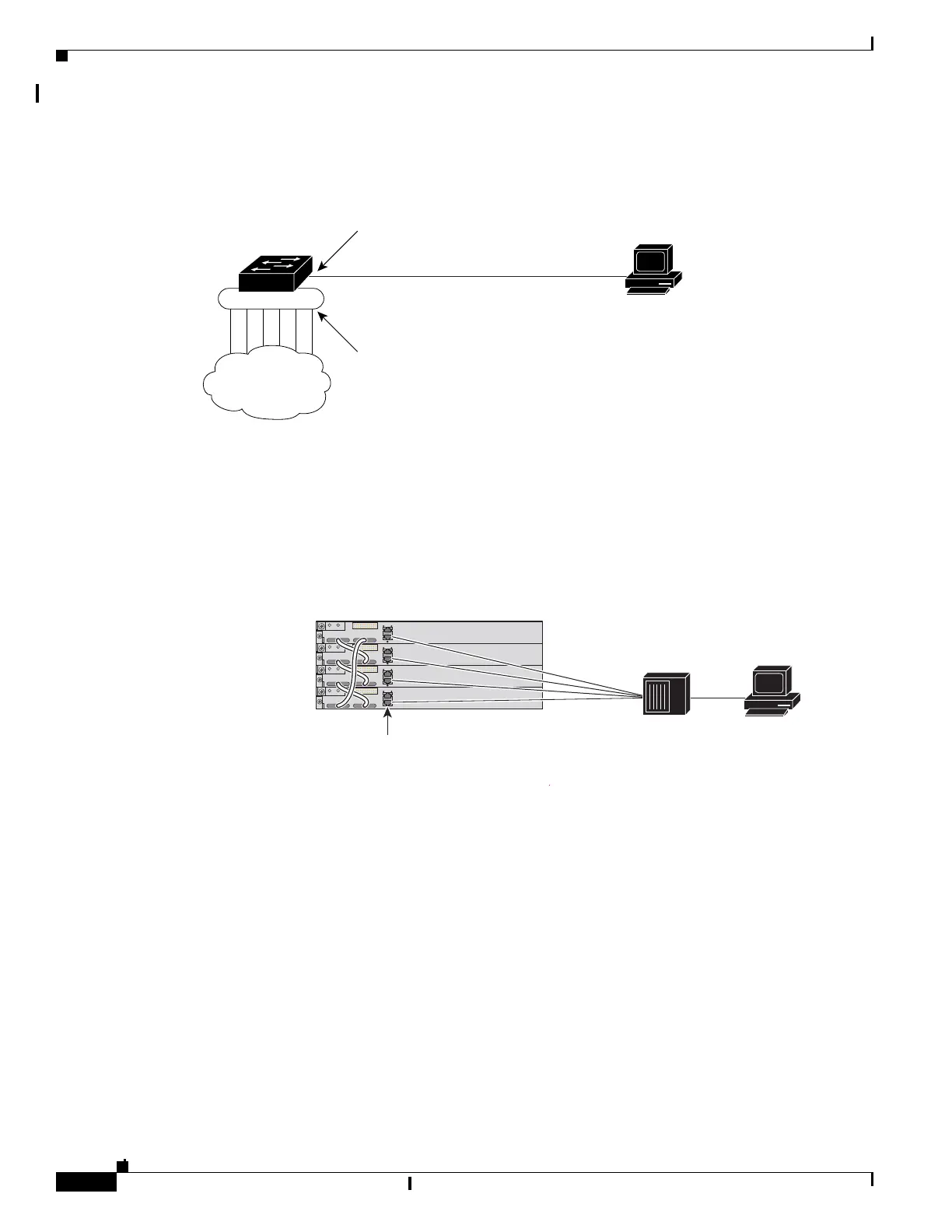

Figure 12-2 Connecting a Switch to a PC
In a Catalyst 2960-S stack, all the Ethernet management ports on the stack members are connected to a
hub to which the PC is connected. As shown in Figure 12-3, the active link is from the Ethernet
management port on the stack master (switch 2) through the hub, to the PC. If the stack master fails and
a new stack master is elected, the active link is now from the Ethernet management port on the new stack
master to the PC.
Figure 12-3 Connecting a Switch Stack to a PC
By default, the Ethernet management port is enabled.
Supported Features on the Ethernet Management Port
The Ethernet management port supports these features:
• Express Setup (only in switch stacks)
• Network Assistant
• Telnet with passwords
• TFTP
• Secure Shell (SSH)
• DHCP-based autoconfiguration
• SMNP (only the ENTITY-MIB and the IF-MIB)
• IP ping
