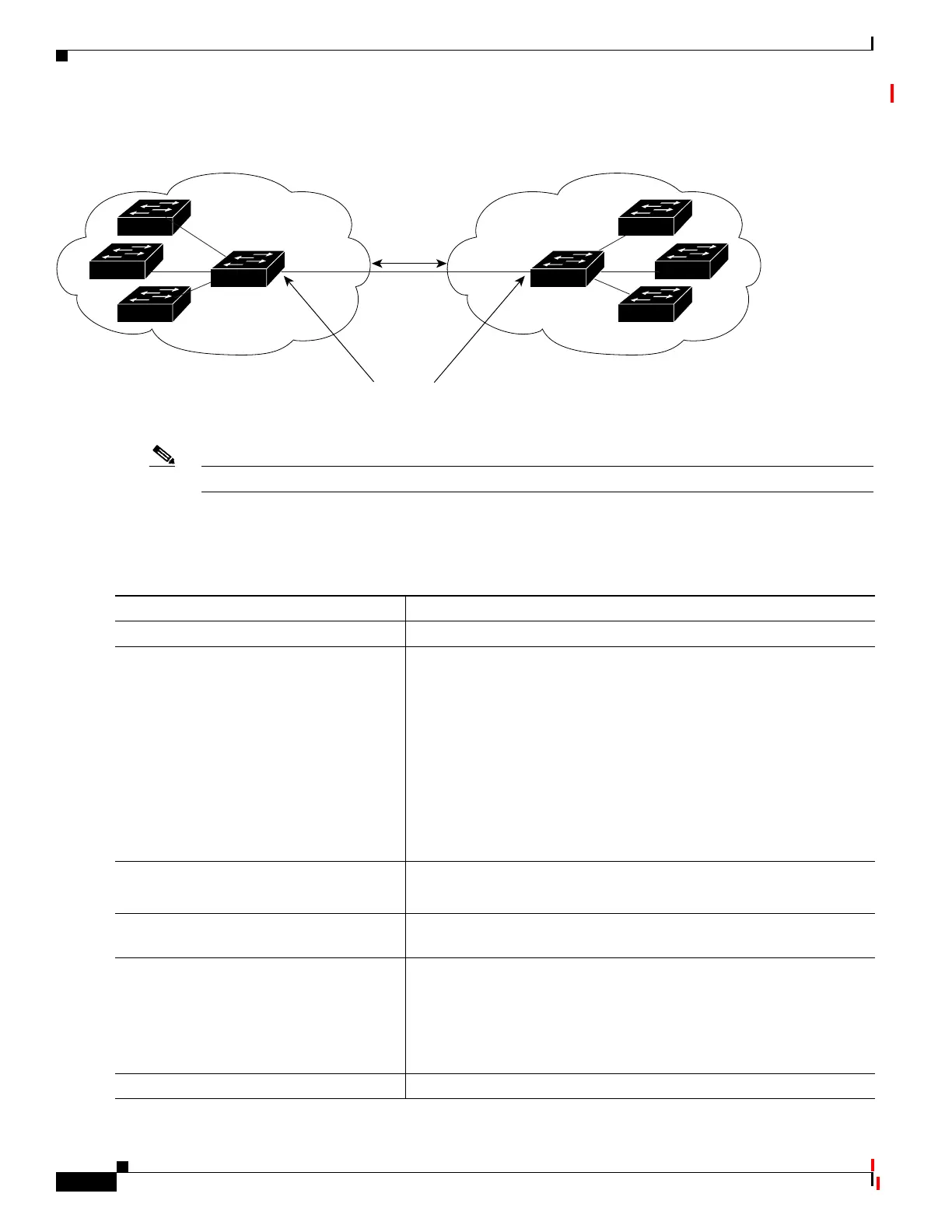

Figure 33-11 DSCP-Trusted State on a Port Bordering Another QoS Domain
Note Catalyst 2960-S switches do not support ingress queueing.
Beginning in privileged EXEC mode, follow these steps to configure the DSCP-trusted state on a port
and modify the DSCP-to-DSCP-mutation map. To ensure a consistent mapping strategy across both QoS
domains, you must perform this procedure on the ports in both domains:
101235
QoS Domain 1 QoS Domain 2
Set interface to the DSCP-trusted state.
Configure the DSCP-to-DSCP-mutation map.
IP traffic
Command Purpose
Step 1
configure terminal Enter global configuration mode.
Step 2
mls qos map dscp-mutation
dscp-mutation-name in-dscp to out-dscp
Modify the DSCP-to-DSCP-mutation map.
The default DSCP-to-DSCP-mutation map is a null map, which maps
an incoming DSCP value to the same DSCP value.
• For dscp-mutation-name, enter the mutation map name. You can
create more than one map by specifying a new name.
• For in-dscp, enter up to eight DSCP values separated by spaces.
Then enter the to keyword.
• For out-dscp, enter a single DSCP value.
The DSCP range is 0 to 63.
Step 3
interface interface-id Specify the port to be trusted, and enter interface configuration mode.
Valid interfaces include physical ports.
Step 4
mls qos trust dscp Configure the ingress port as a DSCP-trusted port. By default, the port
is not trusted.
Step 5
mls qos dscp-mutation
dscp-mutation-name
Apply the map to the specified ingress DSCP-trusted port.
For dscp-mutation-name, specify the mutation map name created in
Step 2.
You can configure multiple DSCP-to-DSCP-mutation maps on an
ingress port.
Step 6
end Return to privileged EXEC mode.
