Configuring the WAP2000 Access Point
Configuring Wireless Settings
Cisco WAP2000 Wireless-G Access Point with Power Over Ethernet Administration Guide 46
6
Configuring VLAN & QoS

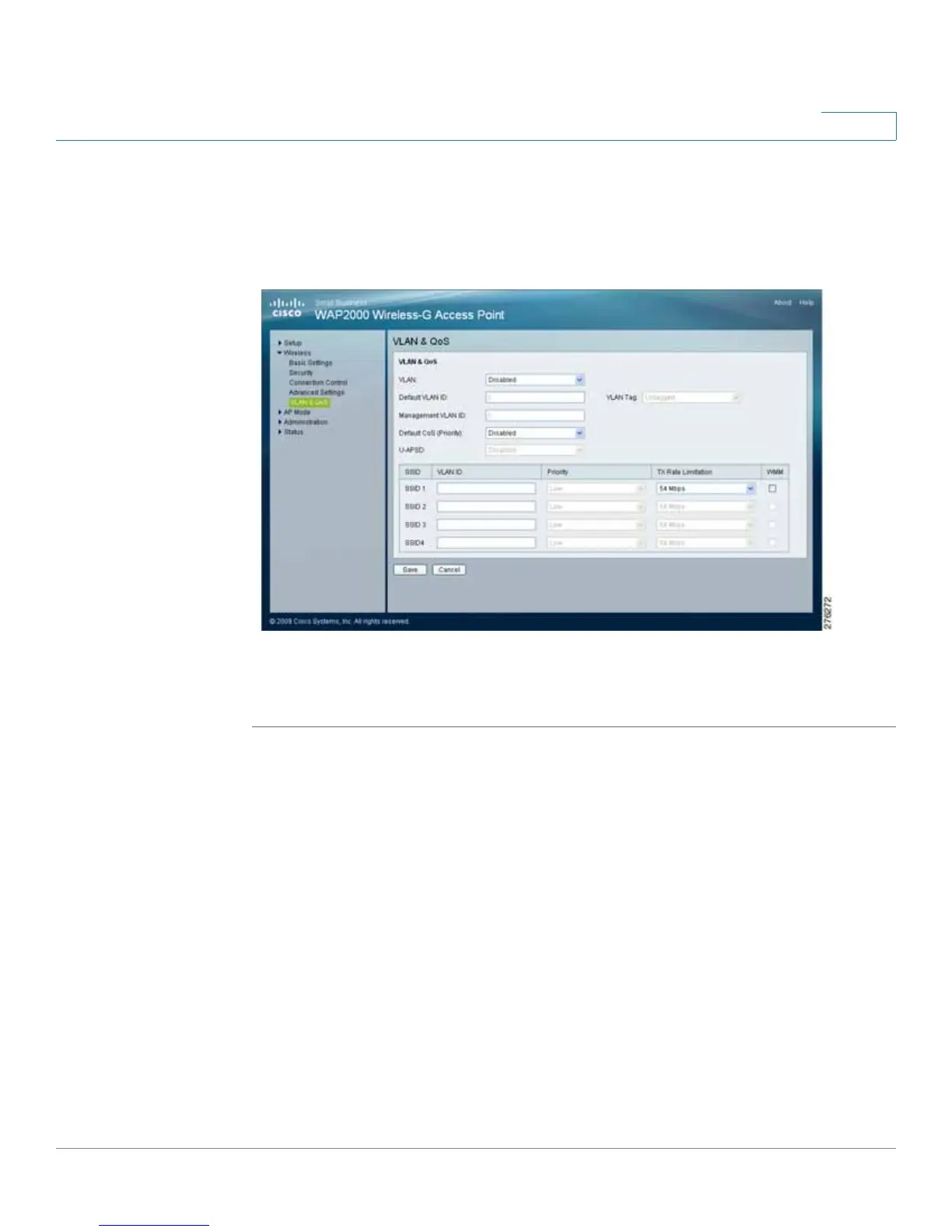

The Wireless > VLAN & QoS window allows you to configure the VLAN and QoS
related settings for the access point.
To configure the wireless VLAN and QoS settings of the access point, follow these
steps:
STEP 1 Click Wireless > VLAN & QoS.
STEP 2 Configure VLAN settings by providing the following information for the global
VLAN settings for the access point:
• VLAN—Select Enabled to pass 802.1q VLAN tagged traffic between the
wired LAN and wireless LAN. Your access point maps the VLAN tag (wired
side) to different SSIDs (wireless side) according to your specified settings.
Select Disabled and your access point drops all tagged traffic coming in
from the wired LAN. The default is Disabled.
• Default VLAN ID—Enter the default VLAN ID number (1–4094), the default
value is 1. The default VLAN number should match with your switch’s
settings. For example, the Cisco SRW2024 switch has the Trunk port mode,
which sets the default VLAN (PVID) to 1 untagged, while the General port
mode can set PVID to any VLAN either tagged or untagged.
• VLAN Tag—Set the tagging option for the default VLAN ID. This has to match
your switch’s settings. The default is untagged.
