Chapter 3 Disassembly and Maintenance
3-6 Disassembly, Reassembly and Lubrication
3-25 CL-S400DT

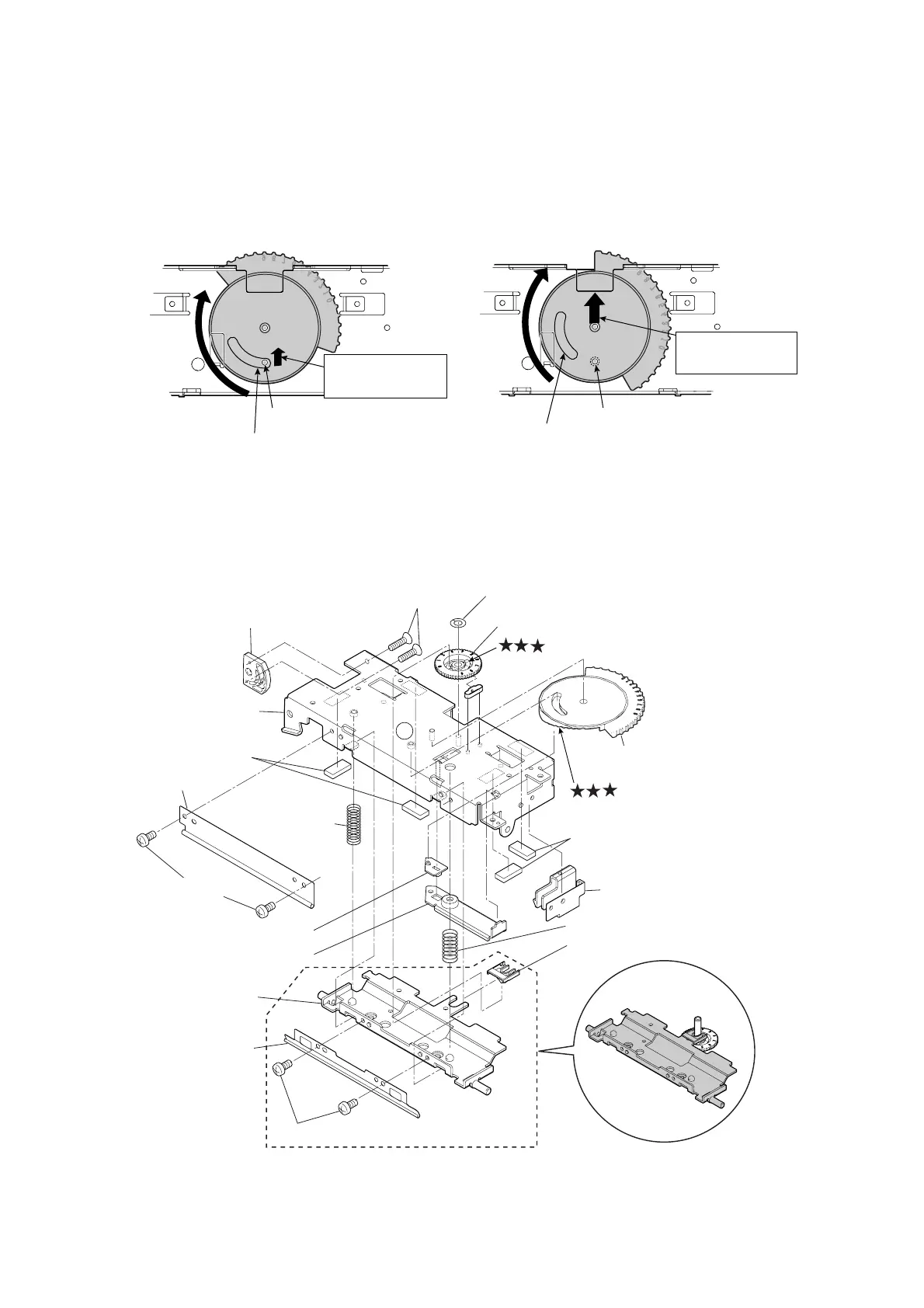

Stopper
Stopper
Groove of the dial
Float the dial
here.
Groove of the dial
Turn further and
remove the dial.
11. Removal of the “Cam Adjust Head Spring”:
1) Turn the “Cam Adjust Head Spring” (Media width adjustment dial) unit it stops to the
direction where the dial number increases. (Refer to the following figure.)
* The dial stops as its groove end reaches the stopper.
2) Float the “Cam Adjust Head Spring” (dial) by hand over the stopper and further turn it in
the same direction to set it free. Now, it can be removed.
12. Remove 1 “Washer, Platen” and detach the “Cam Adjust Head Angle”.
13. Remove 2 screws (BHT (PT), M2x5) and detach the “Stopper Cover Open”.
14. Remove 2 screws (BH (N), M3x6 (NI)) and detach the “Plate Label Protect 2”.
15. Remove the “Stopper Guide Paper U” and 4 “Leg, Case L F” from the “SA Cover Frame”.
A
Cam Adjust Head Spring
(Media width adjustment dial)
Cam Adjust Head Angle
(Media thickness adjustement dial)
Washer, Platen
BHT (PT), M2x5
Stopper Cover Open
Plate Label
Protect 2
Leg, Case L F
Spring Head L
Stopper Guide Paper U
Spring Head R
SA Plate Holder Head
Plate Label Protect
Plate Adjust Spring Holder
Spacer Adjust Spring
Spacer Adjust Head Angle
SA Cover Frame
Leg, Case L F
BH (N), M3x6 (NI)
(FLOIL G-311S)
(FLOIL G-311S)
BH (N), M3x6 (NI)
"SA Plate Holder Head" Block
To Next Page
