Citizen CL-S400DT Technical Manual

Chapter 3 Disassembly and Maintenance
3-6 Disassembly, Reassembly and Lubrication
CL-S400DT 3-26

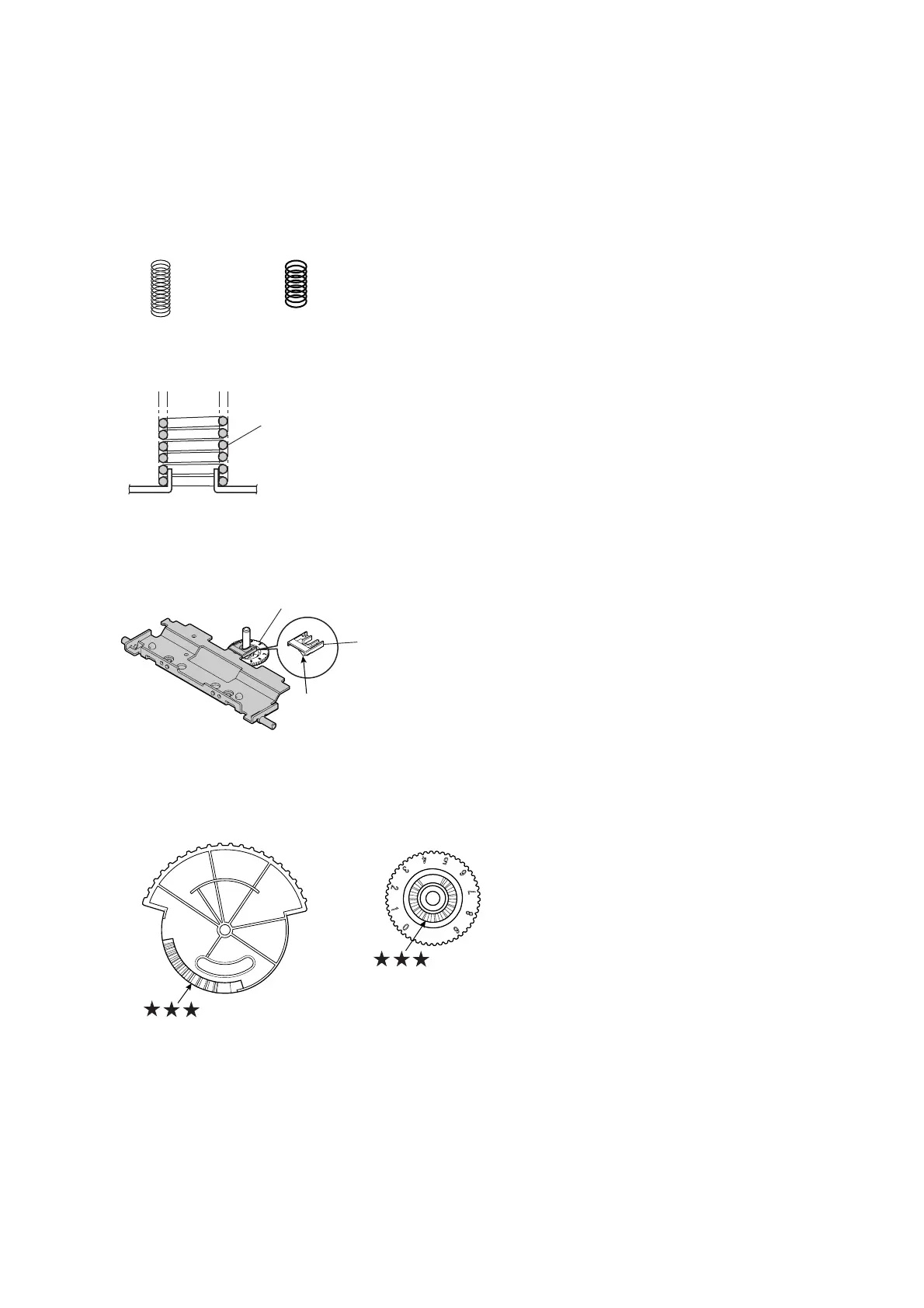

Cam Adjust Head Spring
Cam Adjuste Head Angle
(FLOIL G-311S)
(FLOIL G-311S)
Spring Head L Spring Head R
Spacer Adjust Head Angle
Cam Adjust Head Angle
Protrusion
Spring Head R
Spring Head L
Notes on reassembling:
• The places to stick the “Leg, Case LF” are indicated on the frame. Be sure to stick them to the
original places.
• Be sure to securely engage the “Stopper Guide Paper U” (gray) with the frame.
• Do not mix up springs. The diameter and length of the “Spring Head L” and “Spring Head R”
differ as follows.
• Assemble the “Spring Head R” in the convexed fringe of the “Plate Adjust Spring Holder” and the
“Spring Head L” in the convexed fringe of the “SA Cover Frame” as shown below.
• Assemble the “Spacer Adjust Head Angle” so that its protruding side faces the “Cam Adjust Head
Angle”.
• Apply grease to the following places.
Cam part of the “Cam Adjust Head Spring” and the “Cam Adjust Head Angle”: FLOIL G-311S
• Tighten the “SA Head Cable” with a new “Wire Tie” as it was.

Citizen CL-S400DT Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum printing width	104.1 mm
Ethernet LAN	No
RS-232 interface	Yes
Optional connectivity	Ethernet, Parallel
USB 2.0 ports quantity	1
Flash memory	8 MB
Internal memory	16 MB
Power requirements	110 - 220 V, 50/60 Hz
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	118 mm
Maximum media length	812.8 mm
Sustainability certificates	ENERGY STAR
Product color	Black
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	149 mm
Width	206 mm
Height	150 mm
Weight	2680 g
