Claas QUANTUM 3500 User Manual

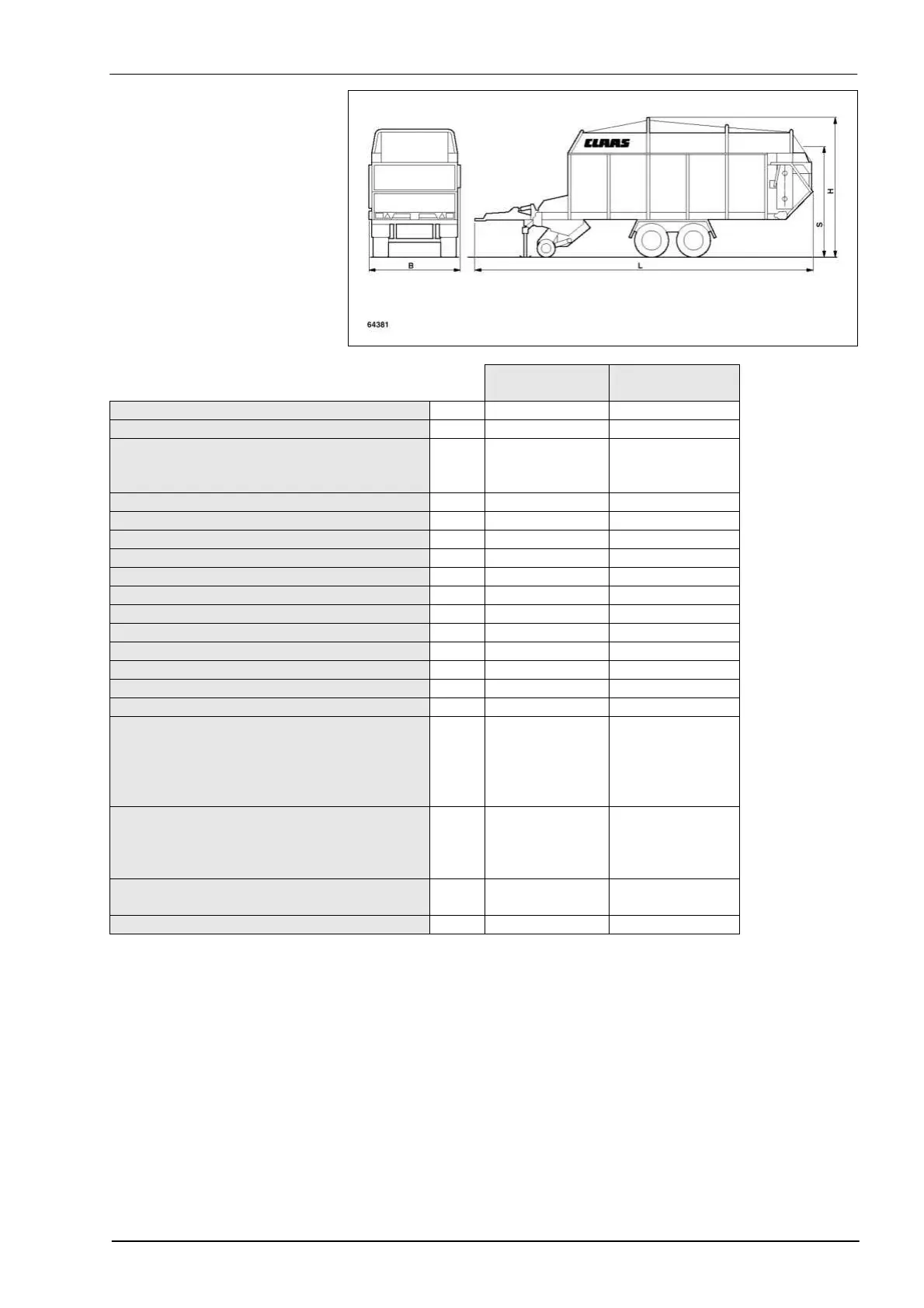

TIC QUANTUM Technical Data
10/04 1-7
QUANTUM
5500 S
QUANTUM
4500 S
Length (L) mm 9,250 8,160
Width (B) mm 2,550 2,550
Height (H)
– dry forage assembly folded up
– dry forage assembly folded down
mm
mm
3,840
3,040
3,840
3,040
Track width mm 1,850 1,850
Pick-up width mm 1,800 1,800
Platform height mm 1,240 1,240
Platform area mm 2,160 x 5,700 2,160 x 4,700
Loading capacity (acc. to DIN 11741) m
3
31 26,3
Kerb weight kg 6,920 6,500
Permissible total weight 13,000 11,000
Number of cutting knives 33 33
Shortest theoretical length of cut mm 45 45
Number of pick-up tines per tine bar 26 26
Tine spacing mm 61 61
PTO speed min
-1
1,000 1,000
Tyres - up to 40 km/h without AGS
- up to 60 km/h without AGS
- up to 80 km/h with AGS
- up to 60 km/h air suspension
- Pick-up wheels
555/45-17 146F
555/45-17 146F
555/45-17 146F
555/45-17 146F
16x6.5-8 4PR
500/50-17 10PR
555/45-17 146F
555/45-17 146F
-
16x6.5-8 4PR
Tyre pressure - with tyres 500/50-17
555/45-17
500/55-20
16x6.5-8
bar
bar
bar
-
3.0
-
2.5
3.5
3.0
-
2.5
Tightening torque of wheel nuts – wagon
wheels
Nm 300 300
Sound pressure level dB(A) 70 70
