Claas QUANTUM 3500 User Manual

Technical Data QUANTUM TIC
1-8 10/04

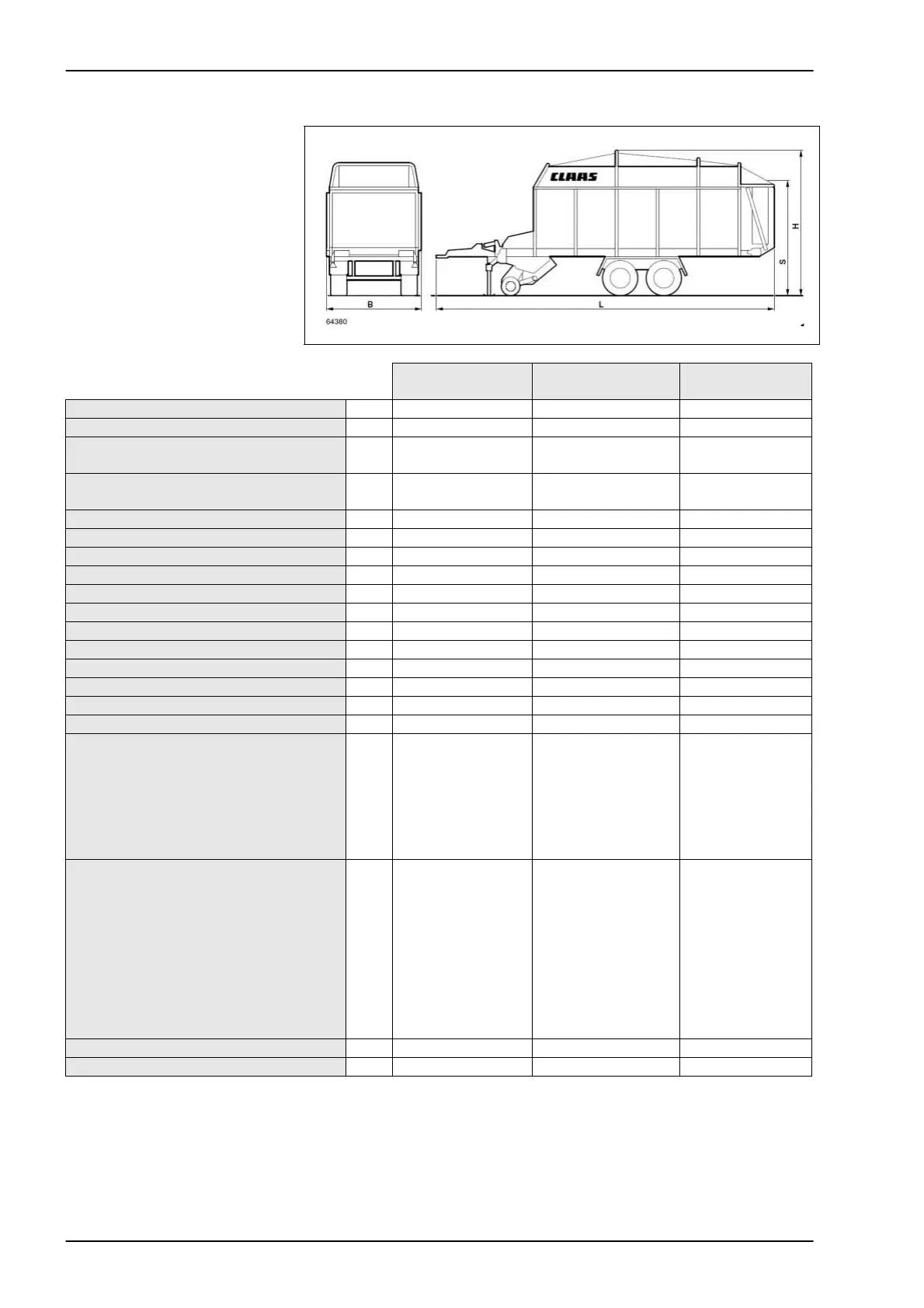

1.3 QUANTUM 6800 P, 6500 P, 5500 P-18, 5500 GT, 5500 P, 4500 P
QUANTUM
6800 P
QUANTUM
6500 P
QUANTUM
5500 P-18
Length (L) mm 10,180 10,019 9,250
Width (B) mm 2,550 2,550 2,550
Height (H) – dry forage assembly
folded up
mm 3,990 3,950 3,990
Height (S) – dry forage assembly
folded down
mm 3,290 3,190 3,290
Track width mm 1,950 1,950 1,950
Pick-up width mm 1,800 1,800 1,800
Platform height mm 1,240 1,240 1,490
Platform area mm 2,160 x 7,600 2,160 x 7,550 2,160 x 6,550
Loading capacity (acc. to DIN 11741) m
3
40 45.7 34
Kerb weight kg 8,030 7,440 7,240
Permissible total weight kg 20,000 16,000 18,000
Number of cutting knives 33 33 33
Shortest theoretical length of cut mm 45 45 45
Number of pick-up tines per tine bar 26 26 26
Tine spacing mm 61 61 61
PTO speed min
-1
1,000 1,000 1,000
Tyres - up to 40 km/h without AGS
- up to 50 km/h without AGS
- up to 60 km/h without AGS
- up to 80 km/h with AGS
- up to 60 km/h air suspension
- Pick-up wheels
700/45-22.5 12PR
700/50-R26.5
-
650/50-22.5 12PR
-
-
16x6.5-8 4PR
2x 500/50-17 14PR
4x 8.25 R70 14PR
-
-
-
-
16x6.5-8 4PR
-
-
600/55-22.5 12PR
650/55-22.5 12PR
-
-
16x6.5-8 4PR
Tyre pressure - with tyres
555/45-17
500/55-20
600/55-22.5
650/50-R22.5
700/45-22.5
600/55-R26.5
700/50-R26.5
800/40-R26.5
Pick-up wheels
bar -
-
3.0
3.0
1.5
3.0
1.5
1.5
2.5
4.5
4.5
-
-
-
-
2.5
-
-
3.0
3.0
1.5
-
-
-
2.5
Tightening torque of wheel nuts Nm 300 300 300
Sound pressure level dB(A) 70 70 70

Claas QUANTUM 3500 Specifications

General

Brand	Claas
Model	QUANTUM 3500
Category	Farm Equipment
Language	English
