Claas QUANTUM 3500 User Manual

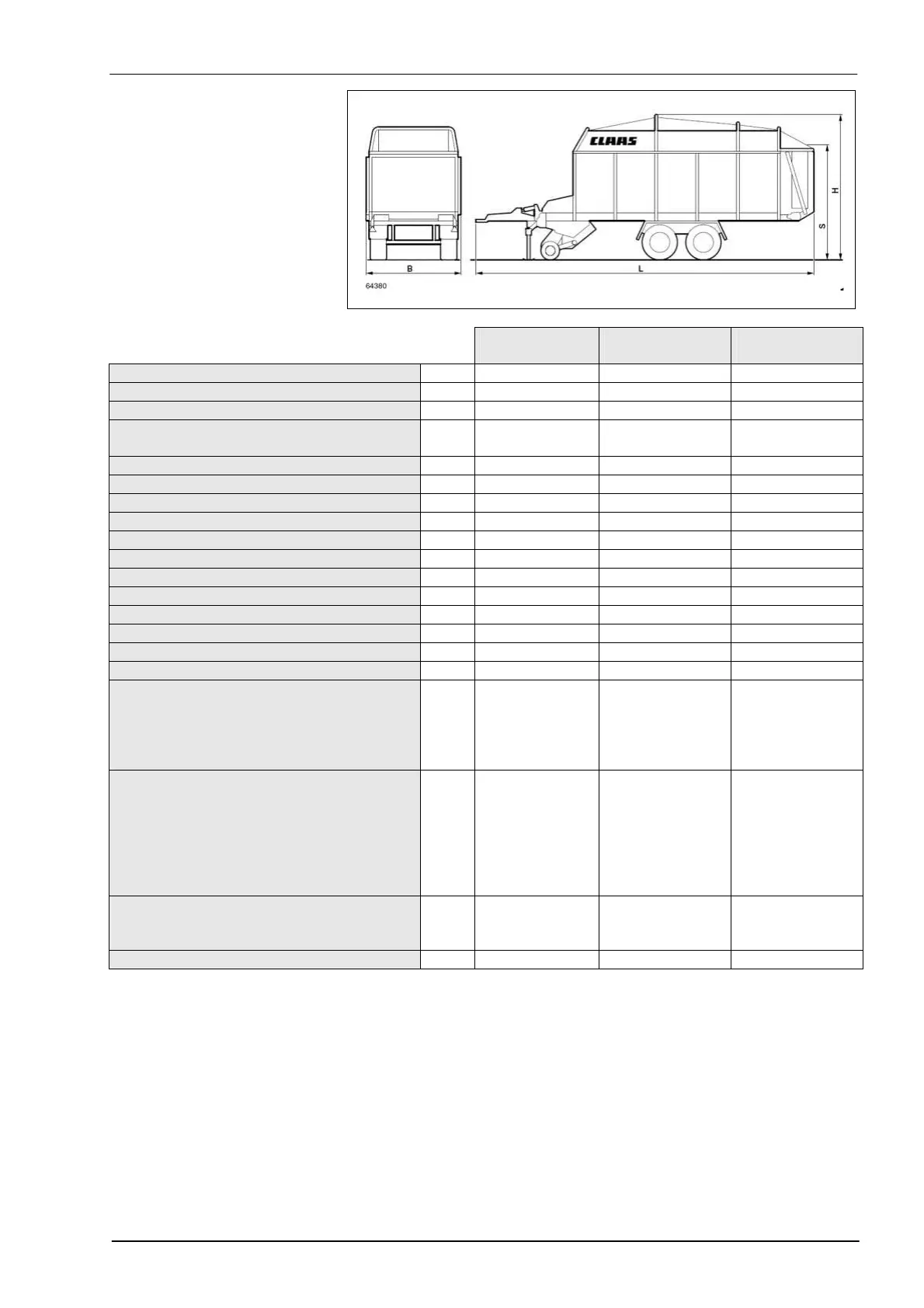

TIC QUANTUM Technical Data
10/04 1-9
QUANTUM
5500 GT
QUANTUM
5500 P
QUANTUM
4500 P
Length (L) mm 8,860 8,860 7,770
Width (B) mm 2,550 2,550 2,550
Height (H) – dry forage assembly folded up mm 3,800 3,800 3,800
Height (S) – dry forage assembly folded
down
mm 3,040 3,040 3,040
Track width mm 1,900 1,850 1,850
Pick-up width mm 1,800 1,800 1,800
Platform height mm 1,240 1,240 1,240
Platform area mm 2,160 x 6,500 2,160 x 6,550 2,160 x 5,400
Loading capacity (acc. to DIN 11741) m
3
34 34 29.3
Kerb weight kg 6,550 6,200 5,740
Permissible total weight kg 16,000 13,000 11,000
Number of cutting knives 33 33 33
Shortest theoretical length of cut mm 45 45 45
Number of pick-up tines per tine bar 26 26 26
Tine spacing mm 61 61 61
PTO speed min
-1
1,000 1,000 1,000
Tyres - up to 40 km/h without AGS
- up to 50 km/h without AGS
- up to 60 km/h without AGS
- up to 60 km/h air suspension
- Pick-up wheels
555/45-17 154F
550/45-R22.5
555/45-17 145F
500/55-20 12PR
16x6.5-8 4PR
555/45-17 146F
-
555/45-17 146F
16x6.5-8 4PR
500/50-17 10PR
-
555/45-17 146F
-
16x6.5-8 4PR
Tyre pressure
- with tyres 500/50-17
550/45-R22.5
555/45-17
500/55-20
550/45-17 154F
Pick-up wheels
bar -
-
4.5
3.5
3.0
2.5
-
-
3.0
3.0
-
2.5
3.5
3.0
3.0
-
-
2.5
Tightening torque of wheel nuts
M18 x 1.5
M20 x 1.5
Nm
270
380
270
380
270
380
Sound pressure level dB(A) 70 70 70

Claas QUANTUM 3500 Specifications

General

Brand	Claas
Model	QUANTUM 3500
Category	Farm Equipment
Language	English
