Claas QUANTUM 3500 User Manual

TIC QUANTUM Technical Data
10/04 1-5

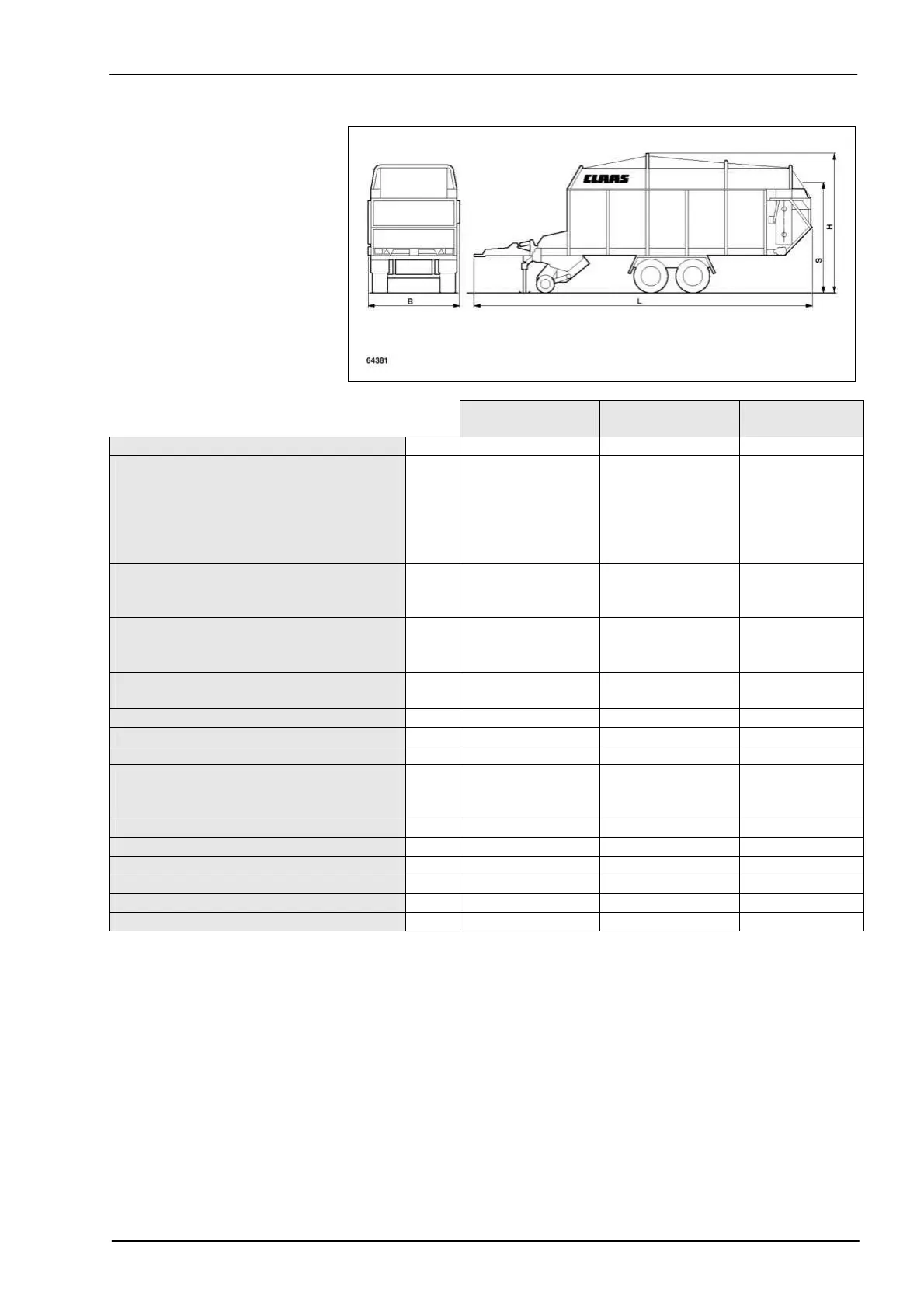

1.2 QUANTUM 5500 S-18, 5500 S-16, 5500 S, 4500 S, 6800 S
QUANTUM
5500 S-18
QUANTUM
5500 S-16
QUANTUM
6800 S
Length (L) mm 9,250 9,250 10,500
Width (B)
- Standard
- with tyres 700/45-22.5
- with tyres 600/55-R26.5
- with tyres 700/50-R26.5
- with tyres 800/40-R26.5
mm
2,550
2,720
-
-
-
2,550
-
-
-
-
2,550
2,720
2,550
2,750
2,930
Height (H) - dry forage assembly folded
up
- with tyres 800/40-R26.5
mm
mm
3,990
-
3,930
-
3,990
4,000
Height (S) - dry forage assembly folded
up
- with tyres 800/40-R26.5
mm
mm
3,290
-
3,230
-
3,290
3,300
Track width - with tyres 22.5
- with tyres 26.5
mm
mm
1,950
-
1,950
-
1,950
2,000
Pick-up width mm 1,800 1,800 1,800
Platform area mm 2,160 x 5,700 2,160 x 5,700 2,160 x 5,700
Loading capacity (acc. to DIN 11741) m
3
31 31 38
Kerb weight
with tyres 800/40-R26.5
incl. forced steering
kg
kg
8,340
-
7,600
-
8,810
9,350
Permissible total weight 18,000 16,000 20,000
Number of cutting knives 33 33 33
Shortest theoretical length of cut mm 45 45 45
Number of pick-up tines per tine bar 26 26 26
Tine spacing mm 61 61 61
PTO speed min
-1
1,000 1,000 1,000
