9.1.4 BA ROLLANT 240 - 250 - 254 - 255 - 000 299 119 5
Operation
Discharging bales:
The tailgate is opened by operating the hydraulic
control valve.
The bale is discharged from the bale chamber via the
discharge ramp. As soon as the ramp is pressed down
by the bale, the control light in the pushbutton switch
(3) blinks and the buzzer sounds.
As soon as the bale has left the ramp, the indicator
lamp in the pushbutton switch (3) will go out and the
buzzer will stop.
The tailgate can now be closed with the hydraulic
control valve.
As soon as the tailgate has been closed, the indicator
lamp in the rotary switch (1) will light up.
The next bale may now be made.

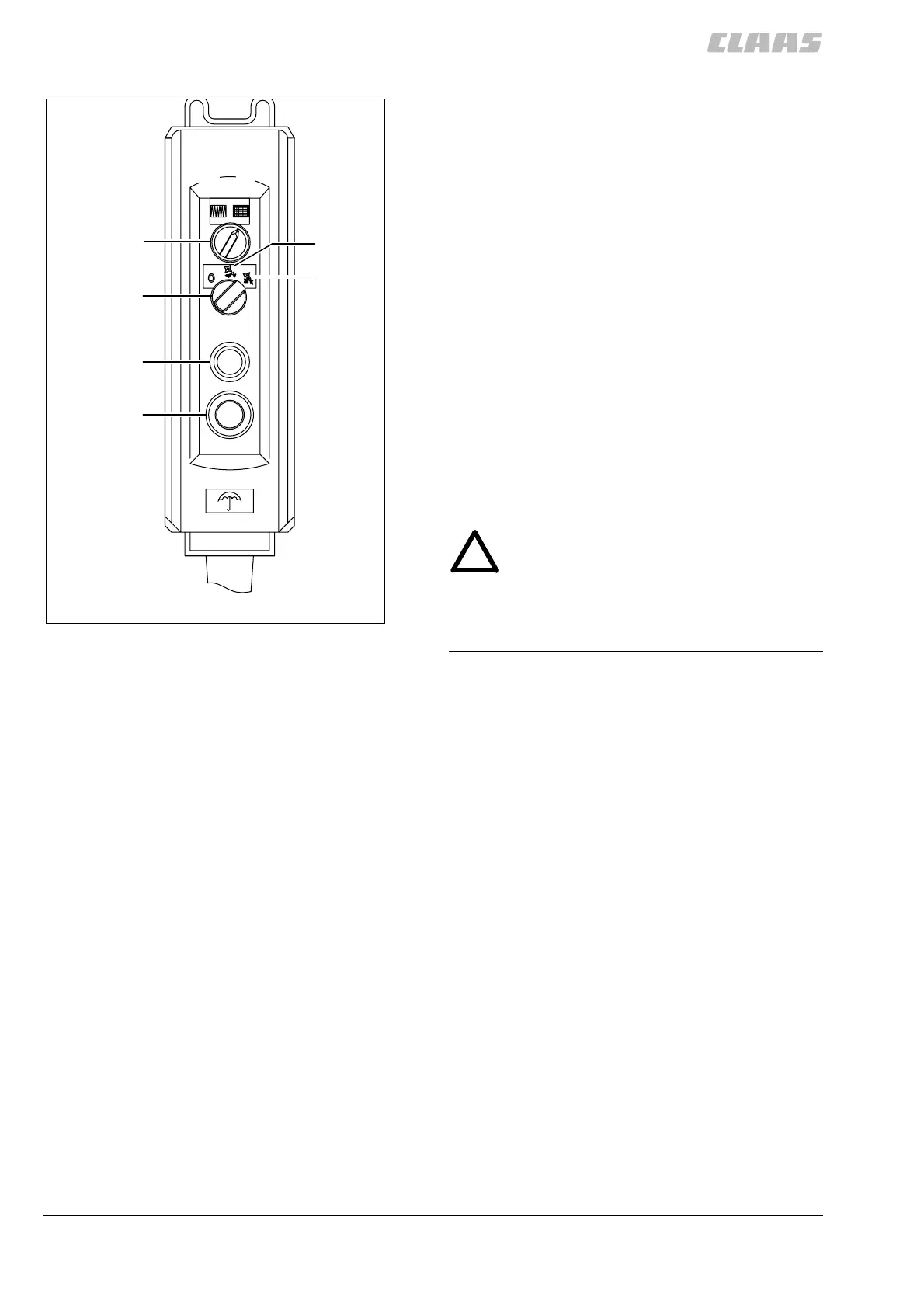

(Fig. 4)
Discharging bales
Attention!
When working on slopes always discharge
bales in such a way that they cannot roll
away.
