7.2.8 BA ROLLANT 240 - 250 - 254 - 255 - 000 299 119 5
Prior to operation
Danger!
The work of converting the height of the
drawbar hitching (e.g. changing from top to
bottom hitching or vice versa) must only be
done by authorized workshops.
Attaching to the jaw-type hitch with a safety
nut
(In Germany only permitted with type-approved
drawbar)

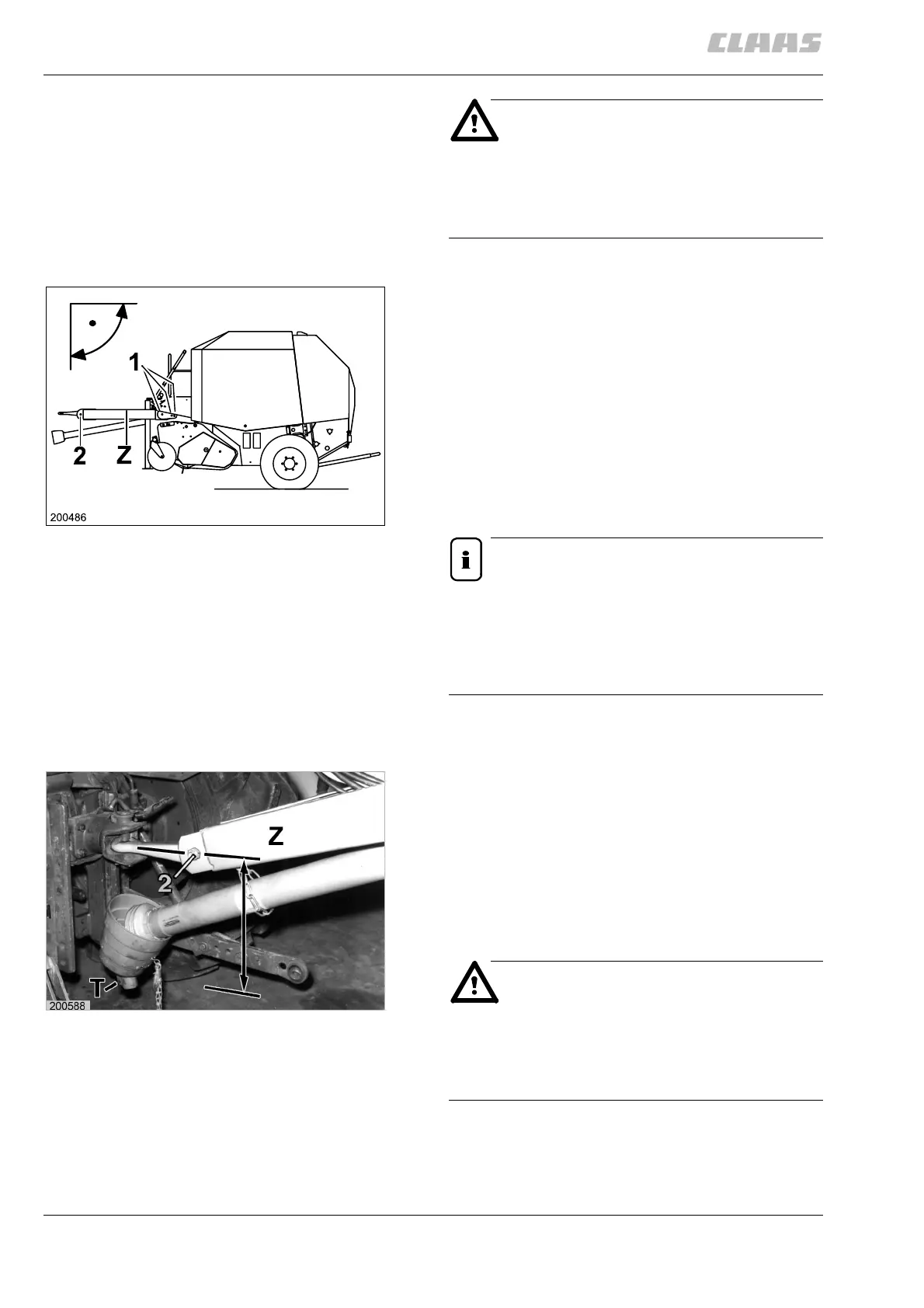

The round baler must be connected horizontally to the
top-fitted tow jaw of the tractor.
The height of drawbar (Z) can be adjusted after
removing bolts (1 and 2).
Once the height of the drawbar has been adjusted,
adjust the hitch eye so that it is parallel to the ground.
Tighten bolts (1 and 2) to the torques specified below.
Note!
When setting the drawbar, check that the
pick-up is set correctly (20 mm to 30 mm (0.79
to 1.18 in) distance between fork teeth and
ground) to ensure good removal of the baling
material.
(Fig. 22, 23)
Tightening torques:
Bolt (1)
M 20 x 1.5 x 65 ISO 8676 – 10.9 =
486 Nm (357.4 ft lb)
Bolt (2)
M 20 x 1.5 x 140 ISO 8676 – 10.9 =
486 Nm (357.4 ft lb)
Danger!
Retighten bolts (1 and 2) after the first 10
hours of operation; thereafter check the bolts
for tightness after every 50 hours of
operation.
(Fig. 22, 23)
