Claas ROLLANT 250 - Power Supply; Machines with Lighting Equipment

7.3.2 BA ROLLANT 240 - 250 - 254 - 255 - 000 299 119 5
Prior to operation

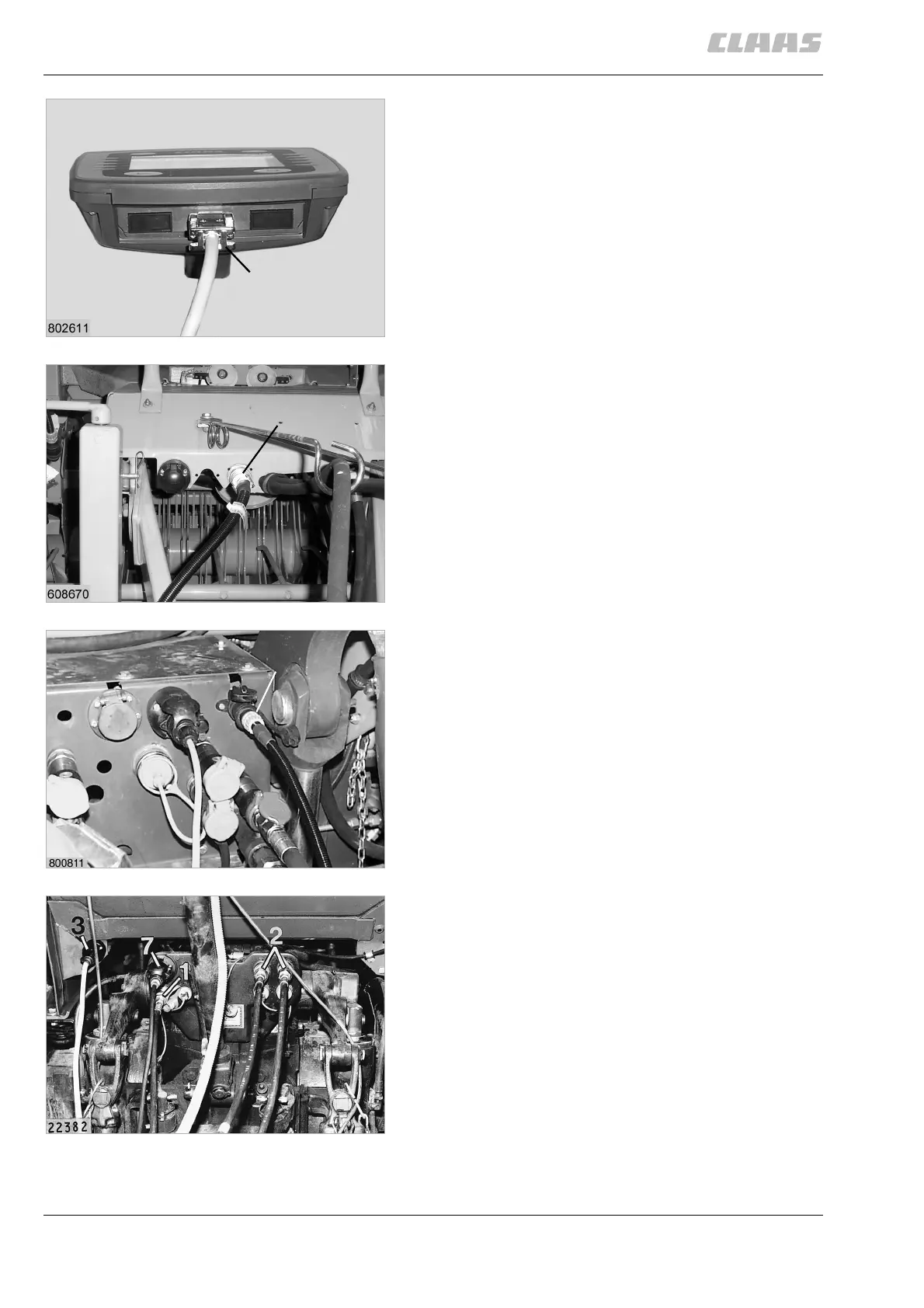

Connect the 9-pole flat plug (D) of the Y-shaped cable
to the Claas Communicator.
(Fig. 5)
Baler connections
Connect the 9-pin plug (B) of the Y-shaped cable for
baler and Claas Communicator power supply to the
baler.
(Fig. 6)
Connections on the tractor:
Plug 2-pin connector (A) on the Y-shaped cable for
baler and Claas Communicator power supply into the
utility socket on the tractor.
(Fig. 7)
Power supply
Plug the 2-pin connector (3) into the implement socket
on the tractor for power supply to the baler.
Machines with lighting equipment
Plug the 7-pin connector (7) into the socket provided
for this purpose.
(Fig. 8)
