000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 6.1.1

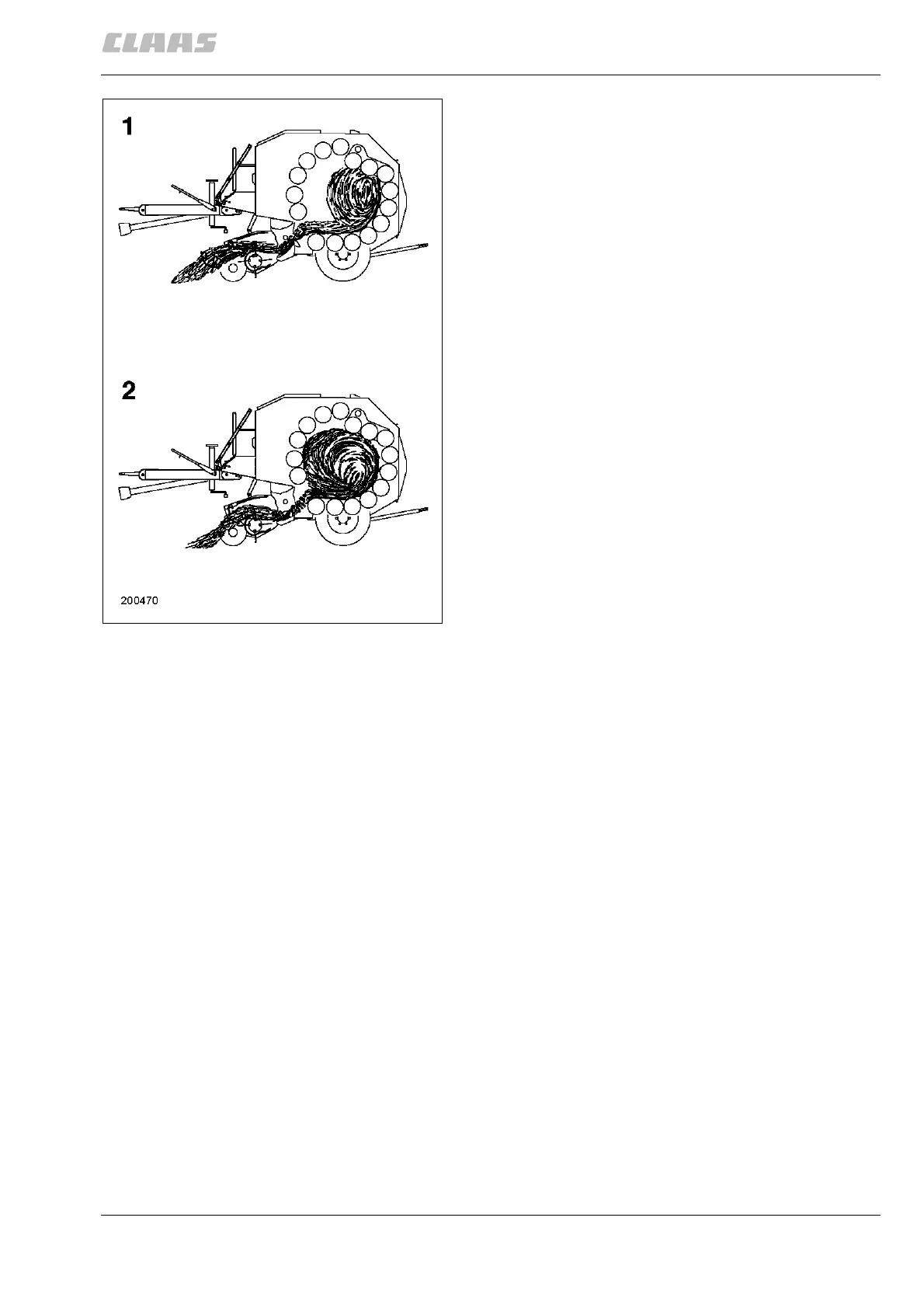

Description and function
Transmission of power
The baler is driven by a wide angle universal drive
shaft with a PTO speed of 540* rpm or 1000* rpm.
The tractor end of the universal drive shaft is fitted with
a wide angle universal joint. The machine end of the
shaft is fitted with a free-wheeling device and an
overload clutch or shear bolt*.
*Optional equipment
Pick-up
The pick-up gathers the crop tidily. The crop guard or
baffle plate ensures uniform intake. The crop gathered
by the pick-up is conveyed to the center by lateral feed
augurs and then taken up by the rotor, i.e. rapid
removal from the pick-up.
Crop guard
The crop guard is located above the pick-up and
assists in the intake of the crop.
Baffle plate
The baffle plate prevents the pick-up from entraining
short stalks, windrow, and aftermath.
Roller crop guard
The roller crop guard guarantees an even feed of the
rotor even with unfavourable harvesting conditions,
uneven swaths and short crops.
Cutting unit
(ROLLANT 250/254/255 RC)
The cutting unit cuts the crop to lengths of approx.
70 mm before it is fed into the bale chamber.
1
Description and function
