000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 7.2.1
Prior to operation
ATTACH THE BALER
Before hitching the propeller shaft, adjust the baler to
the tractor.
Danger!
Hitch the baler according to specifications.
Fasten and secure it only to the devices
provided and permitted for the purpose.
Always proceed very carefully when hitching
and unhitching the baler to/from the tractor.
To avoid damage to the propeller shaft and the drive, it
is essential to be aware of the precise hitch
dimensions to the tractor. To ensure safety while
driving, the coupling must be adjusted with the
counterweight pendant (see section on "Shortening
the propeller shaft").

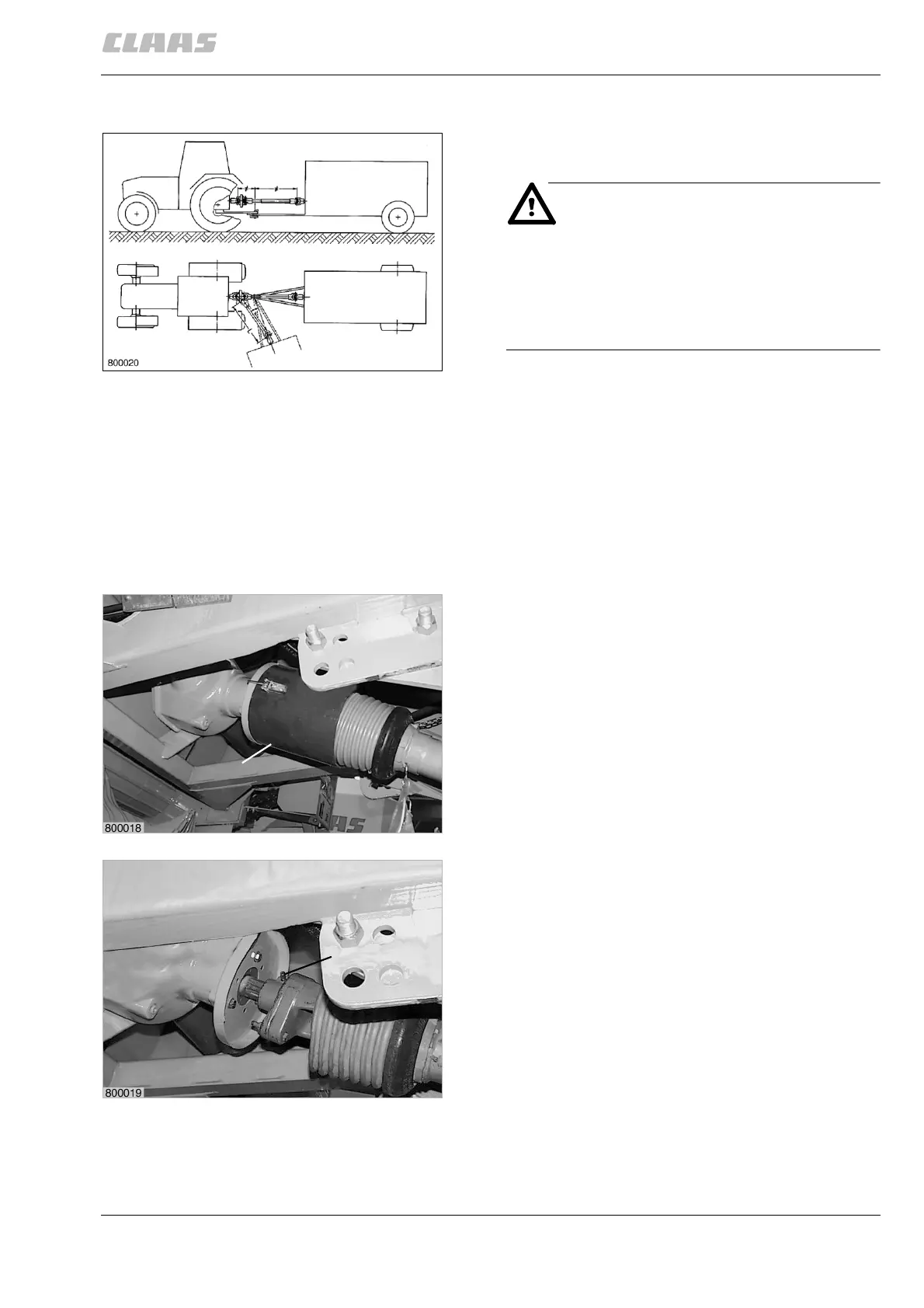

The maximum travel round bends is defined by the
length - when telescoped in - of the propeller shaft "L".
(Fig. 1)
Connecting the universal drive shaft to the baler
To connect the universal drive shaft, unfasten the
quick-release couplers and pull back the guard (S).
Universal drive shaft with shear bolt coupling:
Push the locking pin (1) of the universal drive shaft.
Push the universal drive shaft onto the gearbox input
shaft. Push the universal drive shaft until the locking
pin locks securely into place on the notch on the shaft.
(Fig. 2, 3)
1
S
2
1
3
Prior to operation
