Operation
Standard operation baling (ROLLANT 254/255)
Before operating for the first time

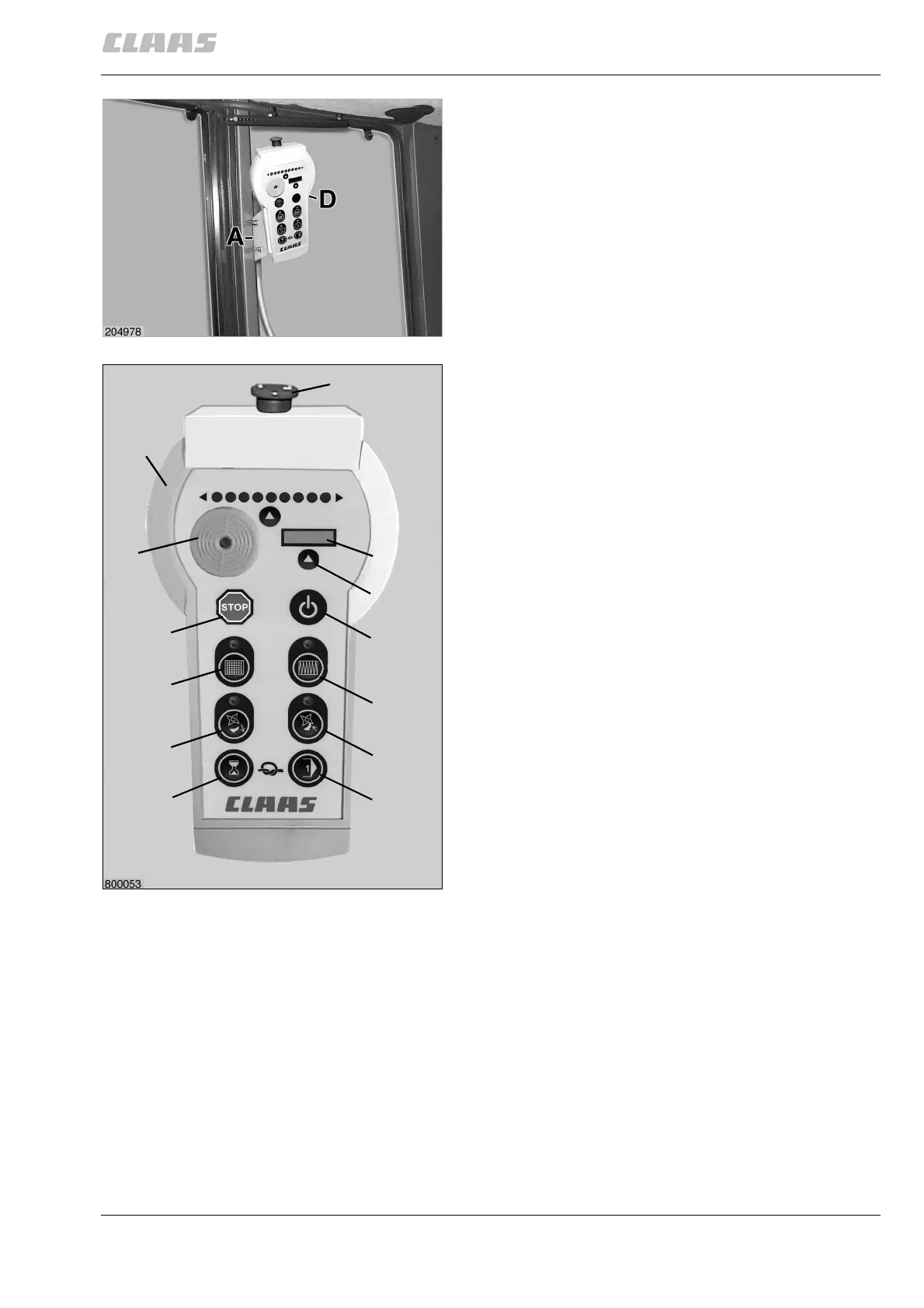

Operating box:
Attach the mounting support (A) supplied onto the
tractor at a position within reach of the driver.
Suspend the operating box (D) from the holder.
It contains switches and lights to control and monitor
the round baler.
(Fig. 7, 8)
Overview
(N) Emergency stop switch, control box ON / OFF
(A) Buzzer for audible warning signals
(Z) Bale counter
(R2) Reset bale counter
(K) Fault indicator light
(S) Stop sign, stop tractor immediately!
(1) Selection of twine wrapping with status indicator
(Lamp)
(2) Selection of net wrapping with status indicator
(Lamp)
(3) Roto Cut ON or swash in knives with
status indicator (Lamp)
(4) Roto Cut OFF or swash out knives with
Statusanzeige (Lamp)
(5) Trigger manual wrapping
(6) Delay automatic wrapping process
7
Z
R2
K
1
3
5
6
4
2
S
A
D
N
8
