000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 7.6.5
Prior to operation

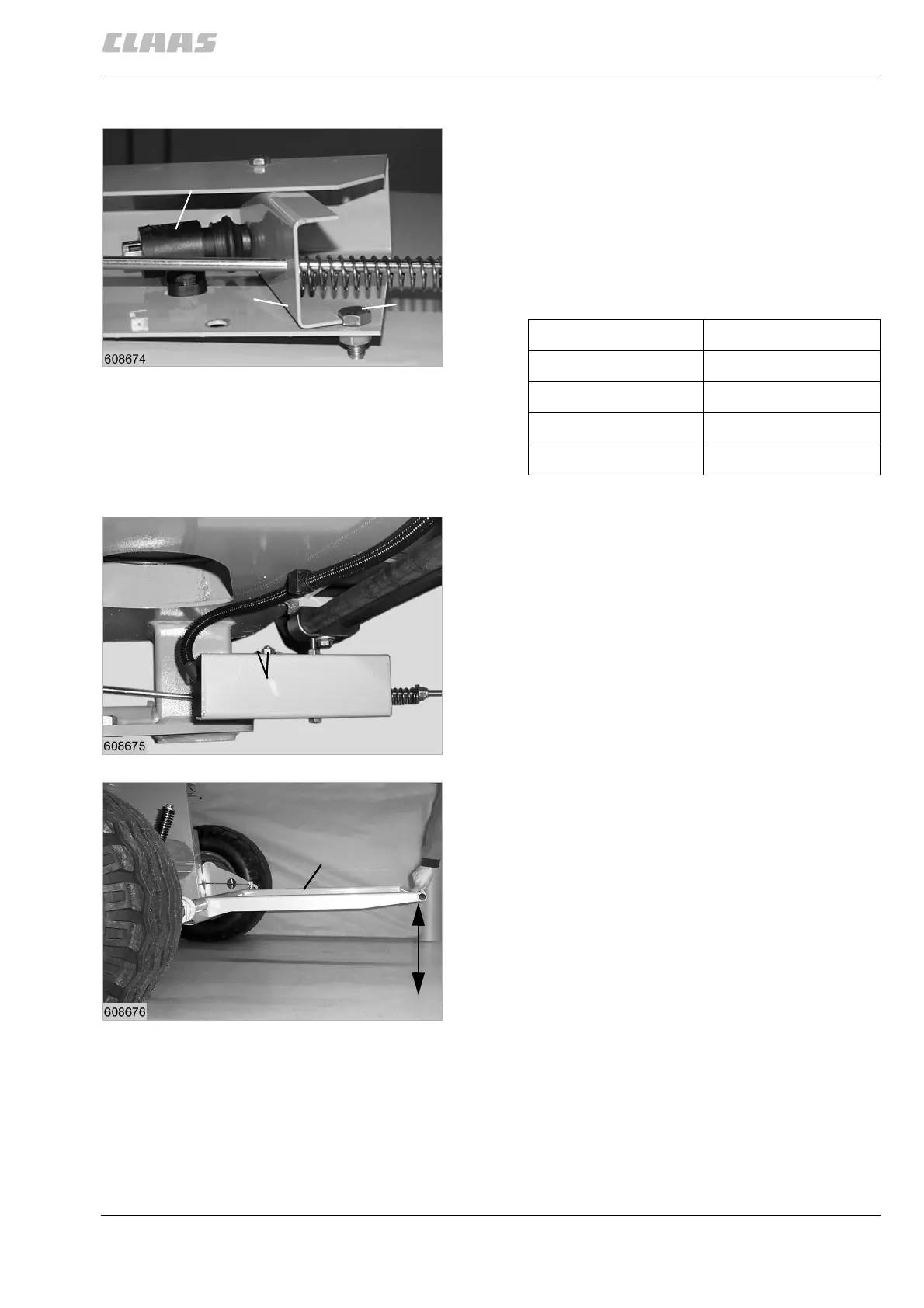

Ramp setting to signal bale ejection
Bale ejection is signalled with the aid of a sensor (A)
for the ramp position (E). The sensor is located behind
the right-hand wheel.
The sensor (A) is set in the factory. If the setting is not
balanced correctly, it can be changed using the
procedure described below.
The table inserted below specifies the ramp height
preset in the factory according to the tires fitted on the
baler.
Ensure that U-shaped plate (B) is aligned flush with
screw (C), i.e. that one edge of the screw is parallel
with plate (B).
Move sensor in longitudinal slots of screws (D) to set
ramp height (X). Bale ejection is signalled in this
manner. The further the sensor is moved away from
the plate, the smaller ramp height (X) via which the
acoustic signal is triggered
Open tailgate.
Simulate a connection with the aid of the control box.
Press on the ramp to check the setting: The acoustic
signal must sound when the ramp has reached height
(X).
If the height is not correct, repeat the setting.
(Fig.17,18,19)
A
B
C
17
Tyres: Ramp height (X)
11.5/80 - 15.3 8 PR 465 mm (18.3 in)
15.0/55 - 17 10 PR 465 mm (18.3 in)
19.0/45 - 17 10 PR 480 mm (18.9 in)
500/45 - 22.5 8 PR 545 mm (21.5 in)
D
18
E
X
19
