000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 7.2.11
Prior to operation

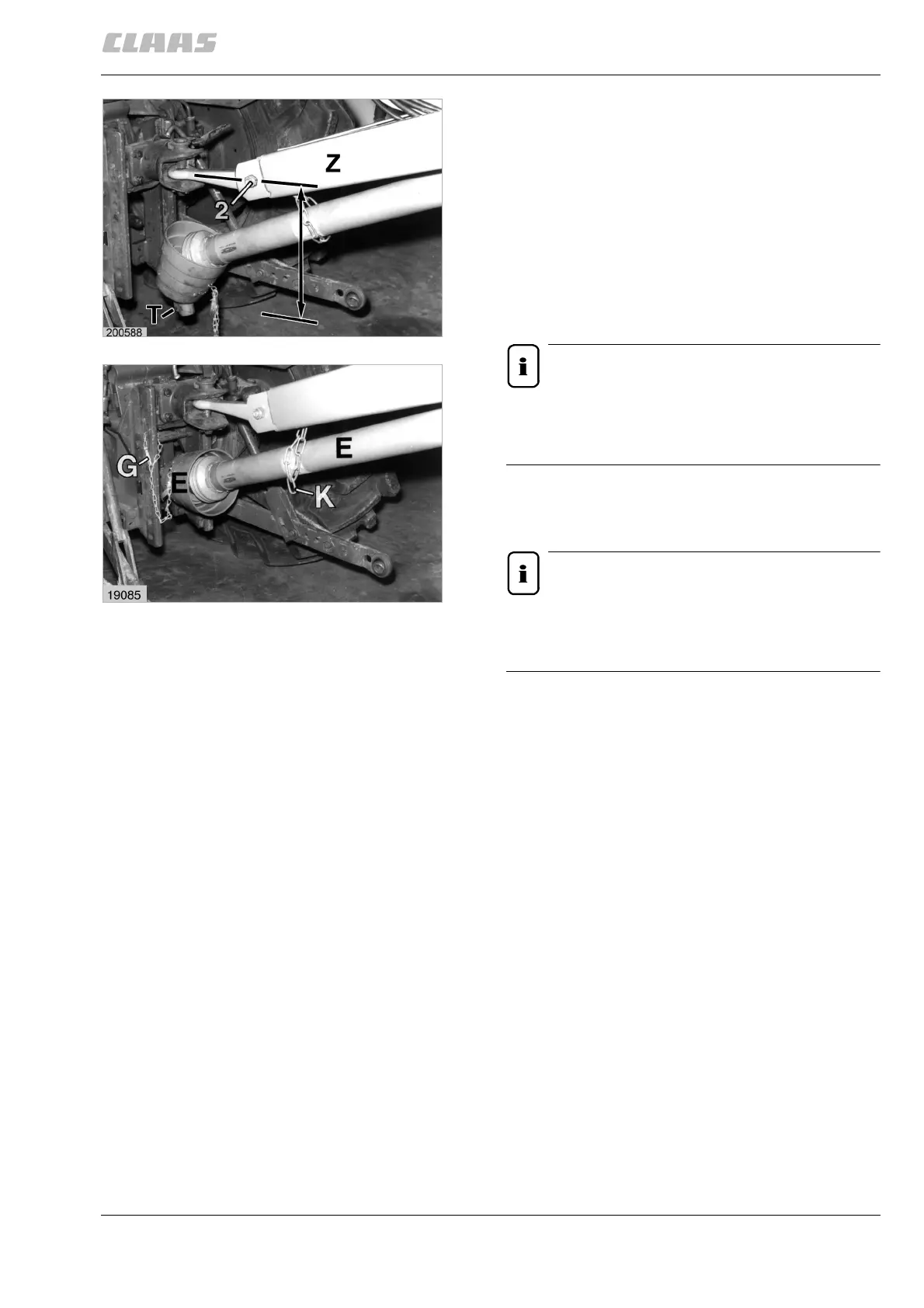

Attaching the universal drive shaft to the tractor
(for top-fitted tow jaw)
Slide the universal drive shaft onto the splined PTO
stub of the tractor until the locking pin (T) engages the
groove of the PTO stub correctly.
Hold the male and female sections of the universal
drive shaft side by side with the tractor turned sharply
to the right and left.
The sliding sections must overlap as far as possible at
this point, but must not collide when the universal drive
shaft is telescoped to its shortest position.
Note!
The overlap of the universal drive shaft must be
at least 200 mm (7.87 in) when travelling
straight ahead.
Shorten the sections of the universal drive shaft to the
required length if short hitch dimensions make it
necessary.
Note!
After cutting the sections of the universal drive
shaft to length, the cut surfaces must be
deburred.
After adaptation, connect the universal drive shaft to
the splined PTO stub of the tractor, making sure that
pin (T) locks into position correctly.
Fasten the chains (G) of the universal drive shaft
guards (E) to the drawbar and to the tractor with their
hooks.
The chain (K) is used to hold the universal drive shaft
when the baler is not connected to the tractor.
Before connecting the universal drive shaft, unhook
the chain (K) so that the universal drive shaft can
move freely.
(Fig. 29, 30)
29
30
