8.1.2 BA ROLLANT 240 - 250 - 254 - 255 - 000 299 119 5
Setting up the baler

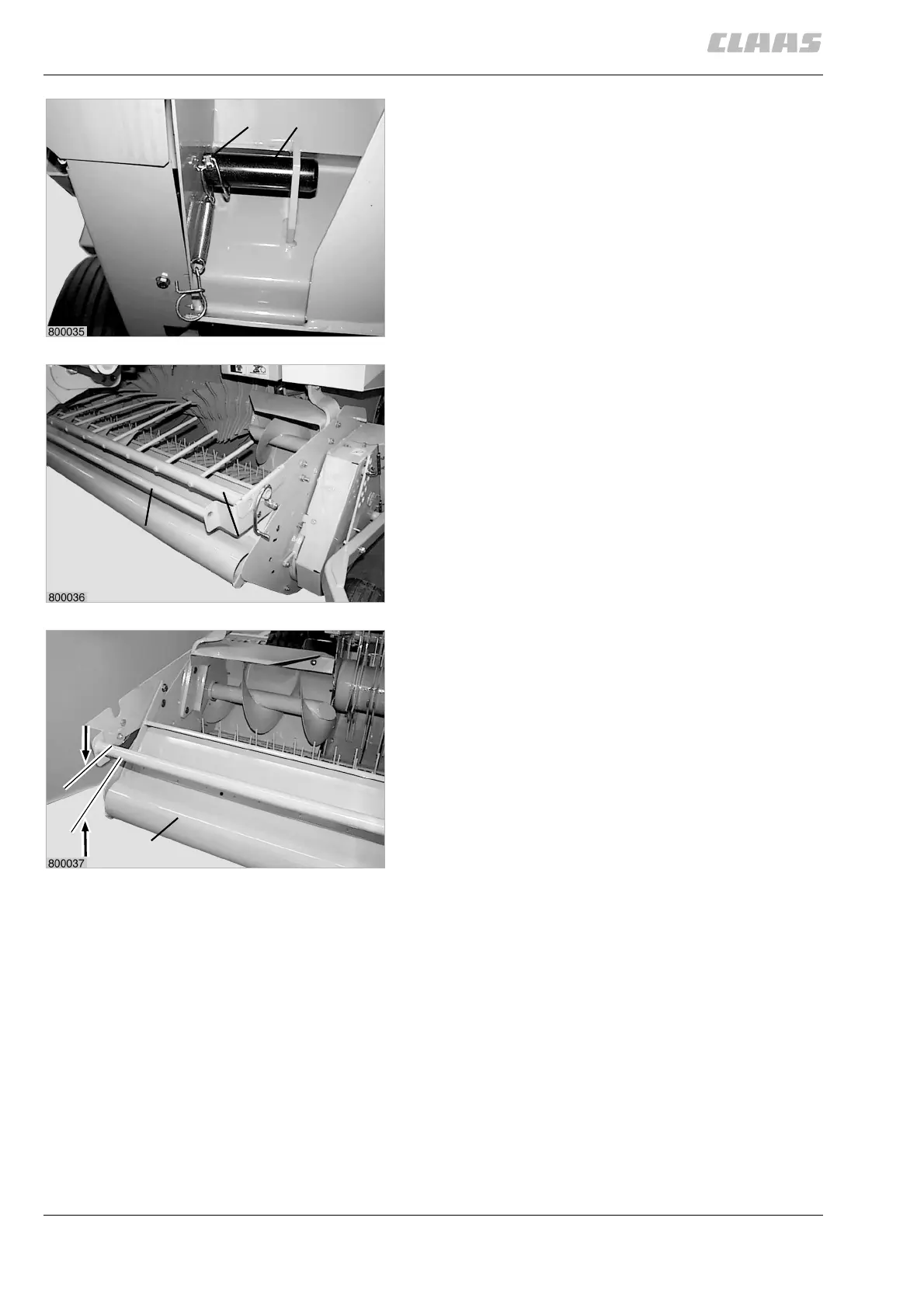

Support wheels
Installing and removing the support wheels:
For installation push the bearing journals (C) of the
support wheels through the bearings and secure them
from the back with linch pins (K).
Slide the required height adjustment hole of bar (L) on
the respective carrier arm onto the bolt and secure it
with the spring pin.
Perform disassembly in reverse order.
(Fig. 2, 3)
Pick-up crop guard
The pick-up crop guard (N) and the tube (S) are safety
devices and may not be removed while the baler is in
use.
The crop guard (N) ensures that the material is fed
steadily into the bale chamber even when windrows
are uneven.
(Fig. 4)
Short crop baffle
A baffle (A) can also be installed to pick up short crops,
light windrows and second-cut hay.
The baffle helps to maintain an even crop feed and
prevents the windrow rolling in front of the pick-up.
(Fig. 5)
C
K
3
N
S
4
A
B
5
