Group 20, Drive Axle
20-4-2 • Disassembly and Reassembly of drive axle SM 765, Nov ’06

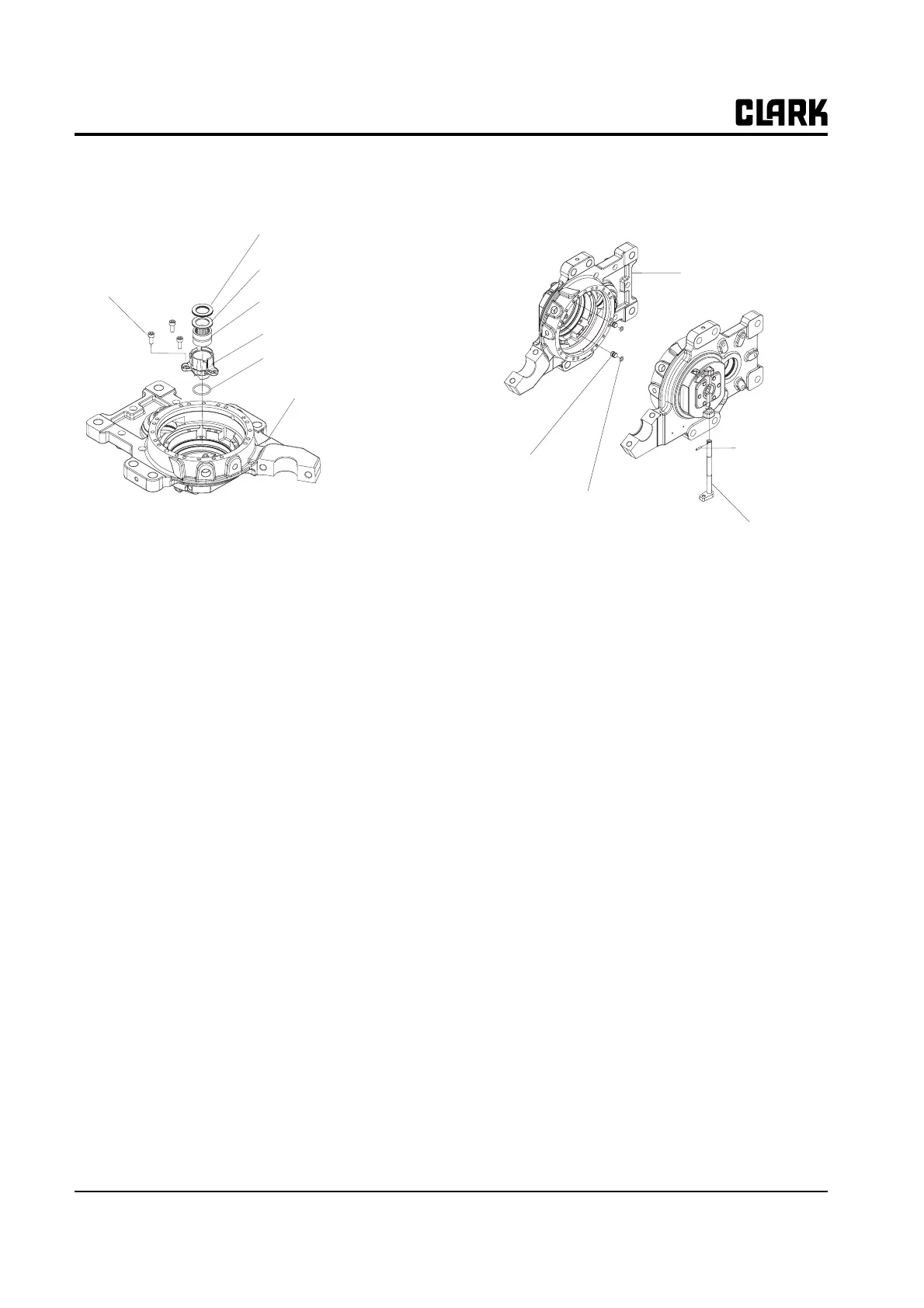

Disassembly of bearing boss
Disassembly of bearing boss
• Remove the thrust needle bearing and shim from
the bearing boss.
• Remove the bearing boss fixing bolts (3EA) from
the plate housing with appropriate tool.
• Pay attention to the damage or separation of O-
ring from bearing boss.
N
TE
When reassembly, use new O-ring.
Disassembly of parking lever and
drive shaft
Disassembly of parking brake lever and
drive shaft
• Remove the spring pin by using pliers.
• Remove the parking brake pin and O-ring from the
plate housing by using rubber hammer and screw
driver.
N
TE
Pay attention not to damage the O-ring of
parking brake pin.
• Remove the parking brake lever from the plate
housing.
Needle roller bearing
Bearing boss
O-ring
Plate housing
Thrust needle bearing
Bolt
Spacer (shim)
Housing plate
Pin spring
Parking brake lever
O-ring
King brake pin
