Group 20, Drive Axle
SM 765, Nov ’06 Disassembly and Reassembly of drive axle • 20-4-3
Disassembly of drive shaft ass'y
• Remove the snap ring from the drive shaft.
• Remove the gear (13T) and key from the drive
shaft.
• Remove the ball bearing from the drive shaft by
using gear puller.
(When install the gear puller, fix it to inner ring of
bearing and remove it)
Disassembly of master hinge,
brake fitting and plug
Disassembly order of brake fitting and plug
• Remove the master hinge fixing socket bolts
(2EA) from plate housing by using appropriate
tool.
• Remove the fittings of brake port and brake air
bleeding port.
• Remove the level plug and insertion plug.

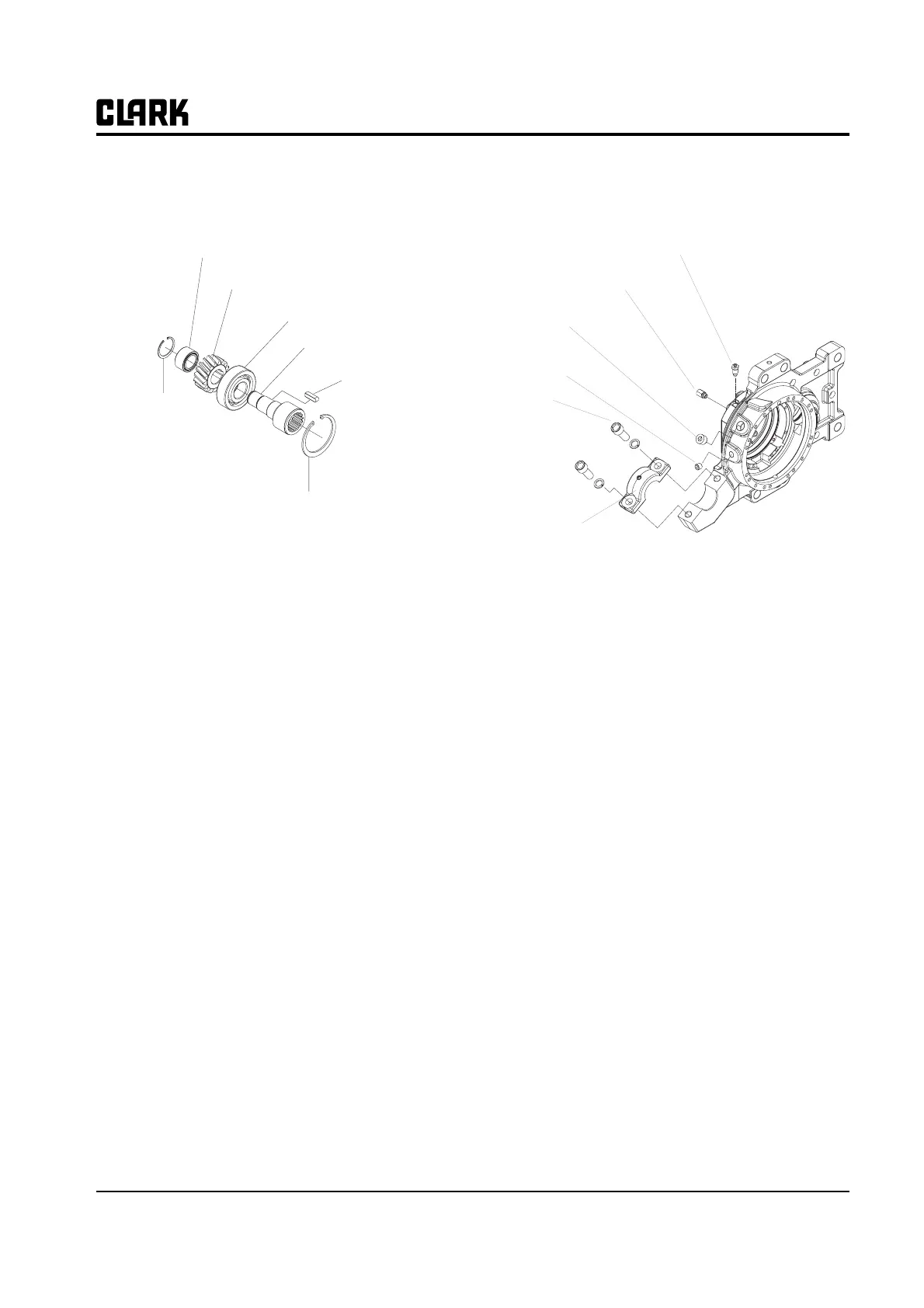

Bearing
Gea(13T)
Bearing
Drive shaft
Key
Snap ring
Snap ring
Brake air bleeding port
Brake port
Plug
Level plug
Bolt
Master hinge
To Next Page
