Group 22, Wheels and Tires
22-2-6 • Pneumatic Wheels and Tires SM 765, Nov ’06
Tire Replacement and Wheel
Reassembly

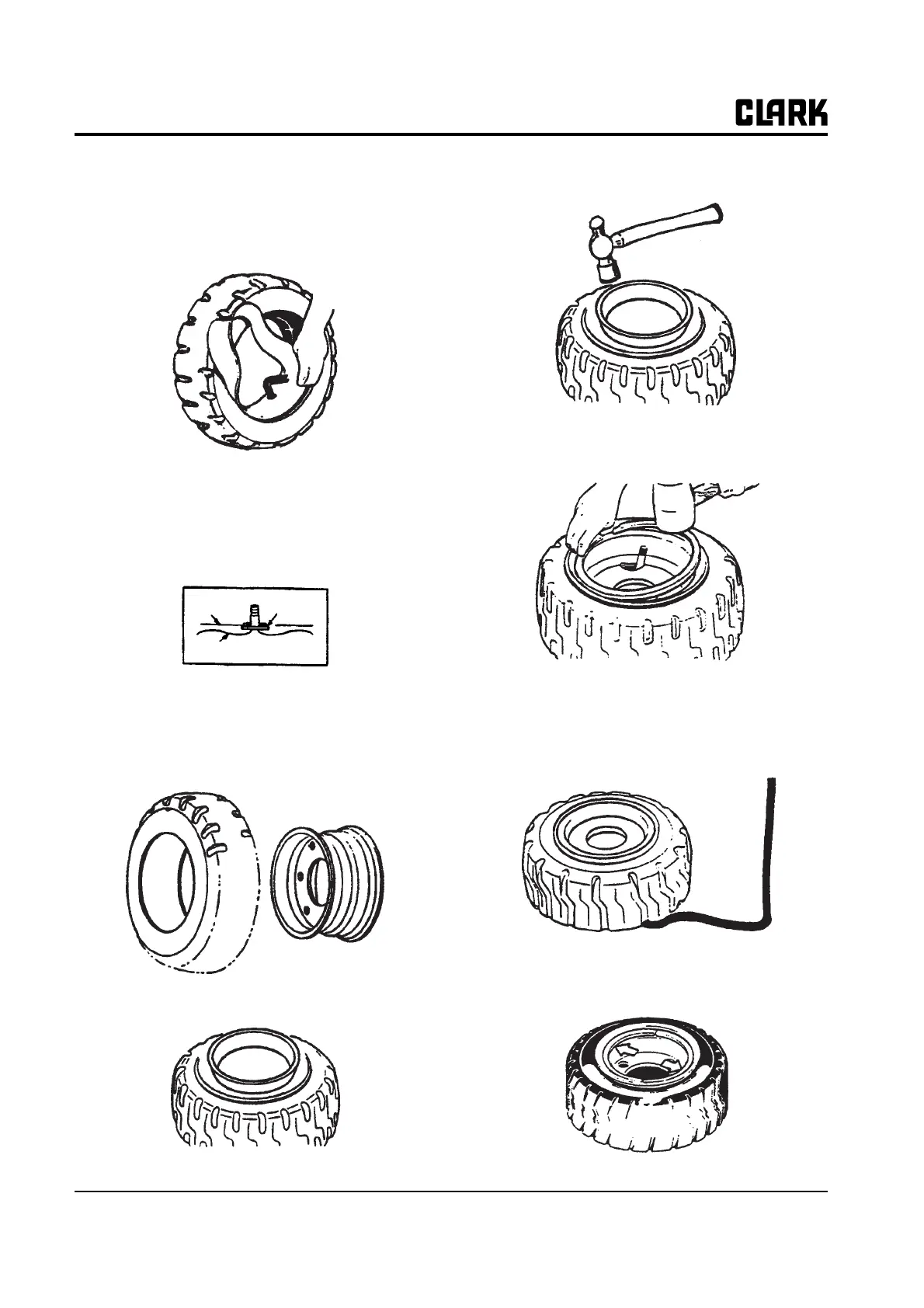

1. Put the tube into the tire.
IMP
RTANT
Install washer 22.123 on tube over valve stem
before flap is installed, when specified. See
sketch. Refer to Service Parts List.
2. Put the rubber tube protector(flap) over the tube.
3. Install the tire onto the wheel rim, against the bead
seat area.
4. Put the wheel wedge over the rim.
5. Install the wheel wedge.
6. Put the side ring over the rim and install the lock ring
as shown.
7. Connect air chuck and turn the tire over with the
valve stem down. Put 21 kPa (3 psi) of air into the
tire.
8. Turn wheel to the other side. Check to make sure
lock ring is in correct location.
Wheel
Washer
Tube
