Group 25, Steering Column and Gear
25-5-6 • Steering Gear Overhaul SM 765, Dec ’06

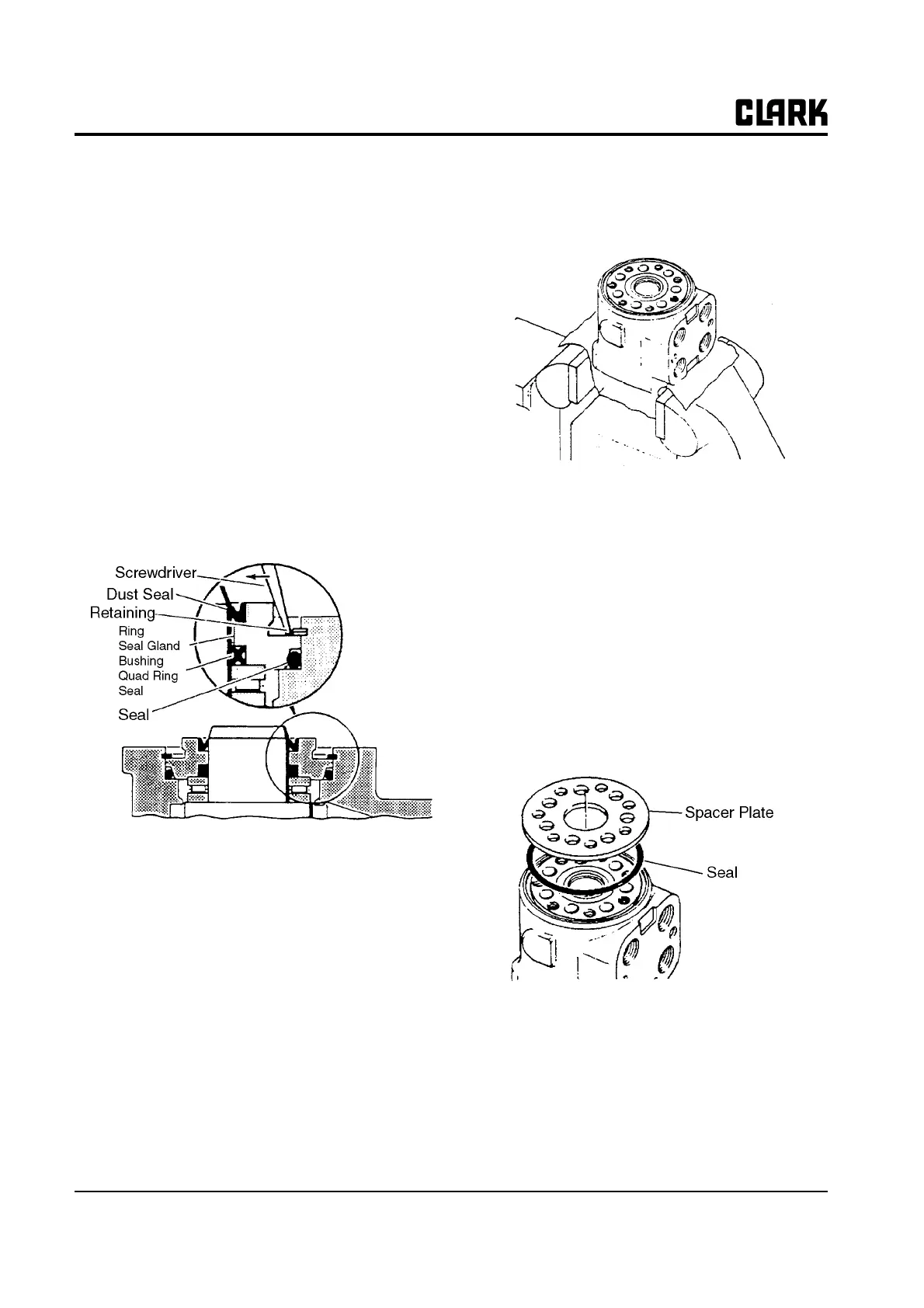

16. Install seal gland bushing over the spool end with a
twisting motion. Tap the bushing in place with a rub-
ber hammer. Make sure the bushing is flush against
the bearing race.
On those units which use the Teflon seal, install the
Teflon back-up ring into the recess cut into the seal
gland bushing. Install the Teflon seal over the spool
end, then carefully install the seal gland bushing over
the spool end using a rotary motion.
N
TE
The seal gland bushing which is used with the
Teflon seal is not the same as the seal gland
bushing used with the standard quad-ring
seal. The seal gland bushing with the Teflon
seal has an identification groove cut into the
outer diameter of the bushing. The grooved
bushings can only be used with the Teflon
seals and the non-grooved bushings used only
with the quad-ring seals.
17. Install retaining ring in housing. After installing ring,
tap on ring or pry with screwdriver around entire cir-
cumference of ring to properly seat ring in groove.
Meter (Gerotor) End
18. Clamp housing in vise, as shown. Clamp lightly on
edges of mounting area. Do not overtighten jaws.
N
TI
E
Check to ensure that the spool and sleeve are
flush or slightly below the surface of the
housing.
IMP
RTANT
Clean the upper surface of the housing by
wiping with the palm of clean hand. Clean
each of the flat surfaces of the meter section
parts in a similar way when ready for reas-
sembly. Do not use cloth or paper to clean
surfaces.
19. Install 3-inch diameter seal in housing.
20. Install spacer plate. Align bolt holes in spacer plate
with tapped holes in housing.
