Group 25, Steering Column and Gear
SM 765, Dec ’06 Steering Gear Overhaul • 25-5-7

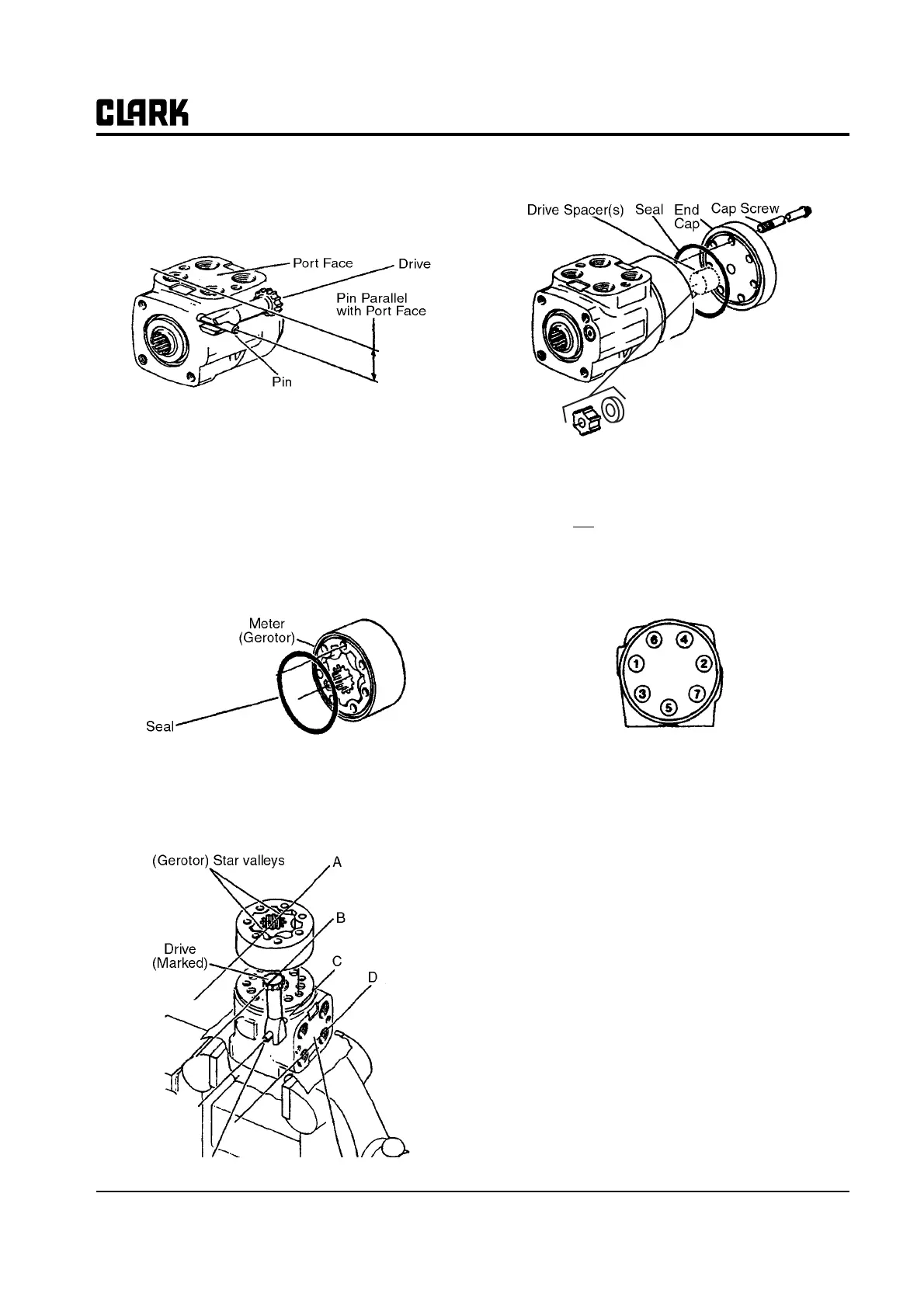

21. Rotate spool and sleeve assembly until pin is parallel
with port face. Install drive, making sure you engage
drive with pin.
IMP
RTANT
Failure to properly install drive and pin may
cause unit to self steer.
N
TE
To assure proper alignment, mark spline end
of drive shaft with a line parallel to slot on
other end, before installing.
22. Install 3-inch diameter seal in meter (gerotor).
23. With seal side of meter toward spacer plate, align star
valleys on drive. Note the parallel relationship of ref-
erence lines A, B, C, and D in figure. Align bolt
holes without disengaging meter from drive. Be sure
star has engaged drive spline in position shown.
24. Install drive spacer(s) when used, in meter.
25. Install 3-inch diameter seal in end cap.
26. Install end cap on gerotor, and align holes.
27. Install 7 dry
cap screws in end cap. Pretighten screws
to initial torque of 17 N⋅m (150 in⋅lb), then torque
screws to final torque of 31 N⋅m (275 in⋅lb) in the
sequence shown.
28. Inspect the assembly to be sure all parts have been
installed and fasteners correctly installed and tight-
ened.
