Group 38, Counterweight and Chassis
38-4-2 • Floor Plate, Seat and Seat Deck Removal and Installation SM 765, Nov ’06
CAUTION
!
SAFE PARKING. Before working on truck:
1. Park truck on a hard, level and solid sur-
face, such as a concrete floor with no
gaps or breaks.
2. Put upright in vertical position and fully
lower the forks or attachment.
3. Put all controls in neutral. Turn key
switch OFF and remove key.
4. Apply the park brake and block the
wheels.

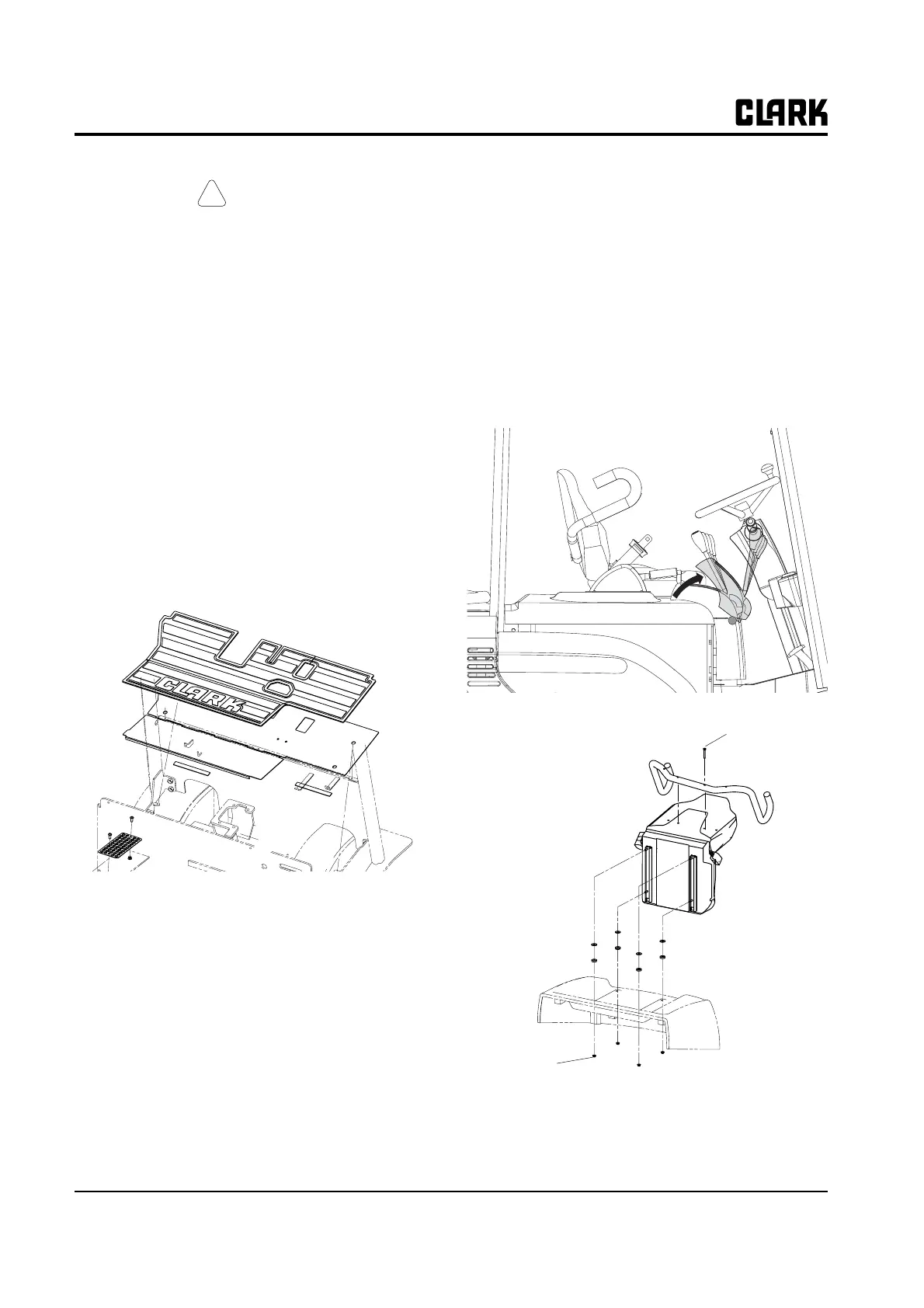

Floor Plate Removal and Installation
1. Tilt the steering column fully forward.
2. Fold the floor plate on its hinge and lift out the oper-
ator’s compartment. Rubber mat lifts out with floor
plate. Floor plate is not fastened to the truck.
3. To replace the floor plate, position the front of floor
plate first, then unfold it out into position.
IMP
RTANT
Make sure the accelerator pedal has a full
stroke and does not bind.
Operator's Seat Deck and Hood
Removal and Installation
Removal
1. Push the hydraulic control lever bracket which locks
the deck of operator's seat. Pull the handle on the
right side of hydraulic control lever bracket and push
the lever bracket forward, then the deck of operator's
seat can be lifted.
2. Remove the nuts holding the seat slide studs to the
seat deck.
3. The seat deck, which is held on the seat deck by the
seat mounting fasteners, may now also be removed.
Torque to :
6-13 N.m
(60-120 in-lb)
Torque to :
23-25 N.m
(203-221 in-lb)
