Group 38, Counterweight and Chassis
SM 765, Nov '06 Floor Plate, Seat and Seat Deck Removal and Installation • 38-4-3
4. Remove the hood mounting fasteners and remove the
hood.
Reinstallation.
1. Reinstall the hood in reverse order that it was
removed.
WARNING
!
Failure to follow this reinstallation procedure
may result in operator injury. Ensure full
latch engagement for battery retention.

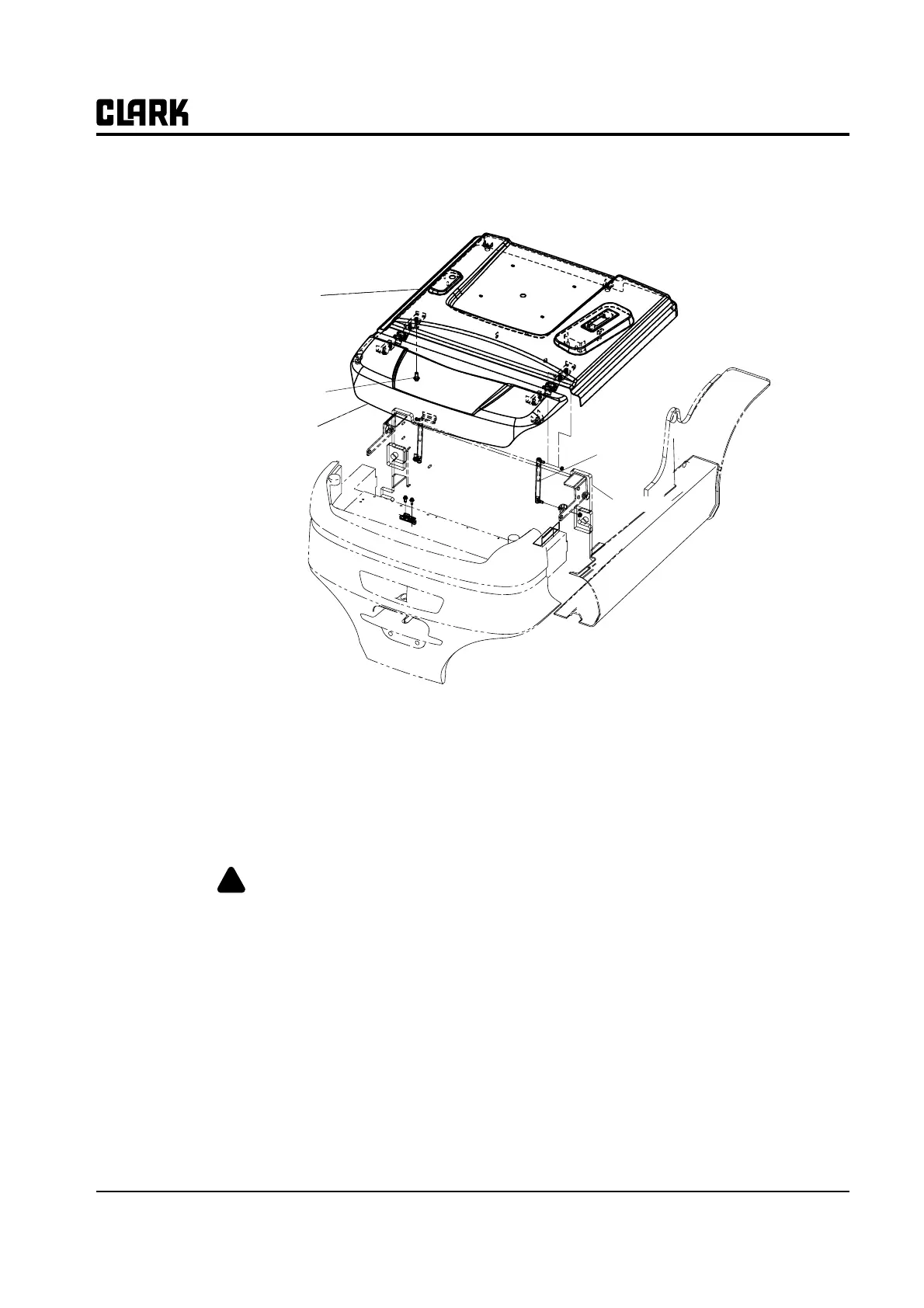

Seat deck
mounting bolt
Seat Deck
Rear hood
Frame
Gas spring
