10 Upgrading IVC-32 and LMC-64 cards
To upgrade IVC-32 and LMC-64 cards, follow the same upgrade procedures for E-QUE
cards (MK1), as described in 9 Upgrading E-QUE cards.
At EHX v9.1, the application code for all 3 cards (E-QUE, IVC-32 and LMC-64 cards) is
the same.
Note:
This guide is laid out in the order in which you must upgrade your Eclipse HX software
and hardware devices. For a quick reference to upgrading your system, see 3 Quick
reference: Upgrading to Eclipse HX.
10.1 Identifying MK1 and MK2 IVC-32 / LMC-64 cards
To find out if the IVC-32 / LMC-64 card is either a MK 1 or a MK 2 card, run a firmware
report in EHX. The firmware report identifies the card as either a MK 1 or a MK 2 card.
To use the Firmware report tool:
a. Go to EHX> System> Layout .
b. Right click the matrix icon.
c. Select Firmware > Firmware report.
You can also identify MK1 and MK2 cards visually.

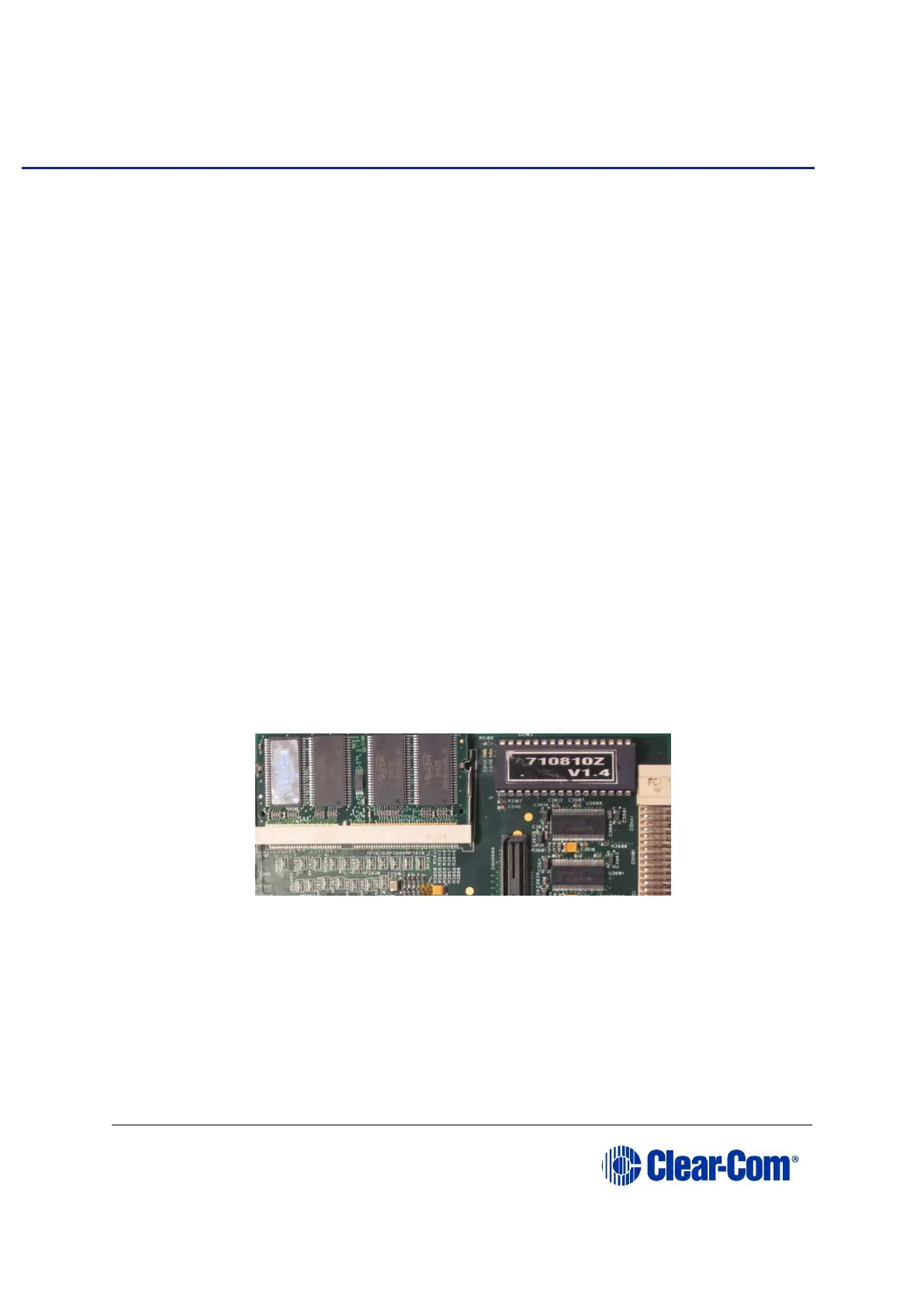

The MK1 IVC-32/LMC-64 card is green. It features a large chip in the upper right hand
corner of the PCB (as it is installed in the matrix):
Figure 10-1: IVC-32/LMC-64 MK1 card detail
The MK2 IVC-32/LMC-64 card is blue. If you look at the upper right hand corner of the
card, the large chip no longer forms part of the PCB:
