Eclipse | Upgrade Guide

Page 222

Appendix I: i-Station converter cable

wiring and rear panel layouts

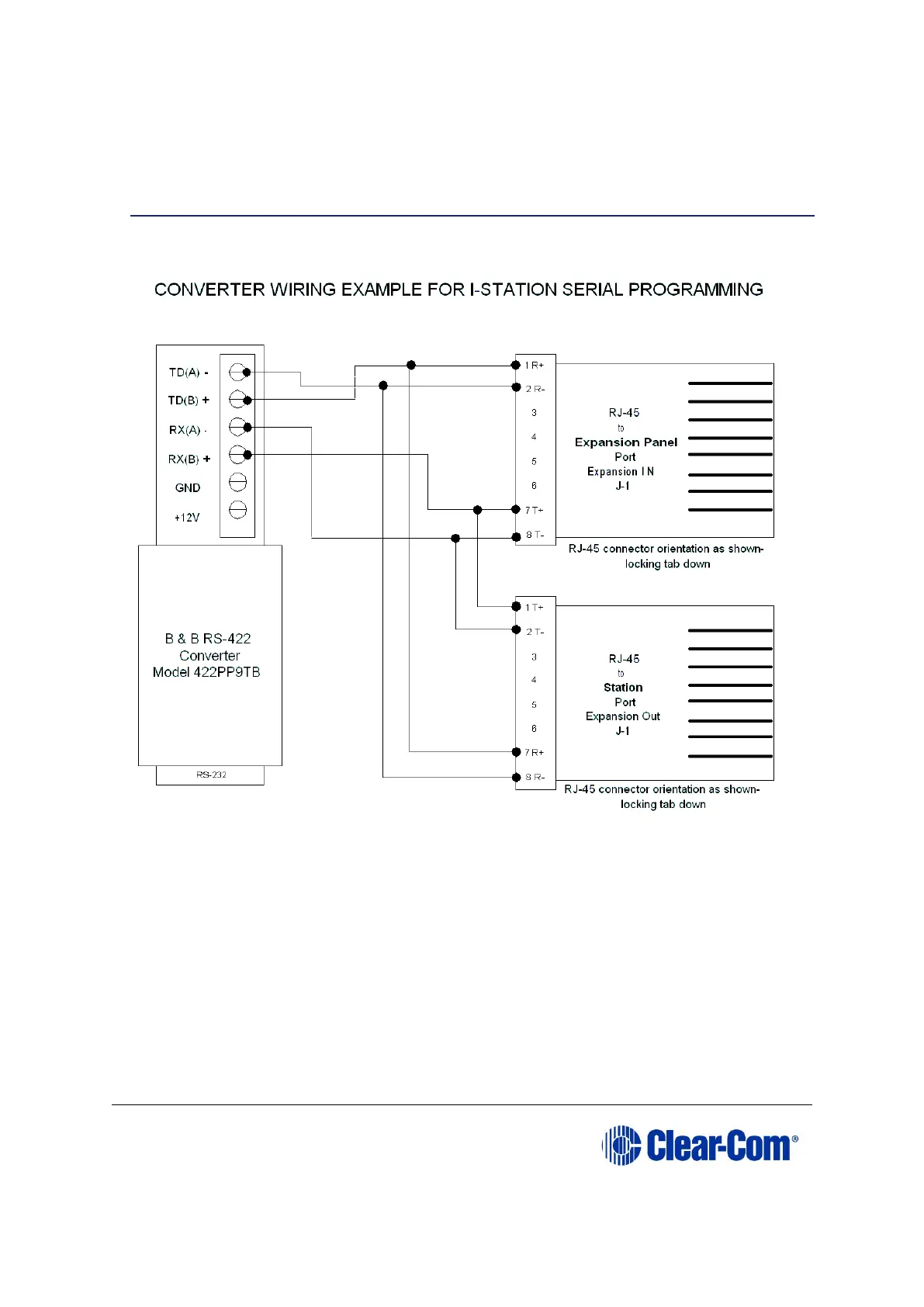

Figure 17-27: Converter cable wiring example for i-Station serial programming
