Safety symbols

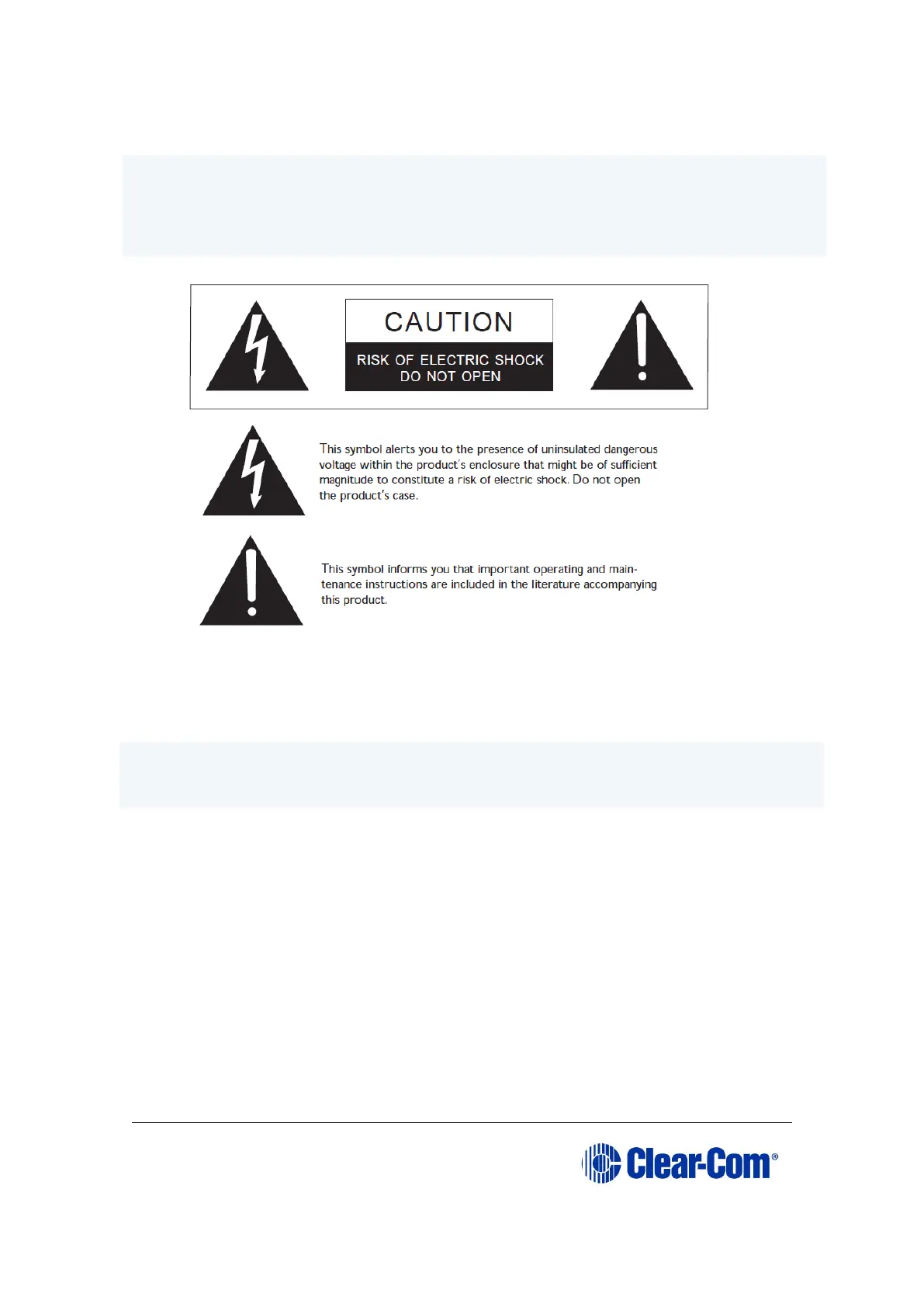

Familiarize yourself with the safety symbols in Figure 1 below. These symbols are displayed
on the apparatus and warn you of the potential danger of electric shock if the
system is used improperly. They also refer you to important operating and
maintenance instructions in the product user manual.
Figure 1-1: Safety symbols
Mains power cord
Eclipse HX matrices are powered by an internal power supply. The cord to connect
the internal power supply to the mains supply must conform to the following:
• The mains power cord shall have an IEC C13 connector at one end and a
mains power plug at the other end.
• An IEC C13 plug has three pins, the center pin carrying the earth / ground.
The other two pins carry neutral and live circuits.
• The conductors of the mains cords shall have adequate cross-sectional area
for rated current consumption of the equipment.
• The mains plug that connects to the mains supply must be approved for use
in the country where the equipment is to be used.
• The mains power cord must be an IEC mains power cord complying with
standard IEC60320; IEC320/C13.
• Mains power cords used in the U.S. must also comply with standard UL817.
