9 Upgrading E-QUE cards
The following chapter describes how to upgrade E-QUE cards (both MK1 and MK2).
Note: This guide is laid out in the order in which you must upgrade your Eclipse HX software
and hardware devices. For a quick reference to upgrading your system, see 3 Quick
reference: Upgrading to Eclipse HX.
9.1 Identifying MK1 and MK2 E-QUE cards
To identify the E-QUE card as a MK1 or a MK2 card, run a firmware report in EHX. To use
the Firmware report tool:
a. Go to EHX> System> Layout .
b. Right click the matrix icon.
c. Select Firmware > Firmware report.
You can also identify MK 1 and MK 2 cards visually.

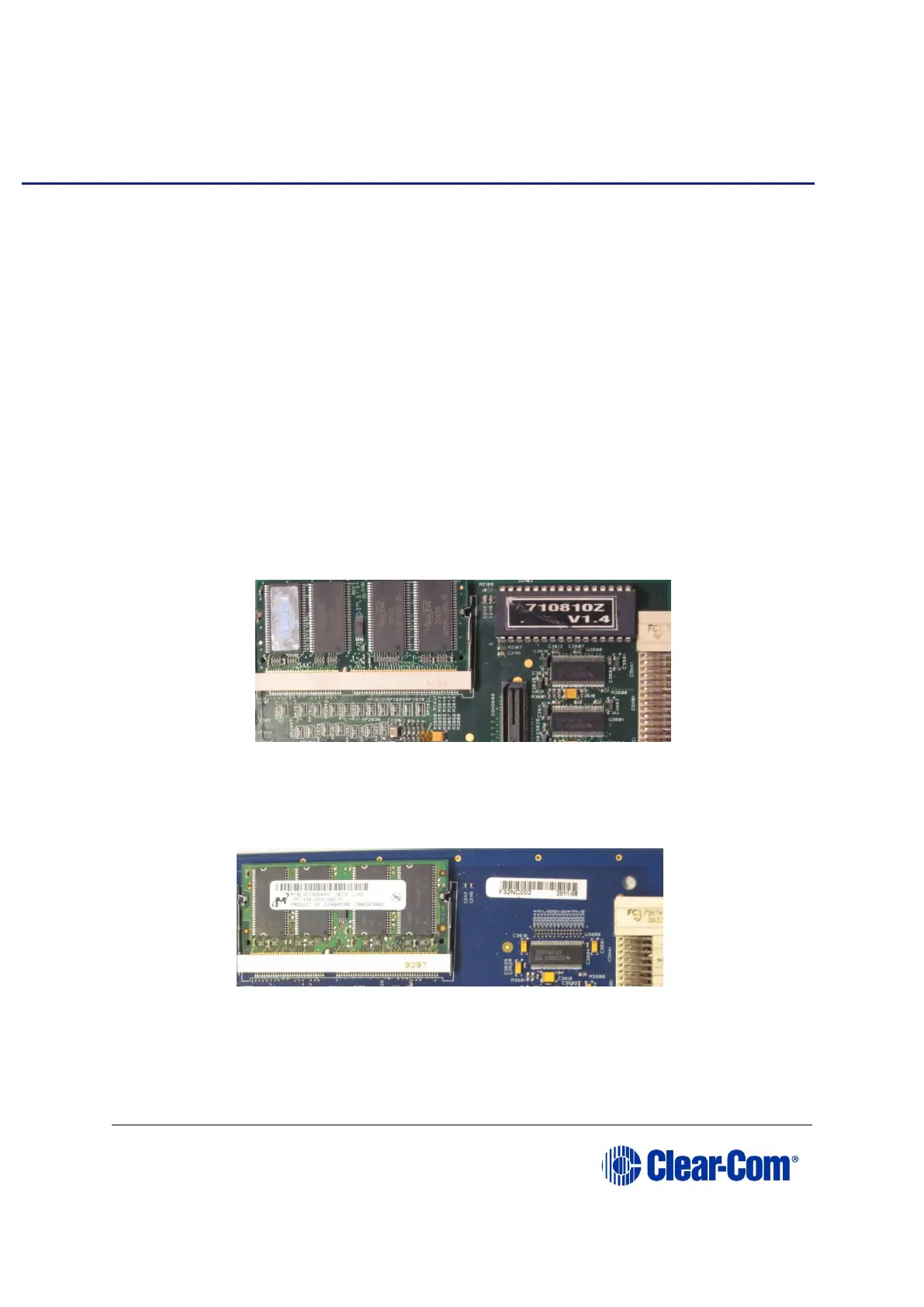

The MK 1 E-QUE card is green. It also features a large chip in the upper right hand
corner of the PCB (as it is installed in the matrix):
Figure 9-1: MK 1 E-QUE card detail
The MK2 E-QUE card is blue. The large chip no longer forms part of the PCB:
Figure 9-2: MK 2 E-QUE card detail
