Eclipse | Upgrade Guide

Page 148

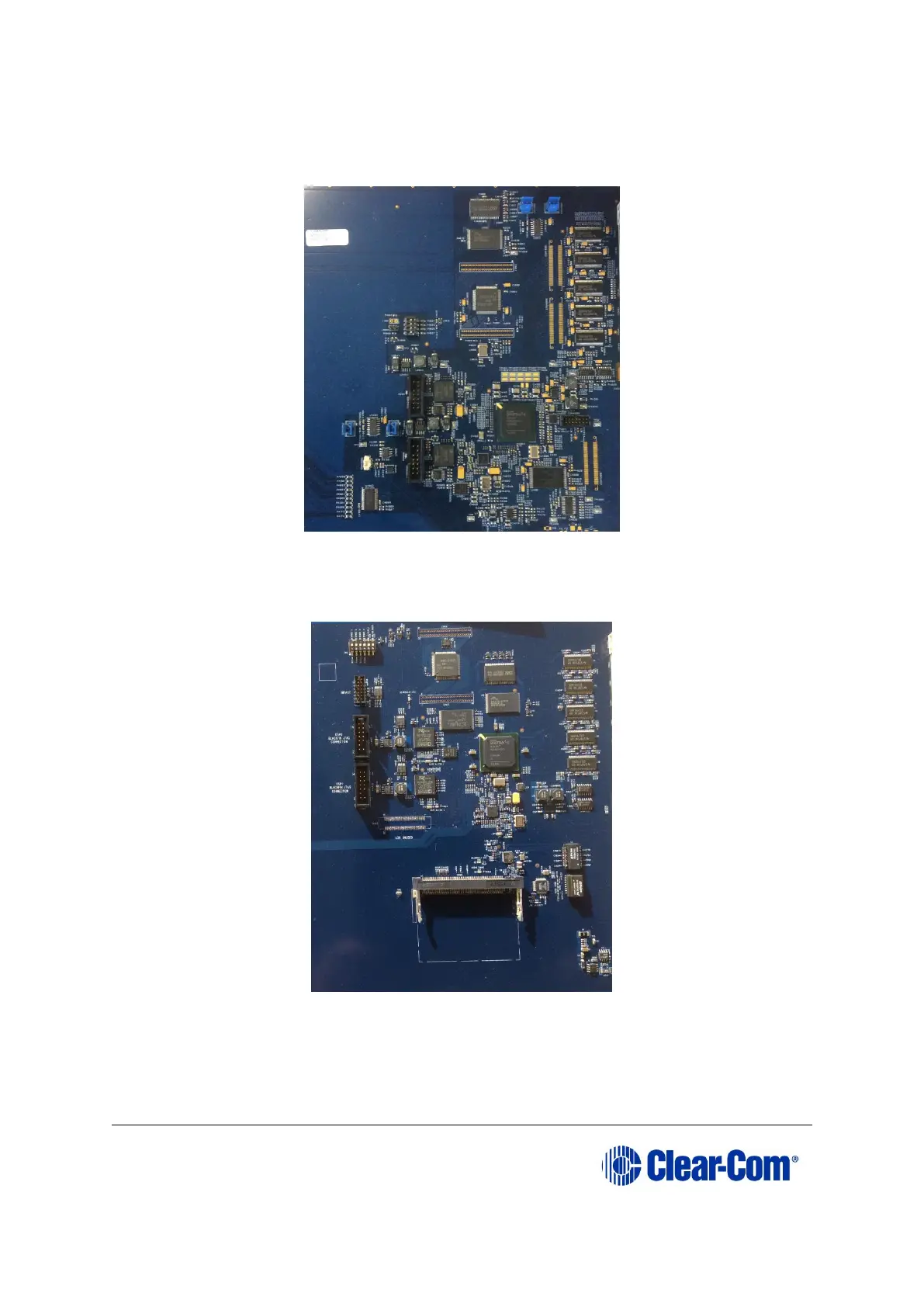

The MK 1 E-MADI64 card is blue or green:

Figure 11-1: MK 1 E-MADI64 card detail

The MK2 E-QUE card is blue:

Figure 11-2: MK 2 E-MADI64 card detail
