User Guide| FreeSpeak II for Eclipse HX
6 Operating the FS II IP Transceiver (IPT)
This chapter describes how to use the FreeSpeak II IP transceiver.
For information about operating the FS II Transceiver that connects to an E-Que card, see
Operating the FS II Transceiver on page 71.
The FS II IP Transceiver (IPT) forms the transmission link between the FS II beltpacks and the
matrix. It offers internal omnidirectional (all directions/spherical) coverage. Multiple units are used
to support the beltpacks and to create larger, customized coverage areas. Each transceiver is
connected to the E-IPA-HX card on the matrix via an AES67 connection.

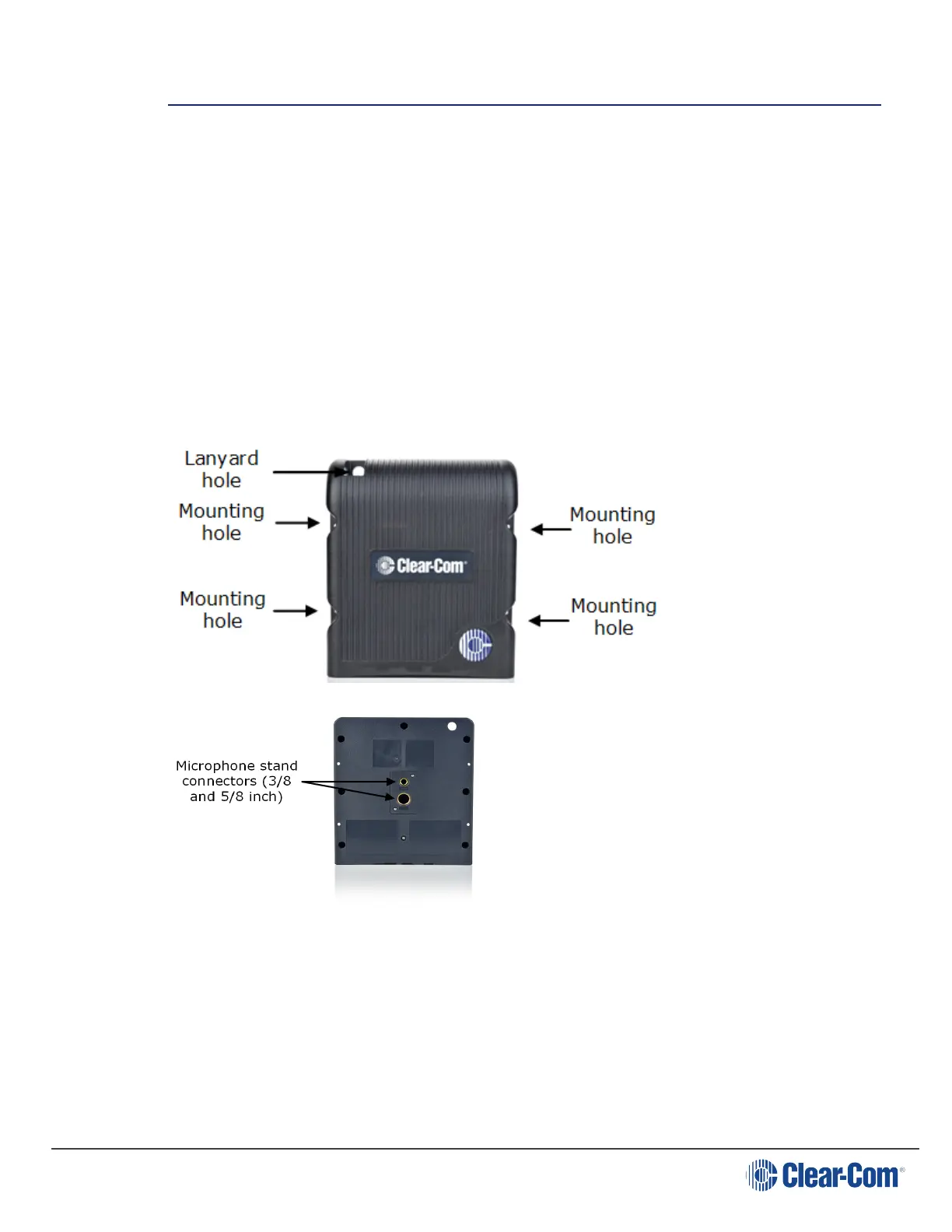

The unit has two methods of fixing:
l Four screw points for mounting on a flat surface.
l Two microphone stand connectors, 3/8 in and 5/8 in.
6.1 IP rating (Protection Marking)
The transceiver has an IP rating of IP53 so it can be mounted outside and will be resistant to
weather conditions.
