User Guide| FreeSpeak II for Eclipse HX
8 Using the FreeSpeak II Base splitter (FSII-SPL)
The FreeSpeak II Base transceiver splitter is a device that connects up to five transceivers to a
FreeSpeak Base (both FreeSpeak I and FreeSpeak II, 1.9 and 2.4 systems) or an Eclipse matrix.
Using the splitter, audio can be routed from the Base to transceivers either via Cat5/6 Ethernet
cable (RJ45) or a Fiber connection.

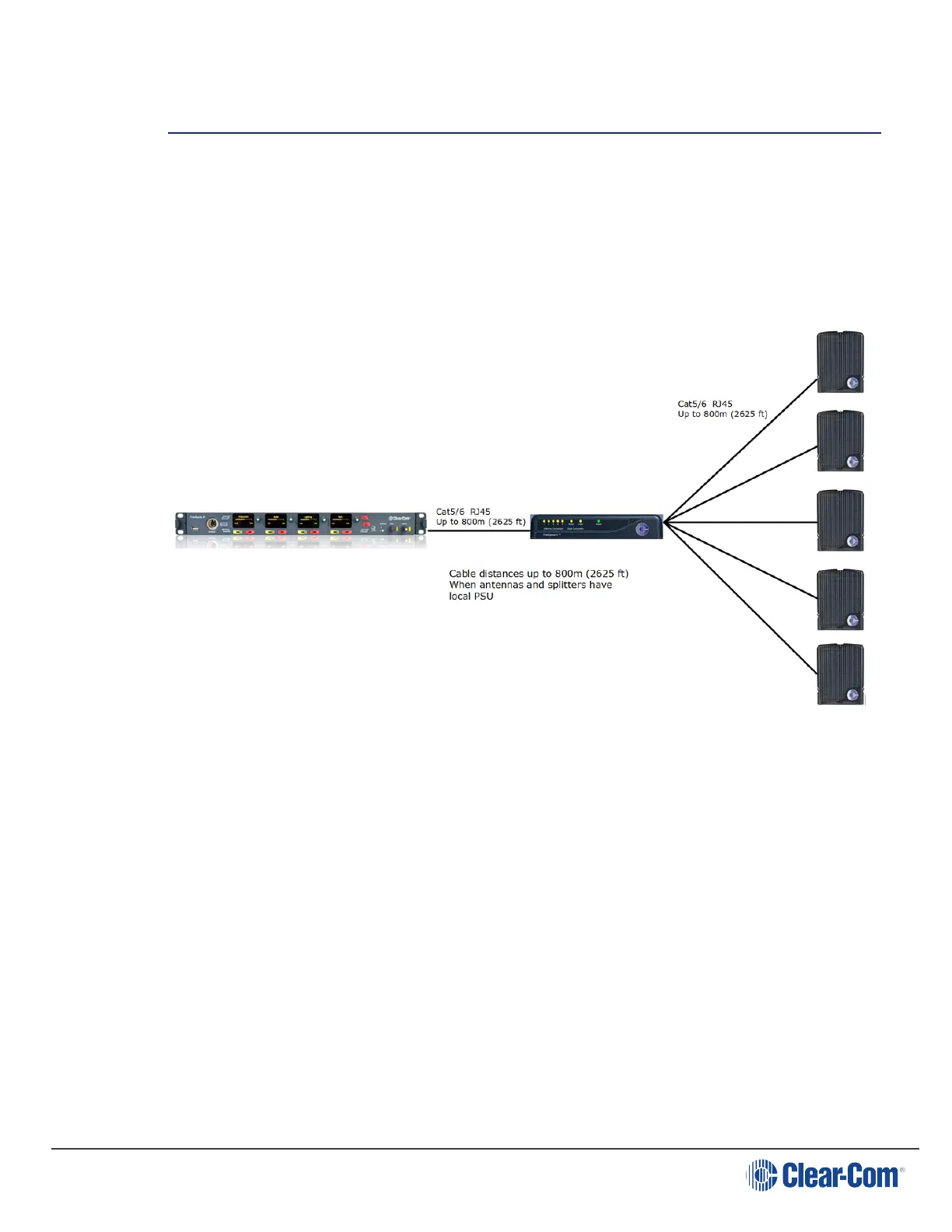

8.1 Configuration using a splitter with Cat 5/6 RJ45 connection
Page 88
