User Guide| FreeSpeak II for Eclipse HX
7 Operating the FS II Transceiver
This chapter describes the FS II Transceiver that connects to an E-Que card in the matrix. For
information about the FreeSpeak II IP Transceiver, see Operating the FS II IP Transceiver
(IPT) on page 49.
The FS II transceivers form the transmission link between the FS II beltpacks and the matrix. It has
internal omnidirectional (all directions/circular coverage) transceivers. Multiple units are used to
support the beltpacks and to create larger, customized coverage areas. Each transceiver is
connected to the E-Que card on the matrix, either directly or via a PD2203 splitter.
The unit has two methods of fixing:
l Three screw points for mounting on a flat surface.
l Two microphone stand connectors, 3/8 in and 5/8 in.
7.1 IP rating (Protection Marking)
The transceiver has an IP rating of IP53 so it can be mounted outside and will be resistant to
weather conditions.

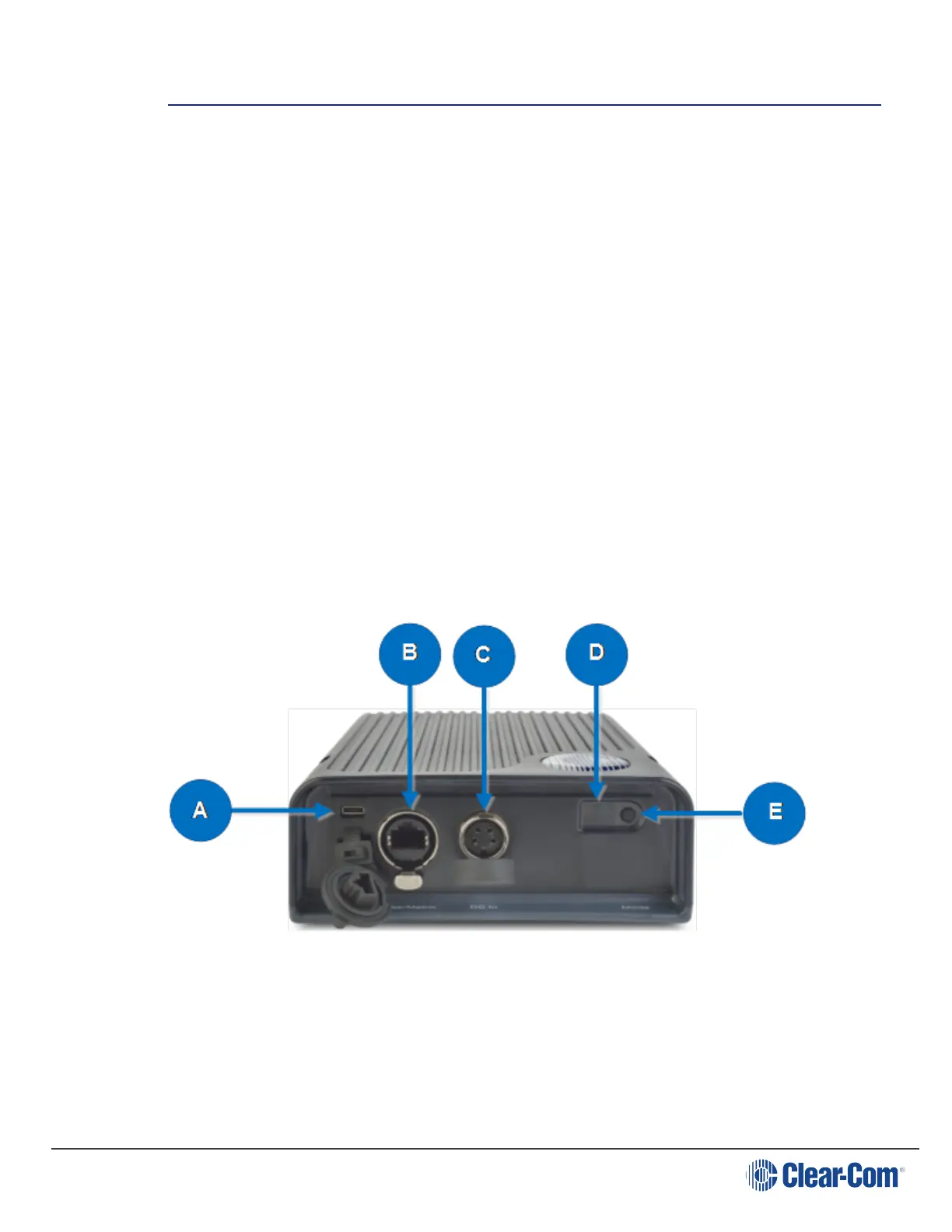

7.2 FS II transceiver connector panel
