User Guide| FreeSpeak II for Eclipse HX
When at least one beltpack has been allocated to the card, you will see a Beltpacks button
appear under Hardware. Click this button to configure beltpacks in the usual way. (Registration
and Roles).
6.10 Adding transceivers
When at least one beltpack has been allocated to the card, you will see a Transceivers button
appear under Hardware. Click this button to add and remove IP transceivers.
Two methods can be used for adding transcievers;
1. Offline configuration
2. Online configuration (the Discovery method).
6.10.1 Offline configuration

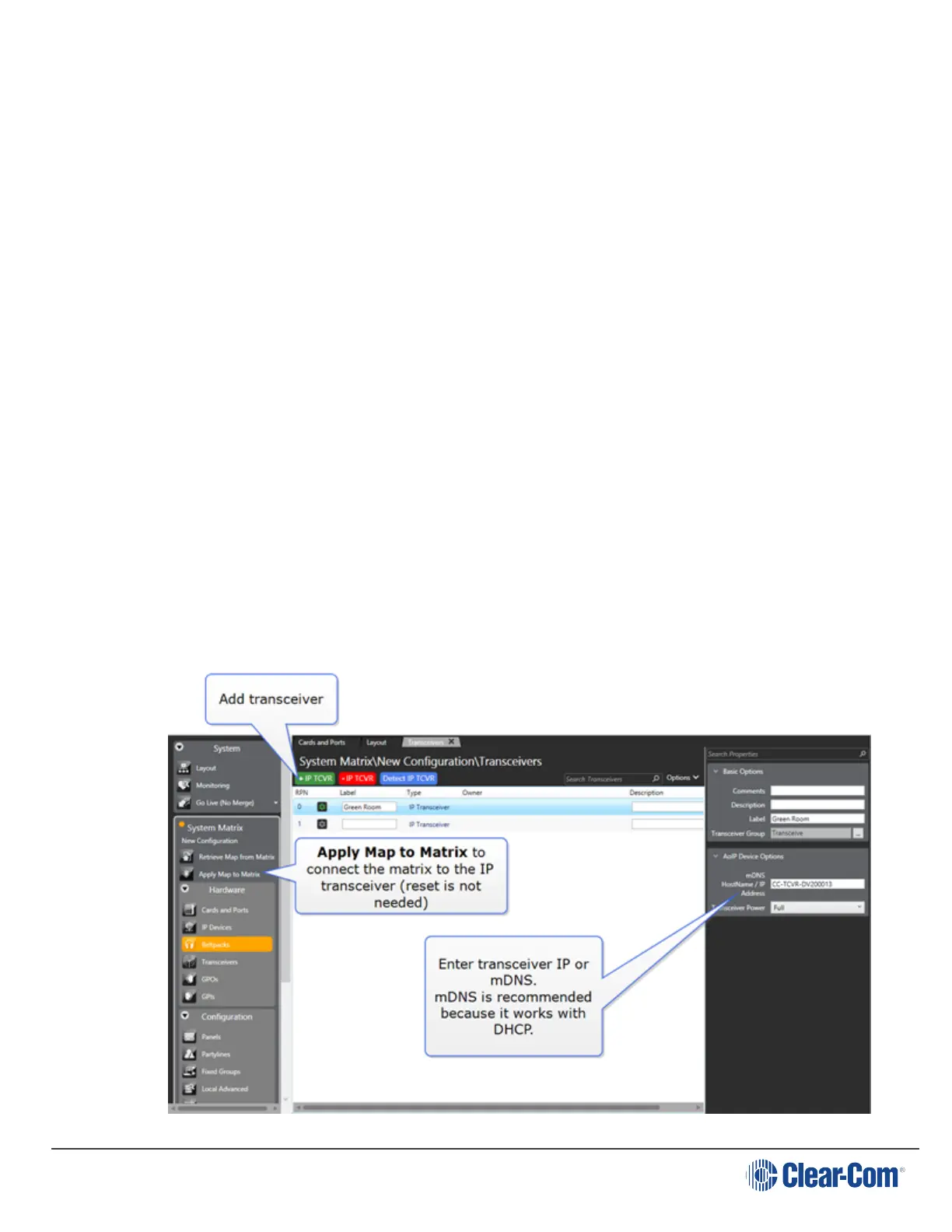

Use the + IP TCVR button to add transceivers to your configuration (offline configuration).
To connect the matrix and the transceiver, input the transceiver mDNS Hostname or IP address
into transceiver Properties and click Apply Map to Matrix.
Note: The mDNS Hostname is on the label on the back of the Transceiver.
Note: Using mDNS hostname means that even if the IP Address is changed, the matrix will
automatically re-connect with the new IP without an Apply Changes being required.
Use the - IP TCVR button to remove transceivers from your configuration, then Apply Changes.
Page 60
