User Guide| FreeSpeak II for Eclipse HX
Note: When using Fiber, you must install Fiber modules. See link below.
Note: When using the splitter with third party routing devices, transceiver synchronisation data is not
passed. In this case, you need to set the splitter to 'local synch' mode. This is done by setting the
splitter dip-switch no. 6 to OFF.
For more information, see:
l Install Fiber modules (parts # HLI-SMFO, HLI-MMFO) on page 92
l Printable Splitter Quick Start Guide.pdf

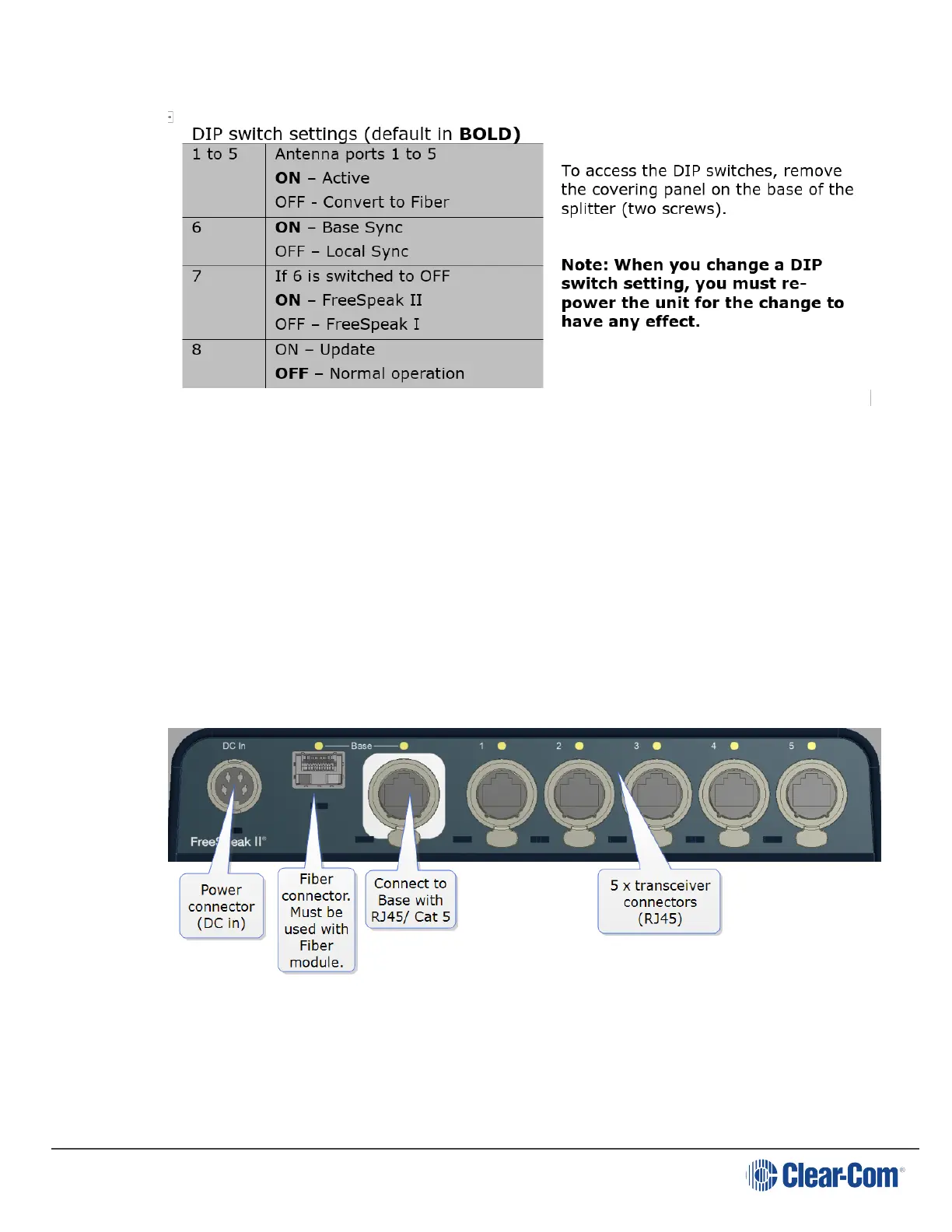

8.3 Splitter (FSII-SPL) rear connectors
See also:
Splitter (FSII-SPL) front panel on page 91
Using the FreeSpeak II Base splitter (FSII-SPL) on page 88
Page 90
