User Guide| FreeSpeak II for Eclipse HX
8.5.1 Install Fiber modules (parts # HLI-SMFO, HLI-MMFO)

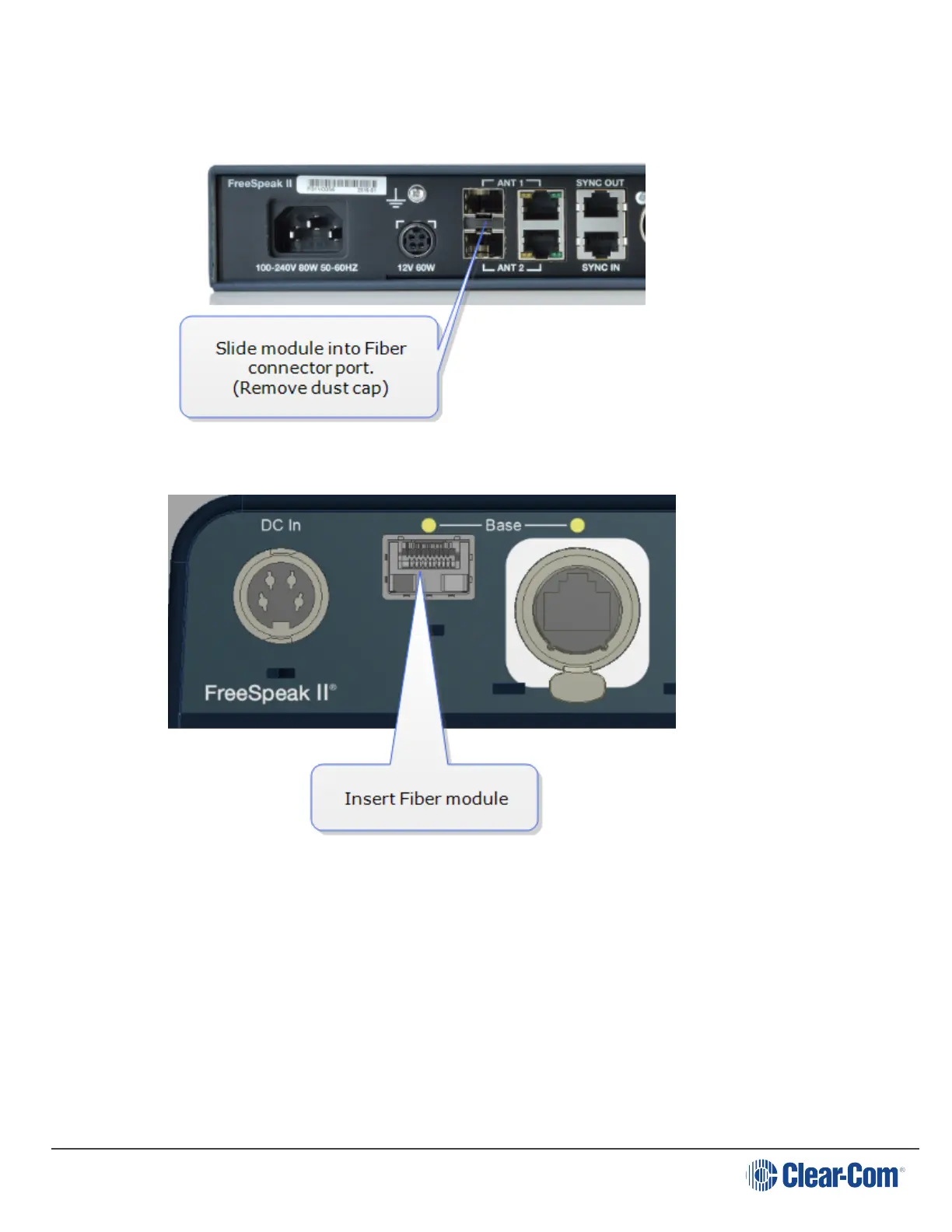

Install Base Station Fiber module.
Install splitter Fiber module.
Once the modules are installed, the Base Station and the splitter can be cabled with the correct
Fiber cable (single mode or multi-mode depending on existing cabling). You will see the Base
Connection indicator on the front of the splitter change from RJ45 to Fiber.
You must also set the transceiver port to Fiber in the Core Configuration Manager. Navigate to
Device>Station>Transceiver ports.
Page 92
