User Guide| FreeSpeak II for Eclipse HX

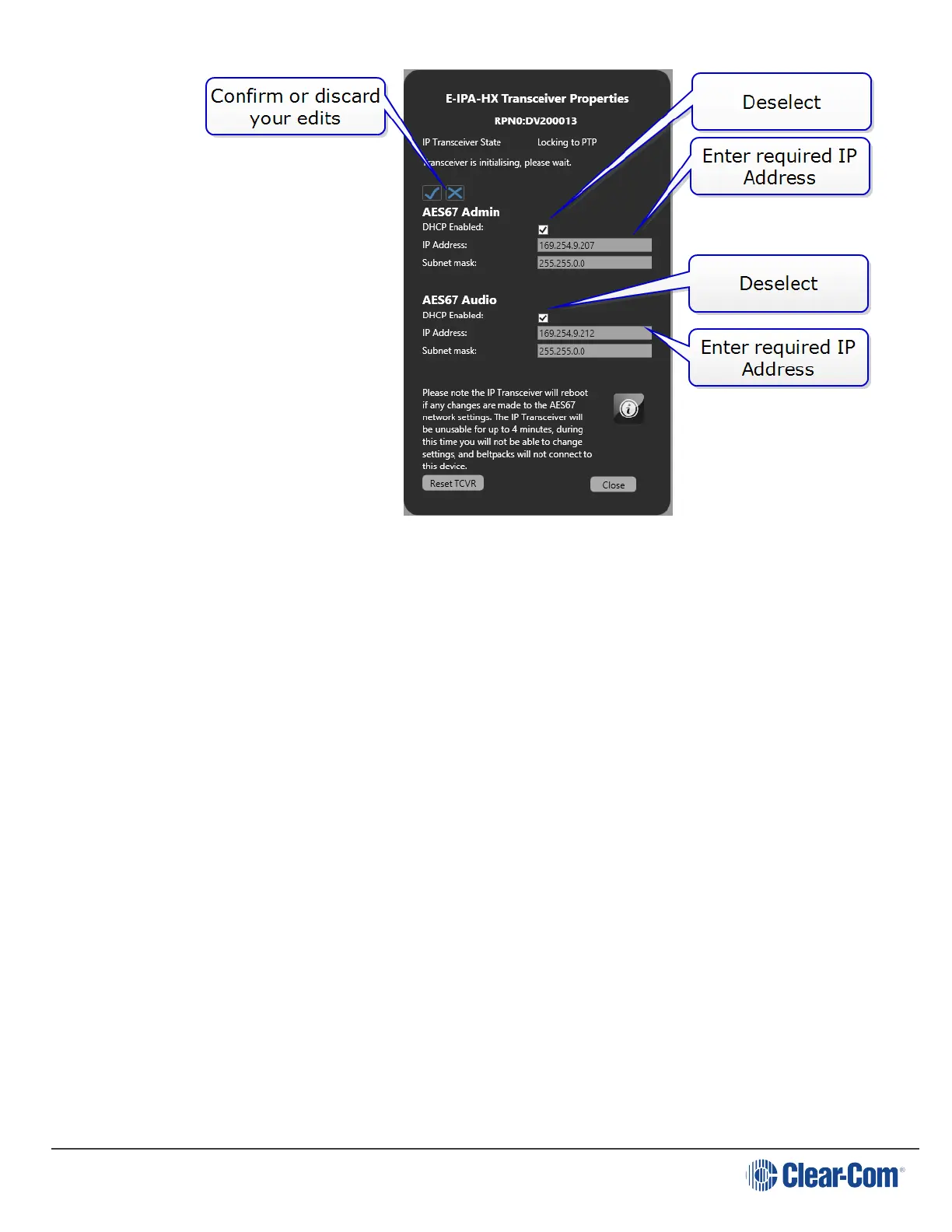

9. Click the tick or cross icon to accept or discard changes.
10. Click Close.
11. Click Apply Map to Matrix.
6.11 Powering the transceiver
The transceivers can use:
l Power over Ethernet (PoE). Connect to LAN 1 RJ45.
Note: The transceiver is a Class 3 PoE device.
l Local power. Use the supplied power supply.
l USB power from a USB battery pack. For standalone mode, this is 3 A, 5V.
6.11.1 Power redundancy
You can simultaneously power the IPT using a local power supply and PoE. In this case, the
following applies:
l If the IPT is using a local power supply, adding a PoE connection causes no power
interruption.
l If the IPT is using a PoE connection, adding a local power supply interrupts the power
supply for 1 to 2 seconds.
Page 65
