User Guide| FreeSpeak II for Eclipse HX

Note: The IP Transceiver must be connected.

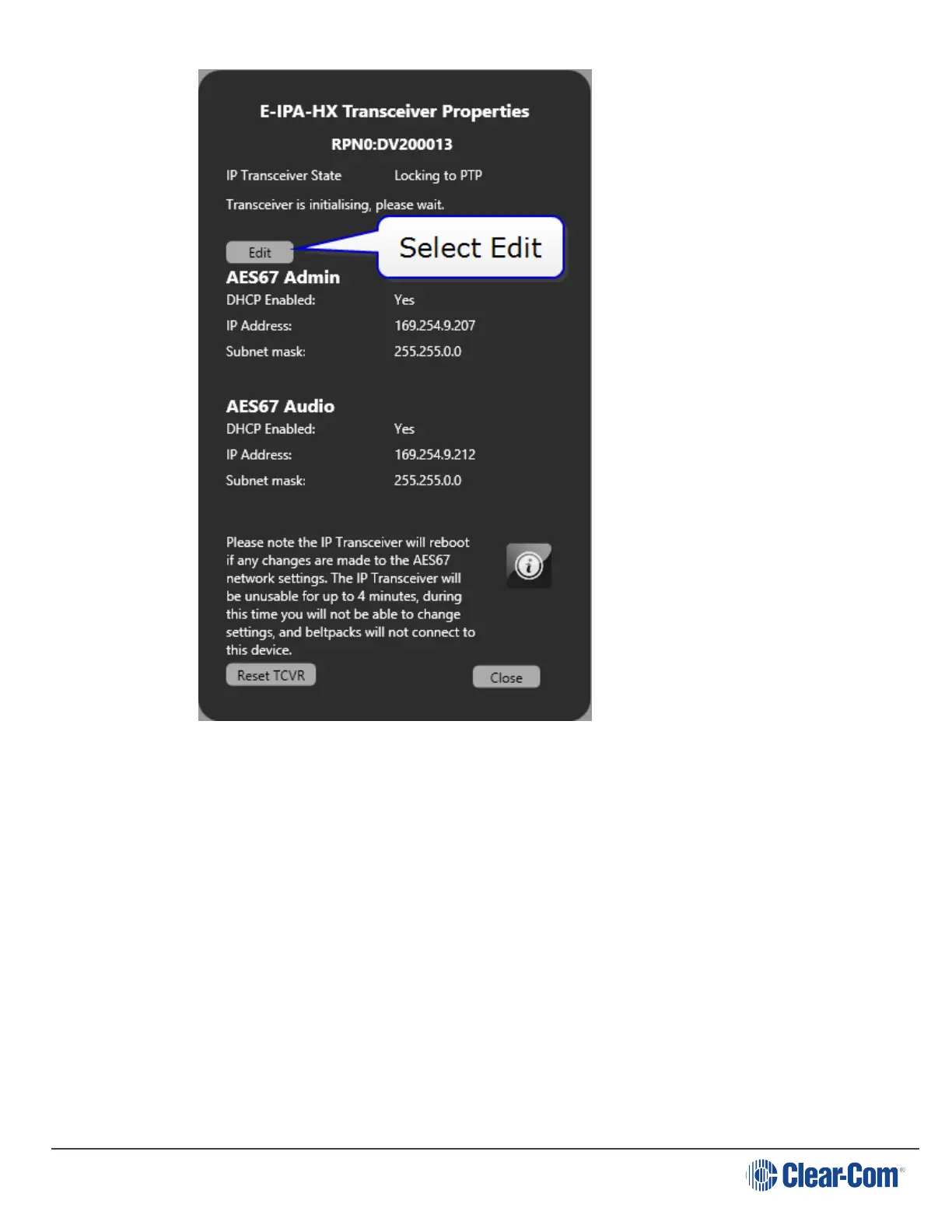

8. Enter the required static IP addresses for AES67 Admin and AES67 Audio.

Note: You cannot set static IP addresses that are within the Link Local range (169.254.0.0 to

169.254.255.255)

Page 64
