User Guide| FreeSpeak II for Eclipse HX
6.10.2 Online configuration

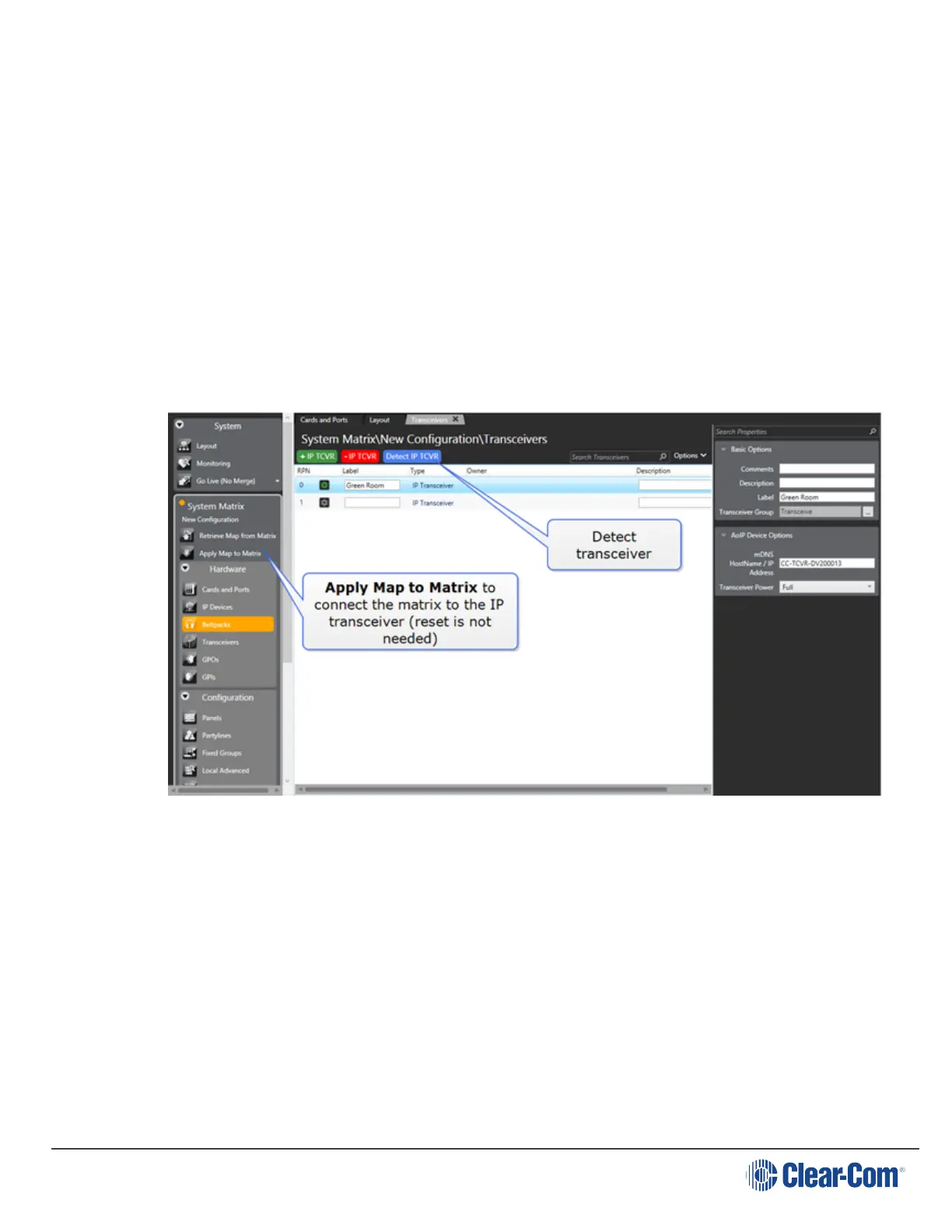

Use Detect IP TCVR to find the IPTs on the network (the AES67 interface of the E-IPA-HX card
and the IPTs must be on the same network, and the EHX software must be on the same network
as the IPA Admin port). By default, the E-IPA-HX is DHCP enabled, and the IPT is also by default
in DHCP mode.
Note: The Detect IP TCVR feature works if the IPTs are not on the same subnet, but connected to the
same network, as the AES67 interface on the E-IPA-HX card. However, for connection between
the transceiver and the card, the devices must be on the same subnet.
Note: If you reset an IPT to default settings, the device reverts to DHCP. To reset the IPT, press and
hold the Mode button on the transceiver base until the status light turns red (approx 12 seconds).
Page 61
