5 Using the FreeSpeak II Splitter (FSII-SPL)
5.1 Introduction
The FreeSpeak II Base antenna splitter is a device that connects up to 5
antennas to a FreeSpeak Base (both FreeSpeak I and FreeSpeak II, 1.9 and
2.4 systems) or an Eclipse matrix. Using the splitter, audio can be routed
from the Base to antennas either via Cat5/6 Ethernet cable (RJ45) or a Fiber
connection.

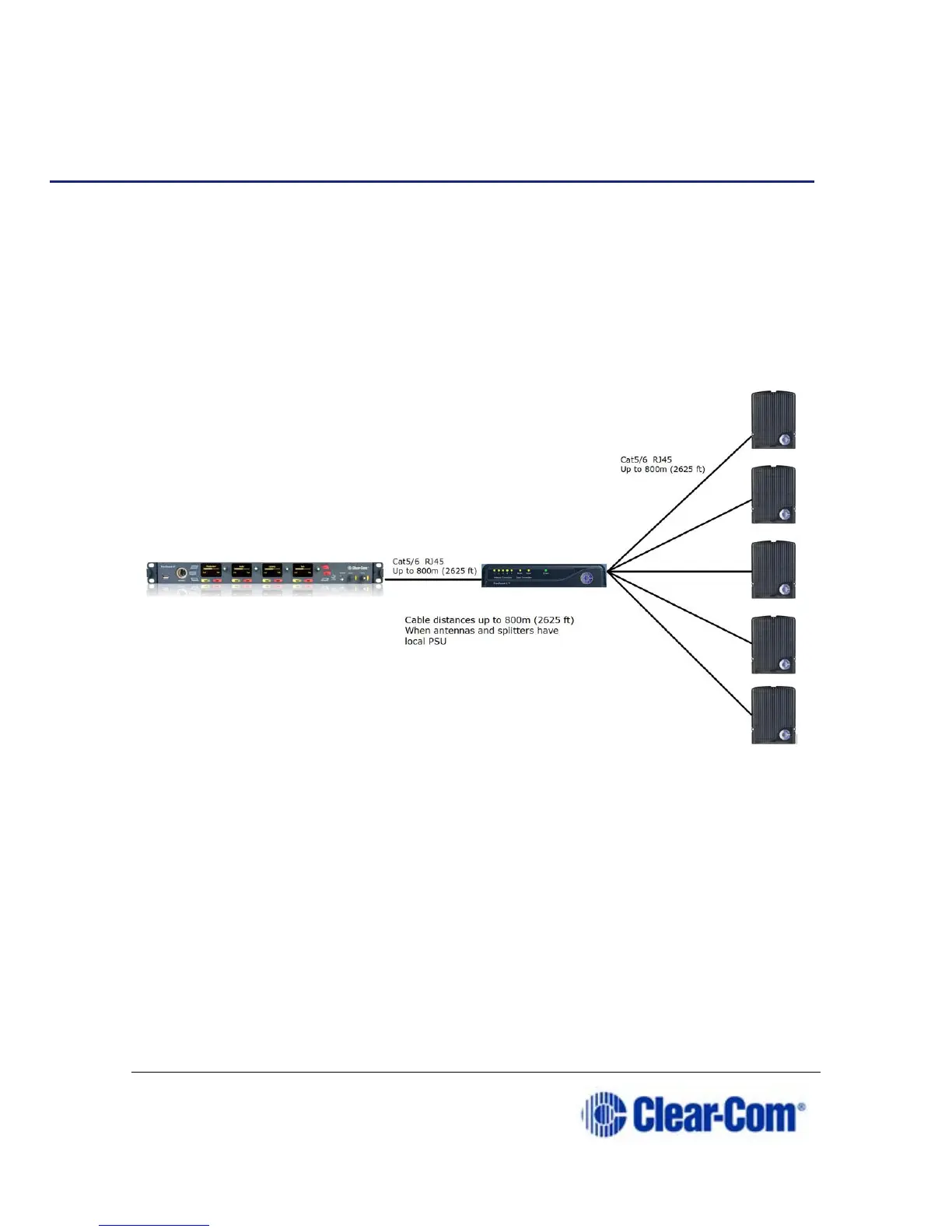

Using a splitter with Cat5/6 RJ45 connection
Using a splitter with Fiber connection.
