2 Using the Base Station
2.1 About the Base Station
The FreeSpeak II Base Station routes communication to and from wireless
beltpacks. It provides a control point for audio and allows the user to
configure the system, either from the front panel menus or using the online
configuration manager.
• Press Menu button to configure from the Base.

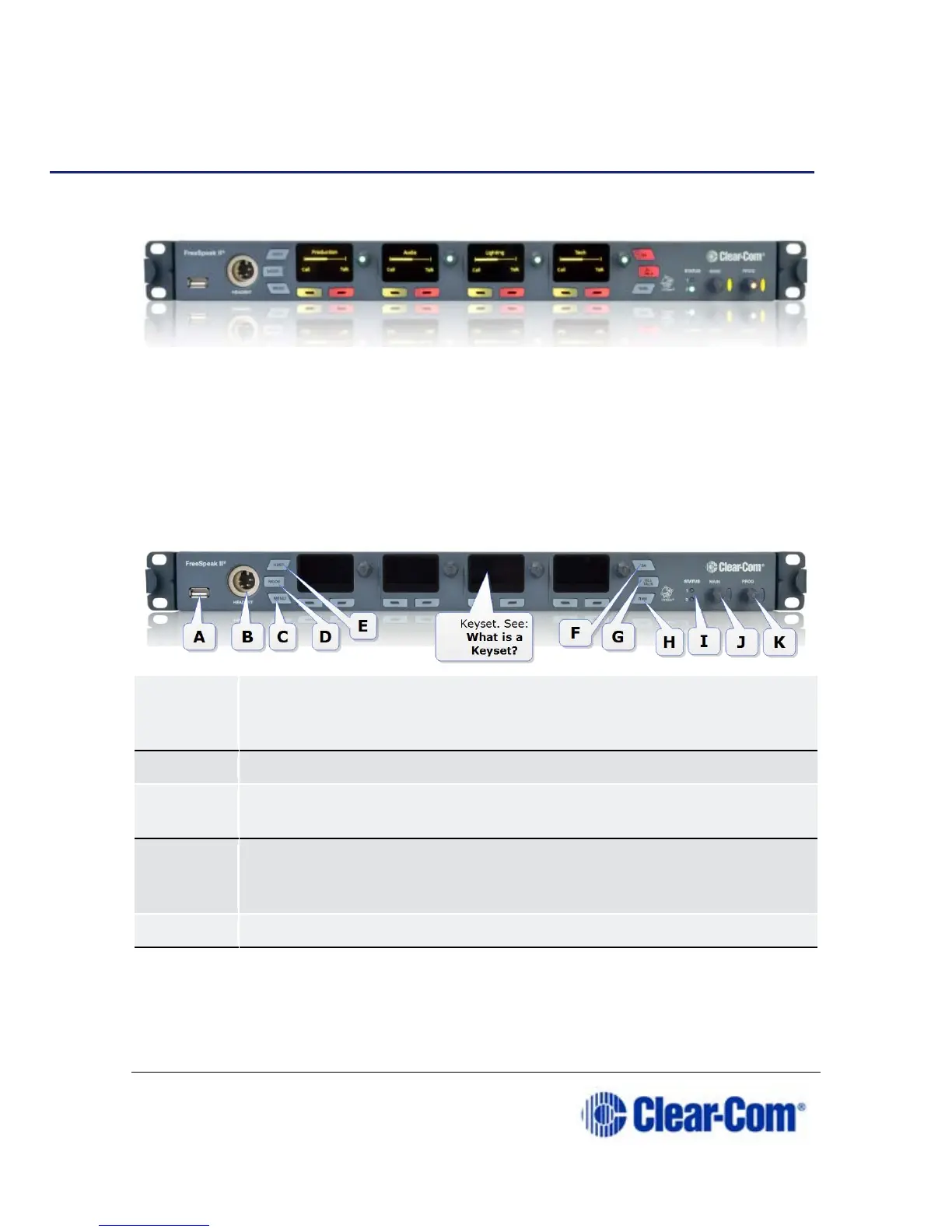

2.2 Base Station front panel
A
USB port. Use when registering beltpacks to the Base Station.
Also use when upgrading device or saving/restoring system
settings.
B
Base headset connector (4-pin XLR female).
C
Menu button. Push to enter menu mode and control system
settings. Push again to exit menu mode, or leave to time-out.
D
Mode button. Use to view antenna performance in base menu
screens. Toggle between diagnostic view and normal keyset
view.
E
Push to toggle headset microphone on and off.
