Page 40 399G169 Rev B 27 April 2016

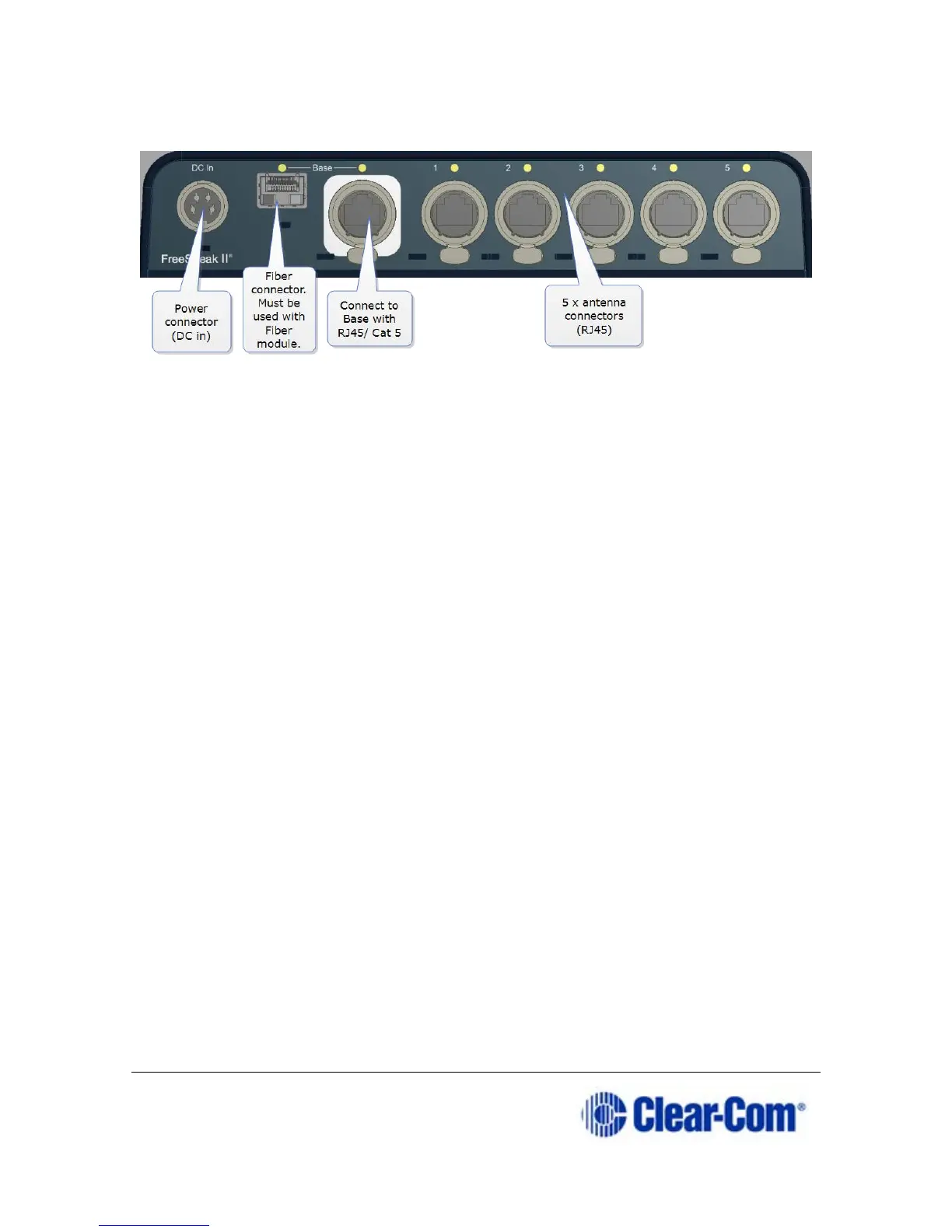

5.3 Splitter rear connectors
5.4 Splitter software version
Splitter software is not usually user upgradable, but if necessary you can find
out the splitter software version (usually for system diagnostic purposes) by
connecting to the splitter with a PC and using a serial console emulator such
as Tera Term.
1) Remove the covering panel (two screws) on the base of the splitter to
access a USB (micro) port next to the dip switch settings.
2) Connect the splitter to a PC using a USB A to micro B cable.
3) Allow windows to install a USB com port driver (this should be
automatic).
4) Using a serial console emulator (such as Tera Term), input serial
console settings.
To Next Page
